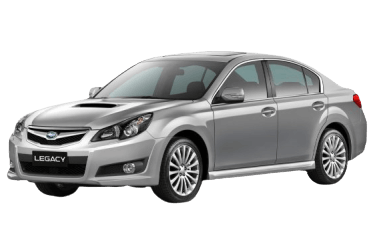

The history of the Subaru Legacy began in 1989, and the fifth generation of the car hit the assembly lines of Fuji Heavy Industries (FHI) in 2009. Initially, the Legacy model was presented on the Russian market in two body styles - a sedan and a station wagon, but back in 2007 Subaru decided to abandon the production of the Legacy Wagon (station wagon) in foreign markets due to the presence of a classmate Outback in the lineup.
The power supply circuits of the Japanese car are protected by fuses. The elements are installed in blocks that are located in the engine compartment and in the passenger compartment. Considered diagrams Subaru Legacy 5th generation 2009, 2010, 2011, 2012, 2013, 2014, 2015 model year, as well as Subaru Outback 4th generation 2009 - 2015.
In the engine compartment
Fuse box located on the left side of the engine compartment.
General form.
| Diagram | ||
|---|---|---|
|
||
| No. | Description of fuses | A |
| A | Main fuse (models with petrol engine) | |
| 1 | Continuously variable transmission control unit | 7.5 |
| 2 | Horn (right side) | 7.5 |
| 3 | Horn (center) | 7.5 |
| 4 | Low beam headlight bulb (right side) | 15 |
| 5 | Low beam headlamp (left side) | 15 |
| 6 | Fuel pump | 20 |
| 7 | Headlamp High Beam Lamp (Left Side) | 10 |
| 8 | Headlamp High Beam Lamp (Right Side) | 10 |
| 9 | Continuously variable transmission control unit | 20 |
| 10 | Generator | 7.5 |
| 11 | Electric interior heater (diesel models) | 30 |
| 11 | EyeSight System (Models with EyeSight System) | 10 |
| 12 | Sunroof | 20 |
| 13 | The engine control unit | 7.5 |
| 14 | 15 | |
| 15 | Ignition coil | 15 |
| 16 | The engine control unit | 15 |
| 17 | 15 | |
| 18 | Automatic transmission control unit | 10 |
| 19 | Lighting | 10 |
| 20 | Rear combination lamp | 10 |
| 21 | Direction indicators and hazard warning lights (central control unit) | 15 |
| 22 | Door locks (central control unit) | 20 |
| 23 |
|
15 |
| 24 | Windshield washer | 10 |
| 25 | Windshield wiper | 30 |
| 26 |
|
25 |
| 27 | Secondary Air Injection Valve (EJ204 Models) | 10 |
| 28 | Interior fan | 15 |
| 29 | Interior fan | 15 |
| 30 | Audio system | 25 |
| 31 | Auxiliary fan | 25 |
| 32 | Main fan | 25 |
| 33 | ABS / VDC control unit | 30 |
| 34 | Glow plugs (diesel models) | 7.5 |
| 35 | Fog lamp (right side) | 10 |
| 36 | Fog lamp (left side) | 10 |
| 37 | Back-up circuit (central control unit) | 20 |
| Relay modules | |
|
|
| 1 | High beam headlamps |
| 2 | Heated rear window |
| 3 | low beam headlamps |
| 4 | A / C Compressor Electromagnetic Clutch |
| 5 | Power windows |
| 6 | Windshield wiper |
| 7 | Fog lights |
| 8 | Horn relay |
| 9 | parking lights |
In the passenger compartment
Fuse box located at the bottom of the dashboard on the driver's side, behind the protective cover.
Photo is an example of execution.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| 1 |
|
15 |
| 2 | Rear power window (left side) | 20 |
| 3 | Power window (driver's side) | 20 |
| 4 |
|
7.5 |
| 5 | Instrument cluster | 7.5 |
| 6 | Rearview mirror remote control drive | 7.5 |
| 7 | Central control unit | 7.5 |
| 8 | Stop lights | 15 |
| 9 | Seat heating relay | 15 |
| 10 | Power supply (battery) | 7.5 |
| 11 | Direction indicator control unit | 7.5 |
| 12 |
|
15 |
| 13 | Power Outlet | 20 |
| 14 | Reserve circuit | 10 |
| 15 | Rear power window (right side) | 20 |
| 16 | Reserve | - |
| 17 | Windshield wiper de-icer | 15 |
| 18 | Reversing light | 7.5 |
| 19 |
|
7.5 |
| 20 |
|
10 |
| 21 | Starter relay | 7.5 |
| 22 | Air conditioner | 15 |
| 23 | Reserve | - |
| 24 |
|
15 |
| 25 | Airbag system | 15 |
| 26 | Main radiator fan relay | 7.5 |
| 27 | Power window relay | 30 |
| 28 | Reserve | - |
| 29 | Power window (passenger side) | 20 |
| 30 | Reserve | - |
| 31 | Automatic air conditioner control unit | 7.5 |
| 32 | Steering column lock control unit | 7.5 |
| 33 |
|
7.5 |
