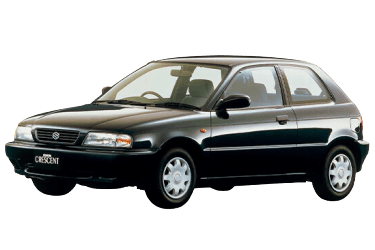

Suzuki Baleno was produced in 1995, 1996, 1997, 1998, 1999, 2000, 2001 and 2002. And in India until 2007. Also known as Cultus / Esteem. Already in 2015, production of the second generation of Suzuki Baleno began. In our article we will show the locations of the fuse and relay blocks for the first generation of Suzuki Baleno (Suzuki kultus), their diagrams and a description of the purpose of the elements. Will mark the cigarette lighter fuse.
The fuse designation may differ from the one shown. Check it with your diagrams posted on the block cover.
In the engine compartment
It is located on the left side next to the battery.
| Diagram | |
|---|---|
|
|
| № | Description |
| 1 | ABS relay |
| 2 | Horn relay |
| 3 | Cooling fan motor relay |
| 4 | Fuel pump relay |
| 5 | Selector lever lock relay |
| 6 | A / C condenser fan motor relay |
| 7 | ABS pump relay |
| 8 | Relay, electronic engine control unit |
| 9 | Air conditioning compressor electromagnetic clutch relay |
| 10 | Tailgate relay |
| 11 | Diagnostic connector (DLC) 2 |
| 12 | Diagnostic connector (DLC) 1 |
| F1 | (80A) Fuse link - Battery power supply |
| F2 | (60A) Fuse-link - headlight, fuel injection and horn fuses |
| F3 | (60A) Fuse link - Powered by ignition switch |
| F4 | (60A) Fuse - ABS relay |
| F5 | (30A) Fuse - cooling fan relay |
| F6 | (60A) Fusible link - air conditioner |
| F7 | (15A) Fuel injection system |
| F8 | (20A) Interior lamps |
| F9 | (15A) LH headlamp |
| F10 | (15A) RH headlamp |
| F11 | (15A) Horn |
| F12 | (10A) Rear left side marker |
| F13 | (10A) Right tailgate |
| F14 | (10A) Instrument cluster illumination |
| F15 | (15A) Air conditioner |
In the passenger compartment
Located under the dashboard on the driver's side.
General view.
| Diagram | |
|---|---|
|
|
| № | Legend |
| 1 | Rear fog lamp relay |
| 2 | Fog lamp relay |
| 3 | Alarm relay |
| 4 | Turn signal interrupter relay |
| 5 | Light warning unit |
| F1 | 15A Reversing lights |
| F2 | 15A Heated rear window |
| F3 | 10A Ignition switch |
| F4 | 20A Stop lamps |
| F5 | 15A Fog lamps |
| F6 | 15A / 20A Optional equipment, cigarette lighter fuse |
| F7 | 15A Central door locking |
| F8 | 15A Washers |
| F9 | 20A Spare |
| F10 | 15A Spare |
| F11 | 15A SRS system |
| F12 | 30A Power windows |
| F13 | Tubular fuse |
| The fuse number F6 is responsible for the Suzuki Baleno (Cultus) cigarette lighter. | |
