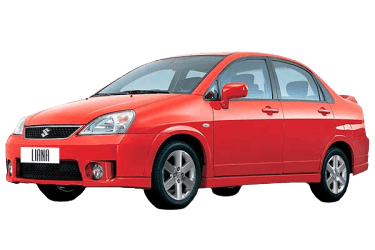

Suzuki Liana was produced in 2001, 2002, 2003, 2004, 2005, 2006, 2007 and 2008 and has been delivered worldwide. Also known as Aerio. In our publication you will find a description of the Suzuki Liana (aerio) fuse blocks and relays, the location of the blocks, their photos and diagrams. The fuse responsible for the “Cigarette lighter” is highlighted in bold.
The assignment of elements in the fuse and relay boxes of Suzuki Liana and Suzuki Aerio may differ from the one shown and depends on the year of manufacture, country of delivery and the level of equipment of your car.
In the engine compartment
Fuse box located next to the battery, under a protective cover, on which the current diagram will be applied.
| Diagram | |
|---|---|
|
|
| № | Descripion |
| 1 | 80A Battery, Alternator, All Circuits |
| 2 | 60A Ignition switch |
| 3 | 60A Fuse Box, Engine Compartment Fuse Box |
| 4 | 60A ABS. Drive and Control Unit |
| 5 | 30A Fan relay |
| 6 | 15A Instrument cluster, Headlight - right headlight (R) |
| 7 | 15A Head light (Headlight) - left headlight (L) |
| 8 | 30A Radiator fan control relay # 1 Radiator fan control relay # 2 |
| 9 | 20A Compressor relay, A / C fan relay |
| 10 | 15A Main relay |
| 11 | 15A Brake light switch |
Separately, at the battery terminal, there can be a main distribution fuse.
In the passenger compartment
Fuse box located under the dashboard on the driver's side, behind the protective cover.
Photo - example.
| Diagram | |
|---|---|
|
|
| № | Legend |
| 12 | 10A Compressor Relay, Air Conditioning Fan Relay, Heated Mirror Switch, Fan Motor Relay, Fan Motor Relay (Hi) |
| 13 | 15A Heated seat |
| 14 | 20A Rear window heating switch (station wagon) or Rear window heating relay |
| 15 | 15A ECM, Data connector, Instrument cluster, Spotlights, Interior light, Trunk lighting, Stereo, TCM |
| 16 | 10A Rear Fog Lamp, Rear Fog Lamp Switch, Rear Fog Lamp Controller |
| 17 | 10A Siren |
| 18 | 15A Spare |
| 19 | 10А Relay H / T (Headlight / Tail) or Marker lamps (Tail), illumination of devices and license plates |
| 20 | 20A Central locking |
| 21 | Spare |
| 22 | 15A Electronic control unit SRS |
| 23 | 15A Alternator, ignition coils |
| 24 | 10A Door Lock Controller, Emergency Light Switch, Back-up Light Switch, Gear Shift Sensor, Handle Mode, Mode Control Switch |
| 25 | 15A Wipers, Windshield wiper motor, Headlamp position actuator (L), Headlight position actuator (R), Headlight position switch, Switch combination, Rear wiper relay, Rear wiper motor |
| 26 | 10A ABS electronic control unit |
| 27 | 10A Instrument cluster |
| 28 | 15A Cigarette lighter fuse, Mirror switch power supply, Radio, Antenna amplifier |
| 29 | 15A Auxiliary power connector |
Separately, outside the unit, under the panel there may be some relays: a rear window heating relay (green), a heater fan relay and others, as well as a fuse for power windows and a power steering control unit - at 30A.
