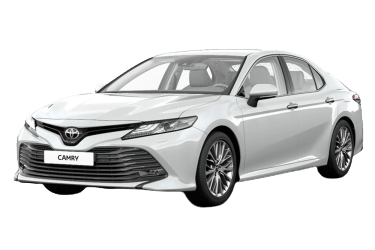

The ninth-generation Camry is built on the GA-K platform, a variant of the Toyota New Global Architecture (TNGA) modular platform, which also underpins the C-HR, Prius, and Auris. The front suspension features MacPherson struts, while the rear utilizes a multi-link setup. The exterior was designed by Ian Cartabiano at Toyota's California design studio. The interior dashboard architecture is driver-focused, featuring upgraded trim materials and improved control ergonomics compared to its predecessor.
This article provides detailed fuse box diagrams and locations for the ninth-generation Toyota Camry (XV70 chassis code; model years 2017, 2018, 2019, 2020, 2021, and 2022). It includes fuse panel location diagrams, layout photos, and circuit assignments. The fuse responsible for the “Cigarette lighter” is highlighted in bold.
In the engine compartment
The engine compartment fuse box is located on the left (driver) side of the engine bay, adjacent to the battery.
General view.
| Diagram | ||
|---|---|---|
|
||
| Code | Protected Component / Circuit | Rating (A) |
| H-LP LH | Automatic light control | 15 |
| Left headlamp | ||
| Immobilizer system (with Smart Key System) | ||
| Automatic light-off system | ||
| Smart Key System | ||
| Engine start system (with Smart Key System) | ||
| Steering column lock (with Smart Key System) | ||
| Wireless door lock control (with Smart Key System) | ||
| H-LP RH | Automatic headlight control unit | 15 |
| Right headlamp | ||
| Automatic light-off system | ||
| TV | Audio system | 15 |
| Rearview monitor system | ||
| Navigation system | ||
| Backup camera system | ||
| A / F HTR | Cruise control (2GR-FKS) | 20 |
| Electronic transmission & shift indicator (2GR-FKS) | ||
| Engine control system (2GR-FKS) | ||
| D INJ | Cruise control | 20 |
| Electronic transmission & shift indicator | ||
| Engine control system (2GR-FKS) | ||
| Engine control system (A25A-FKS) | ||
| EFI-MAIN 1 | Radiator cooling fan | 20 |
| Cruise control | ||
| Electronic transmission & shift indicator | ||
| Engine control system (2GR-FKS) | ||
| Engine control system (A25A-FKS) | ||
| EFI-MAIN 2 | Radiator cooling fan | 20 |
| Cruise control | ||
| Electronic transmission & shift indicator | ||
| Engine control system (2GR-FKS) | ||
| Engine control system (A25A-FKS) | ||
| IG2-MAIN | Ignition power supply | 20 |
| S / HTR MAIN | Seat heaters | 20 |
| VVT | Cruise control (A25A-FKS) | 20 |
| Electronic transmission & shift indicator (A25A-FKS) | ||
| Engine control system (A25A-FKS) | ||
| D / C CUT | Power supply (cut switch) | 25 |
| S / HTR MAIN | Seat heaters | 25 |
| ABS 2 | Anti-lock Brake System (ABS) | 30 |
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Hill-start Assist Control (HAC) | ||
| Vehicle Stability Control (VSC) | ||
| EFI-MAIN 3 | Cruise control (A25A-FKS) | 30 |
| Electronic transmission & shift indicator (A25A-FKS) | ||
| Engine control system (A25A-FKS) | ||
| ST 1 | Immobilizer system (with Smart Key System) | 30 |
| Smart Key System | ||
| Starter system | ||
| Steering column lock (with Smart Key System) | ||
| Wireless door lock control (with Smart Key System) | ||
| WIPER | Front windshield wipers and washer | 30 |
| ABS 1 | Anti-lock Brake System (ABS) | 50 |
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Hill-start Assist Control (HAC) | ||
| Vehicle Stability Control (VSC) | ||
| DEF | Heated side mirrors and rear window defogger | 50 |
| FAN 2 | Radiator cooling fan | 50 |
| HTR | Automatic climate control | 50 |
| Manual HVAC system | ||
| J / BB | Junction block power supply | 50 |
| FAN 1 | Radiator cooling fan | 60 |
| R / B 1 | Relay block No. 1 power supply | 60 |
| EPS | Anti-lock Brake System (ABS) | 80 |
| Brake Assist (BA) | ||
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Electric Power Steering (EPS) | ||
| Hill-start Assist Control (HAC) | ||
| Vehicle Stability Control (VSC) | ||
| ALT | Automatic light control | 120 |
| Charging system | ||
| Exterior lighting | ||
| Immobilizer system (with Smart Key System) | ||
| Automatic light-off system | ||
| Smart Key System | ||
| Engine start system (with Smart Key System) | ||
| Steering column lock (with Smart Key System) | ||
| Reverse lights | ||
| Wireless phone charger | ||
| Wireless door lock control (with Smart Key System) | ||
| Wireless door lock control (without Smart Key System) | ||
| EFI 2 | Radiator cooling fan | 7.5 |
| P / OUTLET 2 | Auxiliary power outlet No. 2 | 7.5 |
| A / C COMP | A/C compressor / Automatic climate control | 10 |
| DRL | Daytime Running Lights (DRL) | 10 |
| ECU-IG2 1 | Cruise control | 10 |
| Electronic transmission & shift indicator | ||
| Engine control system (2GR-FKS) | ||
| Engine control system (A25A-FKS) | ||
| ECU-IG2 2 | Immobilizer system (with Smart Key System) | 10 |
| Smart Key System | ||
| Engine start system (with Smart Key System) | ||
| Steering column lock (with Smart Key System) | ||
| Wireless door lock control (with Smart Key System) | ||
| EFI 1 | Cruise control | 10 |
| Electronic transmission & shift indicator | ||
| Engine control system | ||
| EFI2 | Radiator cooling fan | 10 |
| Cruise control (A25A-FKS) | ||
| Electronic transmission & shift indicator (A25A-FKS) | ||
| Engine control system (A25A-FKS) | ||
| EFI-MAIN 4 | Cruise control (A25A-FKS) | 10 |
| Electronic transmission & shift indicator (A25A-FKS) | ||
| Engine control system (A25A-FKS) | ||
| ETCS | Cruise control (2GR-FKS) | 10 |
| Electronic transmission & shift indicator (2GR-FKS) | ||
| Engine control system (2GR-FKS) | ||
| FUEL OPN | Fuel filler door opener | 10 |
| HORN | Horn | 10 |
| Immobilizer system | ||
| Smart Key System | ||
| Engine start system (with Smart Key System) | ||
| Steering column lock (with Smart Key System) | ||
| Theft-deterrent system | ||
| Wireless door lock control (with Smart Key System) | ||
| Wireless door lock control (without Smart Key System) | ||
| INJ | Cruise control | 10 |
| Electronic transmission & shift indicator | ||
| Engine control system | ||
| Ignition system | ||
| MIR HTR | Heated side mirrors | 10 |
| Heated rear window | ||
In the passenger compartment
The passenger compartment fuse box is located under the driver's side dashboard, behind a protective cover.
| Diagram | ||
|---|---|---|
|
||
| Code | Protected Component / Circuit | Rating (A) |
| PANEL | Instrument panel illumination | 5 |
| Reverse lights | ||
| Wireless phone charger | ||
| SFT LOCK - ACC | Shift lock control system | 5 |
| AM2 | Immobilizer system (with Smart Key System) | 7.5 |
| Smart Key Push-Start System | ||
| Wireless door lock control (with Smart Key System) | ||
| BKUP LP | Anti-lock Brake System (ABS) | 7.5 |
| Audio system | ||
| Rearview monitor system | ||
| Parking lights / Clearance lamps | ||
| Blind Spot Monitor (BSM) | ||
| Brake Assist (BA) | ||
| Instrument cluster (combination meter) | ||
| Cruise control (A25A-FKS) | ||
| Door lock control | ||
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Electronic transmission & shift indicator | ||
| Engine control system | ||
| Hill-start Assist Control (HAC) | ||
| Intuitive parking assist system | ||
| Navigation system | ||
| Panoramic View Monitor | ||
| Backup camera system | ||
| Vehicle Stability Control (VSC) | ||
| DCM | Data Communication Module (DCM / Telematics) | 7.5 |
| DOME | Dome lighting power supply | 7.5 |
| ECU-IG1 NO.3 | Automatic climate control | 7.5 |
| Auto-dimming electrochromic (EC) mirror | ||
| Cruise control | ||
| Dynamic Radar Cruise Control (DRCC) | ||
| Electronic transmission & shift indicator | ||
| Engine control system | ||
| Garage door opener (HomeLink) | ||
| Headlamps | ||
| Lane Departure Alert (LDA) | ||
| Heated side mirrors | ||
| Panoramic View Monitor | ||
| Pre-Collision System (PCS) | ||
| Rear window defogger | ||
| Power sunshade system | ||
| Power moonroof / sunroof | ||
| OBD | Data Link Connector 3 (OBD-II) | 7.5 |
| S-HORN | Immobilizer system (with Smart Key System) | 7.5 |
| Smart Key System | ||
| Theft-deterrent alarm horn | ||
| Wireless door lock control | ||
| STOP | Anti-lock Brake System (ABS) | 7.5 |
| Brake Assist (BA) | ||
| Cruise control | ||
| Dynamic Radar Cruise Control (DRCC) | ||
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Electronic transmission & shift indicator | ||
| Engine control system | ||
| Hill-start Assist Control (HAC) | ||
| Immobilizer system (with Smart Key System) | ||
| Pre-Collision System (PCS) | ||
| Shift lock control system | ||
| Smart Key System - Start / Steering Lock | ||
| Brake lights (stop lights) | ||
| Vehicle Stability Control (VSC) | ||
| Wireless door lock control (with Smart Key System) | ||
| TRUNK OPN | Immobilizer system (with Smart Key System) | 7.5 |
| Trunk release / Tailgate opener | ||
| Smart Key System | ||
| Engine start system (with Smart Key System) | ||
| Steering column lock (with Smart Key System) | ||
| Wireless door lock control | ||
| A / BAG-IG2 | Seat belt warning system | 10 |
| Supplemental Restraint System (SRS airbags) | ||
| DOME | Immobilizer system (with Smart Key System) | 10 |
| Interior dome lamps | ||
| Smart Key System | ||
| Engine start system (with Smart Key System) | ||
| Steering column lock (with Smart Key System) | ||
| Wireless door lock control (with Smart Key System) | ||
| Wireless door lock control (without Smart Key System) | ||
| ECU-B NO.2 | Anti-lock Brake System (ABS) | 10 |
| Audio system (with component amplifier) | ||
| Automatic climate control | ||
| Rearview monitor system (with component amplifier) | ||
| Brake Assist (BA) | ||
| Door lock control | ||
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Headlamps | ||
| Hill-start Assist Control (HAC) | ||
| Immobilizer system (with Smart Key System) | ||
| Manual HVAC system | ||
| Multiplex communication system (CAN bus) | ||
| Navigation system | ||
| Panoramic View Monitor | ||
| Power windows | ||
| Backup camera system (with component amplifier) | ||
| Smart Key System | ||
| Engine start system (with Smart Key System) | ||
| Steering column lock (with Smart Key System) | ||
| Tire Pressure Monitoring System (TPMS) | ||
| Vehicle Stability Control (VSC) | ||
| Wireless door lock control (with Smart Key System) | ||
| ECU-DCC NO.2 | Anti-lock Brake System (ABS) | 10 |
| Audio system amplifier | ||
| Automatic climate control | ||
| Auto-dimming rearview mirrors | ||
| S / HTR | Seat heaters | 10 |
| P / OUTLET NO.1 | Cigarette lighter socket | 15 |
| ECU-ACC | Anti-lock Brake System (ABS) | 5 |
| Audio system | ||
| Automatic climate control | ||
| Automatic light control | ||
| Rearview camera system | ||
| Parking lights / Clearance lamps | ||
| Blind Spot Monitor (BSM) | ||
| Brake Assist (BA) | ||
| Cruise control | ||
| Door lock control | ||
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Electronic transmission & shift indicator | ||
| Engine control system | ||
| Fuel filler door release | ||
| Headlamps | ||
| Hill-start Assist Control (HAC) | ||
| Exterior lighting | ||
| Immobilizer system (with Smart Key System) | ||
| Interior dome lamps | ||
| Parking sensors (Clearance sonar) | ||
| Key reminder system (without Smart Key System) | ||
| Automatic light-off system | ||
| Trunk release / Tailgate opener | ||
| Multiplex communication system (CAN bus) | ||
| Navigation system | ||
| Panoramic View Monitor | ||
| Auxiliary power outlet | ||
| Power windows | ||
| Power remote control mirrors | ||
| Data Communication Module (DCM / Telematics) | ||
| Seat belt warning system | ||
| Power moonroof / sunroof | ||
| Smart Key System | ||
| Supplemental Restraint System (SRS airbags) | ||
| Reverse lights | ||
| Theft-deterrent system | ||
| Tire Pressure Monitoring System (TPMS) | ||
| Vehicle Stability Control (VSC) | ||
| Wireless phone charger | ||
| Wireless door lock control | ||
| ECU-B NO.1 | Immobilizer system (without Smart Key System) | 5 |
| ECU-DCC NO.1 | Anti-lock Brake System (ABS) | 5 |
| Brake Assist (BA) | ||
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Hill-start Assist Control (HAC) | ||
| Vehicle Stability Control (VSC) | ||
| ECU-IG1 NO.1 | Shift lock control system | 5 |
| ECU-IG1 NO.2 | Anti-lock Brake System (ABS) | 5 |
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Hill-start Assist Control (HAC) | ||
| Headlight leveling system (PROF) | ||
| Vehicle Stability Control (VSC) | ||
| ECU-IG2 NO.3 | Anti-lock Brake System (ABS) | 5 |
| Brake Assist (BA) | ||
| Dynamic Radar Cruise Control (DRCC) | ||
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Electronic transmission & shift indicator | ||
| Engine control system | ||
| Hill-start Assist Control (HAC) | ||
| Immobilizer system (without Smart Key System) | ||
| Multiplex communication system (CAN bus) | ||
| Pre-Collision System (PCS) | ||
| Data Communication Module (DCM / Telematics) | ||
| Vehicle Stability Control (VSC) | ||
| EPS-IG1 | Anti-lock Brake System (ABS) | 5 |
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Electric Power Steering (EPS) | ||
| Hill-start Assist Control (HAC) | ||
| Vehicle Stability Control (VSC) | ||
| METER-IG2 | Anti-lock Brake System (ABS) | 5 |
| Audio system | ||
| Automatic climate control | ||
| Rearview monitor system | ||
| Blind Spot Monitor (BSM) | ||
| Brake Assist (BA) | ||
| Charging system | ||
| Instrument cluster (combination meter) | ||
| Dynamic Radar Cruise Control (DRCC) | ||
| Electronic Brakeforce Distribution (EBD) | ||
| Electric Parking Brake (EPB) | ||
| Electronic transmission & shift indicator | ||
| Engine control system (A25A-FKS) | ||
| Electric Power Steering (EPS) | ||
| Headlamps | ||
| Hill-start Assist Control (HAC) | ||
| Exterior lighting | ||
| Immobilizer system (without Smart Key System) | ||
| Intuitive parking assist system | ||
| Key reminder system (without Smart Key System) | ||
| Lane Departure Alert (LDA) | ||
| Manual HVAC system | ||
| Navigation system (with component amplifier) | ||
| Pre-Collision System (PCS) | ||
| Rearview monitor system (built-in amplifier) | ||
| Rearview monitor system (with component amplifier) | ||
| Power sunshade system | ||
| Data Communication Module (DCM / Telematics) | ||
| Seat belt warning system | ||
| Power moonroof / sunroof | ||
| Smart Key System | ||
| Supplemental Restraint System (SRS airbags) | ||
| Engine start system (with Smart Key System) | ||
| Steering column lock (with Smart Key System) | ||
| Reverse lights | ||
| Tire Pressure Monitoring System (TPMS) | ||
| Turn signals and hazard warning lights | ||
| Vehicle Stability Control (VSC) | ||
| Wireless door lock control unit | ||
