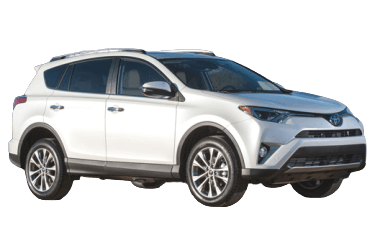

Fuses and relays Toyota RAV4 (XA40; 2013–2019)

Table of Contents

Most electrical circuits in the vehicle are protected by fuses. High-current components are connected via relays. Fuses and relays are installed in fuse boxes located in the passenger compartment and engine compartment.


This information applies to fourth-generation Toyota RAV4 (chassis code XA40; Toyota New MC platform) models (model years 2012–2019).

Engine Compartment


Component layout: 1. Fuse box; 2. Engine control module (ECM); 3. Glow plug control unit; 4. Alternator control unit; 5. From October 2015: Radiator fan control unit; 6. Headlamp washer relay; 7. Transmission control module (TCM); 8. Relay box; 9. Injector control unit; 10. Valvematic controller (continuously variable valve lift); 11. Brake actuator; 12. Glow plug relay; 13. From October 2015: Fuel heater relay

Main Fuse Box


The main fuse box is located near the battery.

Type 1


General view.

Diagram
No. Description A
1 2AR-FE: Multiport fuel injection system / sequential multiport fuel injection system, "EFI NO.1", "EFI NO.2" fuses 20
3ZR-FE, 3ZR-FAE: Multiport fuel injection system / sequential multiport fuel injection system, "EFI NO.1", "EFI NO.2" fuses 25
Diesel: Multiport fuel injection system / sequential multiport fuel injection system, transmission control module, "EFI NO.3" fuse 30
2 Trailer connector 30
3 Steering column lock 10
4 Air conditioning system, instrument cluster, Smart Entry & Start system, overhead console module 10
5 Instrument cluster 10
6
  • 2AR-FE: Mass air flow sensor, fuel pump, rear oxygen sensor
  • Diesel: "EFI NO.1", "EFI NO.2" fuses
 20
3ZR-FE, 3ZR-FAE: Multiport fuel injection system / sequential multiport fuel injection system 15
From October 2015: 2WW: Multiport fuel injection system / sequential multiport fuel injection system 7.5
7 Before October 2015: Starting system 20
From October 2015: Power liftgate, instrument cluster, double locking system, Smart Entry & Start system, front fog lamps, windshield wiper and washer, headlamps, engine immobilizer, interior lighting, power windows, rear fog lamp, seat belt warning, SRS airbag system, starting system, steering column lock, anti-theft system, tire pressure monitoring system (TPMS), wireless remote control 30
8 Starting system 30
9 Audio system 30
10 Multiport fuel injection system / sequential multiport fuel injection system 10
From October 2015: 2WW: Fuel pump 30
11 Before October 2015: Anti-theft system 10
From October 2015 (without telematics system): Stop & Start system 30
From October 2015: Telematics system 7.5
12 Multiport fuel injection system / sequential multiport fuel injection system, "METER", "IGN", "A/B" fuses 15
13 Starting system, "IG2" fuse 7.5
14 Battery current sensor, alternator 7.5
15 Horn 10
16 Diesel: Multiport fuel injection system / sequential multiport fuel injection system 25
From October 2015: 3ZR-FAE: Starting system 20
From October 2015: Anti-theft system 10
17 "DOME", "ECU-B NO.1", "RADIO" fuses 30
18 Windshield wiper switch, battery current sensor, multiport fuel injection system / sequential multiport fuel injection system 5
19
  • 3ZR-FE: Mass air flow sensor, VSV, ACIS VSV, rear oxygen sensor, multiport fuel injection system / sequential multiport fuel injection system
  • 3ZR-FAE: Multiport fuel injection system / sequential multiport fuel injection system
  • 2AR-FE: Mass air flow sensor, VSV, ACIS VSV; 1AD-FTV: Mass air flow sensor, oil control valve, EDU, fuel addition valve, EGR, Stop & Start system, glow plugs
  • 2AD-FTV, 2AD-FHV: EDU, fuel addition valve, EGR, mass air flow sensor, VNT E-VRV
 10
From October 2015: 2WW: Multiport fuel injection system / sequential multiport fuel injection system 7.5
20
  • 3ZR-FAE: Mass air flow sensor, VSV, ACIS VSV, rear oxygen sensor, Stop & Start system
  • 2AR-FE: Multiport fuel injection system / sequential multiport fuel injection system
  • 3ZR-FE, 2AD-FTV, 2AD-FHV: Mass air flow sensor
 10
From October 2015: 2WW: Multiport fuel injection system / sequential multiport fuel injection system 15
21 Left headlamp high beam, high beam indicator 10
22 Right headlamp high beam 10
23 Multiport fuel injection system / sequential multiport fuel injection system, transmission control module 7.5
From October 2015: 2WW: Multiport fuel injection system / sequential multiport fuel injection system 20
24 Empty -
25 -
26 Audio system 20
27 Body ECU, wireless remote control system, steering angle sensor, power door locks, clock, power liftgate, tire pressure monitoring system (TPMS) 10
28 Interior lights, luggage compartment light, personal lights 10
29
  • Before October 2015: Halogen headlamps: Left low beam, headlamp leveling system
  • From October 2015: Left low beam, headlamp leveling system
 10
Before October 2015: HID headlamps: Left low beam, headlamp leveling control unit 15
30 Before October 2015: Halogen headlamps: Right low beam; From October 2015: Right low beam 10
Before October 2015: HID headlamps: Right low beam 15
31 Empty -
32 Empty -
33 Empty -
34 Empty -
35 From October 2015: 2WW: Fuel heater 50
36 Stop & Start system 40
37 Valvematic system 30
From October 2015: 2WW: ABS, cruise control, Downhill Assist Control (DAC), Hill-start Assist Control (HAC), Stop & Start system, Panoramic View Monitor, radar cruise control, TRC, VSC 50
38 VSC, ABS 30
39 50
40 "H-LP RH-LO", "H-LP LH-LO", "H-LP RH-HI", "H-LP LH-HI" fuses 50
41 Glow plugs 80
42 Electric Power Steering (EPS) 80
43 Before October 2015: Gasoline models: "STOP", "S/ROOF", "AM1", "OBD", "D/L NO.2", "FOG RR", "D/L BACK", "P/OUTLET NO.1", "DOOR D", "DOOR R/R", "DOOR R/L", "WIP RR", "WSH", "GAUGE", "WIP FR", "SFT LOCK-ACC", "P/OUTLET NO.2", "ACC", "PANEL", "TAIL", "D/L NO.2", "EPS-IG", "ECU-IG NO.1", "ECU-IG NO.2", "HTR-IG", "S-HTR LH", "S-HTR RH", "IGN", "A/B", "METER", "ECU-IG NO.3" fuses 120
  • Before October 2015: Diesel, (3ZR-FAE from April 2015): ↓
  • From October 2015: Except 2WW: "ABS NO.1", "ABS NO.2", "RDI FAN", "FAN NO.1", "S/HTR R/L", "DEICER", "FOG FR", "S/HTR R/R", "CDS FAN", "FAN NO.2", "HTR", "STV HTR", "TOWING-ALT", "HWD NO.1", "HWD NO.2", "H-LP CLN", "DRL", "PTC HTR NO.1", "PTC HTR NO.2", "PTC HTR NO.3", "DEF", "NOISE FILTER", "STOP", "S/ROOF", "AM1", "OBD", "D/L NO.2", "FOG RR", "D/L BACK", "P/OUTLET NO.1", "DOOR D", "DOOR R/R", "DOOR R/L", "WIP RR", "WSH", "GAUGE", "WIP FR", "SFT LOCK-ACC", "P/OUTLET NO.2", "ACC", "PANEL", "TAIL", "D/L NO.2", "EPS-IG", "ECU-IG NO.1", "ECU-IG NO.2", "HTR-IG", "S-HTR LH", "S-HTR RH", "IGN", "A/B", "METER", "ECU-IG NO.3" fuses
 140
Relays
R1 Engine control module (EFI-MAIN NO.2)
R2 Ignition (IG2)
R3
  • Diesel: Electronic Driving Unit (EDU)
  • Gasoline: Fuel pump (C/OPN)
  • 2WW: Fuel pump (FUEL PMP)

R4
  • Before October 2015: Headlamps (H-LP)
  • From October 2015: Dimmer

R5 Engine control module
R6
  • Before October 2015: Dimmer
  • From October 2015: Except 2AR-FE: Headlamps (H-LP)
  • 2AR-FE: Headlamps / Daytime running lights (H-LP / DRL)


Type 2

Diagram.

No. Protected circuit A
1 Audio system 20
2 Body ECU, wireless remote control system, steering angle sensor, clock, power liftgate, tire pressure monitoring system (TPMS), driver position memory 10
3 Interior lights, personal lights, luggage compartment light, vanity mirror light 10
4 Empty -
5 Windshield wiper deicer 20
6 Empty -
7 Front fog lamps, fog lamp indicator 7.5
8 Audio system 30
9 Starting system 30
10 Multiport fuel injection system / sequential multiport fuel injection system, "EFI NO.1", "EFI NO.2" fuses 20
11 Empty -
12 Multiport fuel injection system / sequential multiport fuel injection system, "METER", "IGN", "A/B" fuses 15
13 Instrument cluster 10
14 Starting system, "IG2" fuse 7.5
15 Air conditioning system, instrument cluster, occupant detection system, Smart Entry & Start system 10
16 Steering column lock 10
17 "DOME", "ECU-B NO.1", "RADIO" fuses 30
18 Horn 10
19 Multiport fuel injection system / sequential multiport fuel injection system 10
20 Mass air flow sensor, fuel pump, rear oxygen sensor 20
21 Battery current sensor 7.5
22 Heated outside mirrors, multiport fuel injection system / sequential multiport fuel injection system 10
23 Mass air flow sensor, VSV, ACIS VSV 10
24 Multiport fuel injection system / sequential multiport fuel injection system 10
25 Left headlamp high beam, high beam indicator 10
26 Right headlamp high beam 10
27 Empty -
28 Left headlamp low beam 10
29 Right headlamp low beam 10
30 Radiator cooling fan 30
31 Air conditioning system 50
32 Daytime running lights (DRL), "H-LP RH-LO", "H-LP LH-LO", "H-LP RH-HI", "H-LP LH-HI" fuses 50
33 Auxiliary heater 30
34 Auxiliary heater 30
35 Rear window defogger, "MIR HTR" fuse 30
36 Vehicle stability control (VSC) 30
37 Radiator cooling fan 30
38 Vehicle stability control (VSC) 50
39 Electric Power Steering (EPS) 80
40 "ABS NO.1", "ABS NO.2", "PTC HTR NO.1", "PTC HTR NO.2", "DEICER", "HTR", "RDI FAN", "CDS FAN", "FOG FR", "DEF" fuses 120
41 Windshield wiper switch, rain sensor 5
42 Spare fuse 10
43 20
44 30
Relays
R1 Engine control module (EFI-MAIN NO.2)
R2 Ignition (IG2)
R3 Fuel pump (C/OPN)
R4 Jumper
R5 Headlamps (H-LP)
R6 Engine control module (EFI-MAIN NO.1)
R7 Rear window defogger (DEF)
M1 Daytime running lights (DRL) module

Auxiliary Fuse Box


An auxiliary fuse box is located on the left side of the engine compartment, near the windshield washer reservoir. It is available in several configurations.

Type 1

Diagram.

No. Function
R1 Front fog lamps
R2 A/C compressor clutch
R3 Auxiliary heater
R4 Empty
R5 Horn
R6 Radiator cooling fan
R7 Auxiliary heater
R8 Radiator cooling fan
R9 Starter
R10 Radiator cooling fan

Type 2

Diagram.

No. Description A
1 Daytime running lights (DRL) 5
2 Trailer connector 30
3 Front fog lamps, fog lamp indicator 7.5
4 Noise filter 10
5 Auxiliary heater 25
6 From October 2015: Rear seat heater 10
7 Windshield wiper deicer 20
From October 2015: Rear seat heater 10
8 From October 2015: Diesel: Radiator cooling fan
9 Empty -
10 From October 2015: Diesel: Radiator cooling fan 5
11 Empty -
12 Empty -
13 Heated outside mirrors, multiport fuel injection system / sequential multiport fuel injection system 10
14 Empty -
15 Empty -
16 Empty -
17 600 W, 840 W: Auxiliary heater 50
330 W: Auxiliary heater 30
18 840 W: Auxiliary heater 50
330 W: Auxiliary heater 30
19 40 W: Auxiliary heater 50
330 W: Auxiliary heater 30
20 Radiator cooling fan 30
From October 2015: 2WW: Radiator cooling fan 40
From October 2015: Trailer towing + Diesel: Radiator cooling fan 50
21 Radiator cooling fan 30
From October 2015: 2WW: Radiator cooling fan 40
From October 2015: Trailer towing + Diesel: Radiator cooling fan 50
22 Air conditioning system 50
23 Rear window defogger, "MIR HTR" fuse 30
24 Windshield heater 50
25 Headlamp washers 30
26 Windshield heater 50
Relays
R1 Radiator cooling fan
R2 Front fog lamps
R3 Horn
R4 Heater
R5 Daytime running lights (DRL)
R6 Radiator cooling fan
R7 Radiator cooling fan
R8 Rear window defogger
R9 Auxiliary heater
R10 Auxiliary heater
Windshield heater
R11 Auxiliary heater
Windshield heater
R12 Brake lights (Stop lamps)
R13 Starter
R14 Windshield wiper deicer
Heated steering wheel
Windshield wiper deicer / heated steering wheel (DEICER / STRG HTR)
A
R15 From October 2015: Trailer towing + Diesel: Radiator cooling fan (FAN NO.1), rear seat heater (S/HTR R/L)
R16 From October 2015: Rear seat heater
B
R17 From October 2015: Trailer towing + Diesel: Radiator cooling fan (FAN NO.2), heated washer nozzles (WSH NZL HTR)
R18 Starter
C
R19 330 W: Auxiliary heater
600 W: Auxiliary heater
R20 Auxiliary heater

Passenger Compartment

Left-Hand Drive (LHD)

Right-Hand Drive (RHD)

Component layout: 1. LHD: Interior light relay (DOME CUT); 2. Headlamp leveling control unit; 3. Fuse box / Body ECU; 4. Steering column lock actuator; 5. Power steering ECU; 6. Relay box; 7. Navigation control module; 8. Four-wheel drive (4WD) ECU; 9. Parking assist ECU (Clearance warning); 10. Driver assistance ECU; 11. Network gateway ECU; 12. Windshield wiper relay; 13. Stop & Start ECU; 14. Shift lever control unit; 15. Airbag ECU; 16. Junction connector; 17. Air conditioning amplifier; 18. Junction connector; 19. RHD: Double door lock relay

Main Fuse Box


General view.

Diagram
No. Description A
1 Empty -
2 Brake lights (Stop lamps) 7.5
3 Moonroof 10
4 "IG1 NO.1", "IG1 NO.2", "IG1 NO.3", "ACC" fuses 5
5 Data Link Connector (DLC / OBD II) 7.5
6 Before October 2015: Power door locks, Body ECU 20
7 Rear fog lamps 7.5
8 Power door locks (liftgate) 10
9 Power outlet (cigarette lighter fuse) 15
10 Driver side power window 20
11 Right rear power window 20
12 Left rear power window 20
13 Rear window wiper 15
14 Front and rear windshield washers 15
15 Backup lamps, auto-dimming rearview mirror, Blind Spot Monitor (BSM) 7.5
16 Windshield wipers 25
17 Shift lock control 5
18 Power outlet 15
19 Power outlet, audio system, power mirrors, Body ECU, clock, battery current sensor 7.5
20 VSC OFF switch, instrument cluster, BSM switch, 4WD switch, windshield wiper deicer switch, multiport fuel injection system / sequential multiport fuel injection system, parking assist system, seat heater switches, power outlets, power liftgate switch, air conditioning control unit, rear window defogger switch, audio system, steering wheel switches, cup holder illumination 7.5
21 Parking lamps, license plate lamps, front fog lamps 10
22 From October 2015: Power door locks, Body ECU 20
23 Electric Power Steering (EPS) 5
24 Four-wheel drive (Dynamic Torque Control 4WD), steering angle sensor, instrument cluster, shift lever controller 10
25 Body ECU, wireless remote control system, shift lock control, Smart Entry & Start system, moonroof, audio system, power liftgate actuator, tire pressure monitoring system (TPMS), Blind Spot Monitor (BSM), Lane Departure Alert (LDA) 5
26 Air conditioning system, rear window defogger 7.5
27 Before October 2015: Left seat heater 10
From October 2015: Left seat heater 10
28 Before October 2015: Right seat heater 10
From October 2015: Right seat heater 10
29 Fuel pump, multiport fuel injection system / sequential multiport fuel injection system, brake lights, steering column lock 7.5
30 SRS airbag system, occupant detection system 7.5
31 Instrument cluster 5
32 Alternator, ABS/VSC, windshield wiper deicer, brake lights, "FAN NO.1", "FAN NO.2", "FAN NO.3", "HTR", "PTC", "DEF", "DEICER" fuses 7.5
1 Left power seat 30
2 Power liftgate 30
3 Right power seat 30
4 Front power windows, power window master switch 30

Relay Box

Item 6 in location diagram.

Diagram
No. Description
R1
  • LHD: Anti-theft system
  • RHD: Interior lights
R2 Rear fog lamps

Body Electrical Components


Component layout: 1. Moonroof control ECU; 2. Wireless door lock and tire pressure monitoring receiver; 3. Tire pressure monitoring ECU; 4. Wireless door lock receiver; 5. Cellular phone transceiver; 6. Parking assist ECU; 7. Right blind spot monitor sensor; 8. Door control ECU; 9. Left blind spot monitor sensor; 10. Fuel pump control ECU; 11. Junction connector; 12. Audio amplifier
