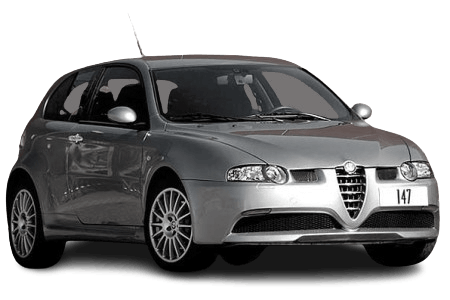

The Alfa Romeo 147 is a premium compact car manufactured by the Italian automaker between 2000 and 2010. In this article, we will provide a detailed look at the fuse box diagrams for the Alfa Romeo 147 (Type 937), covering the 2000 through 2010 model years.
Below, you will find the locations and photos of the power distribution boxes. The fuses responsible for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
Passenger Compartment
The fuse box is located behind the lower dashboard trim. To access the distribution box, release the two retaining clips (A) and remove the cover panel (B).
General view of the Alfa Romeo 147 interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Right rear power window motor | 20 |
| 2 | Right front power window motor, right power exterior mirror | 20 |
| 3 | Climate control humidity sensor, central locking, fog lights, instrument cluster illumination, telephone module | 7.5 |
| 4 | Climate control module, cruise control, reverse lights | 7.5 |
| 5 | Left headlight (low beam), headlight leveling motor | 10 |
| 6 | Sunroof | 15 |
| 7 | Left rear power window motor | 20 |
| 8 | Anti-lock Braking System (ABS), Electronic Stability Control (ESC) (if equipped), instrument cluster indicators, brake lights | 10 |
| 9 | Anti-lock Braking System (ABS), Electronic Stability Control (ESC) (if equipped) | 7.5 |
| 10 | Right headlight (low beam), headlight leveling motor | 10 |
| 11 | Front heated seats | 15 |
| 12 | Left front power window motor, left power exterior mirror | 20 |
| 13 | Transmission Control Module (TCM) (if equipped) | 15 |
| 14 | Airbag module | 7.5 |
| 15 | Audio system, Transmission Control Module (TCM) for sequential gearbox (if equipped) | 7.5 |
| 16 | Rear wiper/washer | 15 |
| 17 | Heated exterior mirrors, heated windshield washer nozzles | 7.5 |
| 18 | Windshield wiper system | 30 |
| 19 | Rear window defroster | 30 |
| 20 | Cigarette lighter fuse | 20 |
| 21 | Trailer Control Module (if equipped) | 10 |
| 22 | Multifunction control module | 15 |
| 23 | Central locking system | 20 |
| 24 | Turn signals / hazard warning lights, instrument cluster | 10 |
| 25 | Climate control blower module, headlight washers | 7.5 |
| 26 | Tailgate/trunk release actuator | 25 |
| 27 | Audio system | 15 |
| 28 | Audio system | 15 |
| 29 | Sunroof | 20 |
| T13 | Front heated seats relay | |
| T11 | Rear window defroster relay | |
| T12 | Rear wiper/washer relay | |
| T01 | Low beam headlights relay | |
Engine Compartment
The main power distribution center is located near the battery, behind a protective cover. Additionally, a fuse block containing high-current fusible links is mounted directly on the positive battery terminal.
Main Fuse Box
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Ignition switch | 20 |
| 2 | Anti-lock Braking System (ABS) control module | 50 |
| 3 | Climate control blower motor | 40 |
| 4 | Radiator cooling fan motor relay 2 | 40 / 60 |
| 5 | Radiator cooling fan motor relay 1 | 30 / 40 |
| 6 | Glow plug module (Diesel) | 50 |
| 7 | Passenger compartment fuse box supply | 50 |
| 8 | Right headlight (high beam) | 10 |
| 9 | Auxiliary coolant heater (Diesel) | 30 |
| 10 | Left headlight (high beam) | 10 |
| 11 | Horn | 15 |
| 12 | A/C compressor clutch | 7.5 |
| 13 | Engine Control Module (ECM) relay | 7.5 |
| 14 | Fog lights | 15 |
| 15 | Headlight washers | 30 |
| 16 | Engine Control Module (ECM) relay | 7.5 |
| 17 | Fuel pump fuse | 15 |
| 18 | Engine Control Module (ECM) | 7.5 |
| 19 | Fuel injectors | 20 |
| 20 | Engine Control Module (ECM) | 20 |
| 21 | — | |
| 22 | Fuel heater (Diesel) | 20 |
| Relay Modules | ||
| R1 | High beam headlights relay | |
| R2 | Climate control blower motor relay | |
| R3 | Horn relay | |
| R4 | Fog lights relay | |
| R5 | Headlight washer relay | |
| R6 | Radiator cooling fan motor relay 2 | |
| R7 | A/C compressor clutch relay | |
| R8 | Radiator cooling fan motor relay 1 | |
| R9 | Fuel pump relay | |
| R10 | Engine control system relay | |
| R11 | — | |
| R12 | Fuel heater relay (Diesel) | |
High-Current Fusible Links
Located on the positive battery terminal.
| Diagram | ||
|---|---|---|
|
||
| F70 | Engine compartment fuse/relay box (Gasoline) | 125 |
| F72 | Auxiliary heater | 50 |
| F73 | Ignition system | 30 |
| F74 | Passenger compartment fuse box supply | 70 |
