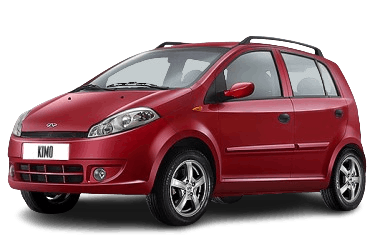

This guide details the fuse and relay box diagrams for the first-generation Chery Kimo A1 (S12 chassis code) covering model years 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, and 2015. This vehicle is also marketed as the DR Motor DR2 and Speranza A113.
Fuse No. 9 in the passenger compartment fuse box protects the cigarette lighter circuit.
Engine Compartment Fuse Box
The underhood fuse box is located adjacent to the battery. Remove the protective plastic cover to access the fuses and relays.
Example view shown above.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit / Component | Rating (A) |
| R1 | Front fog lamps relay | |
| R2 | Radiator cooling fan relay (high speed) | |
| R3 | Radiator cooling fan relay (low speed) | |
| R4 | Low-beam headlights relay | |
| R5 | Air conditioning (A/C) compressor clutch relay | |
| R6 | High-beam headlights relay | |
| R7 | Main system relay | |
| R8 | Fuel pump relay | |
| SF1 | Radiator cooling fan (high speed) | 30 |
| SF2 | Body Control Module (BCM) | 30 |
| SF3 | Air conditioning (A/C) system | 30 |
| SF4 | Battery main feed (Terminal 30a) | 40 |
| SF5 | Anti-lock Braking System (ABS) module | 30 |
| SF6 | 30 | |
| EF1 | Radiator cooling fan (low speed) | 20 |
| EF2 | Front fog lamps | 15 |
| EF3 | Engine Control Unit (ECU) | 10 |
| EF4 | Fuel pump | 15 |
| EF5 | Main relay supply | 30 |
| EF6 | Air conditioning (A/C) compressor clutch | 10 |
| EF7 | Oxygen sensor (Lambda sensor) | 15 |
| EF8 | Unused | - |
| EF9 | Ignition coils | 15 |
| EF10 | Reverse lamps | 10 |
| EF11 | Right side marker / parking lamps | 10 |
| EF12 | Left side marker / parking lamps | 10 |
| EF13 | Right high-beam headlight | 10 |
| EF14 | Left high-beam headlight | 10 |
| EF15 | Right low-beam headlight | 10 |
| EF16 | Left low-beam headlight | 10 |
| EF17 | Spare | - |
| EF18 | Spare | - |
| EF19 | Spare | - |
| EF20 | Spare | - |
Passenger Compartment Fuse Box
The fuse box is located on the side end of the dashboard behind the trim panel.
Example view shown above.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Circuit / Component | Rating (A) |
| R1 | Heater blower motor relay | |
| R2 | Turn signal flasher relay | |
| R3 | Windshield wiper relay | |
| F1 | Instrument cluster | 10 |
| F2 | Power mirrors, brake light switch, Body Control Module (BCM) | 10 |
| F3 | ABS control module | 10 |
| F4 | Supplemental Restraint System (SRS / Airbags) | 10 |
| F5 | Unused | - |
| F6 | Sunroof control module, windshield washer, rear window wiper | 15 |
| F7 | A/C relay, turn signal switch | 10 |
| F8 | Front windshield wiper | 15 |
| F9 | Cigarette lighter / 12V power outlet | 15 |
| F10 | Audio head unit | 10 |
| F11 | Unused | - |
| F12 | Starter signal / Relay coil | 25 |
| F13 | OBD-II diagnostic port | 10 |
| F14 | Brake lights (stop lamps) | 10 |
| F15 | Audio system amplifier / Radio | 20 |
| F16 | Horn, rear fog lamp | 15 |
| F17 | Unused | - |
| F18 | Interior lighting, parking lamps | 10 |
| F19 | Hazard warning flasher switch | 15 |
| F20 | Instrument panel illumination | 10 |
| F21 | Power sunroof | 20 |
| F22 | Heated rear window (defogger) | 20 |
