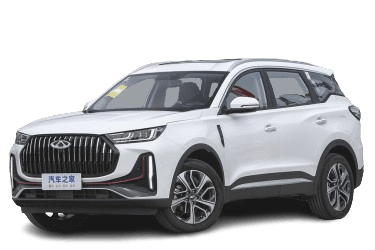

In this article, we will take a detailed look at the fuse diagrams for the Chery Tiggo 7 Pro car, as well as the Plus modification (first generation / index T1E): 2019, 2020, 2021, 2022, 2023 of release.
Fuse number 27 in the passenger compartment is responsible for protecting the electrical circuit of the cigarette lighter.
In the engine compartment
The distribution box is located on the left side of the engine compartment, near the battery.
It consists of two parts:
- 1 - main block;
- 2 - power fuse-links.
| Diagram | ||
|---|---|---|
| No. | Description | Amps |
| Main unit (#1) | ||
|
||
| ERLY 01 | Auxiliary Relay (ACC) | |
| ERLY 02 | High Beam Relay | |
| ERLY 03 | (IGN) Ignition | |
| ERLY 04 | Low Beam Relay | |
| ERLY 05 | (EMS) Engine management system | |
| ERLY 06 | Vacuum pump | |
| ERLY 07 | Reversing lamps | |
| ERLY 08 | (WIPER LOW) Wiper speed low | |
| ERLY 09 | (WIPER HIGH) Wiper speed high | |
| ERLY 10 | (TCU) Transmission control unit relay | |
| ERLY 11 | HORN | |
| ERLY 12 | (AC Clutch) A/C Compressor Electromagnetic Clutch | |
| ERLY 13 | Fuel pump relay | |
| ERLY 14 | (FAN HIGH) High engine cooling fan speed | |
| ERLY 15 | heater fan | |
| ERLY 16 | Starter | |
| ERLY 17 | Fog lights | |
| ERLY 18 | Low engine cooling fan speed | |
| SB01 | (ESP/ABS) Dynamic Stability Control and ABS Brake System | 25/40 |
| SB02 | (BCM Power2) BCM Comfort Unit - Power #2 | 30 |
| SB03 | (DCT) Robotic gearbox | 30 |
| SB04 | (BCM Power1) BCM Comfort Unit - Power #1 | 30 |
| SB05 | (Windshield Heat2) Heated windshield | 50 |
| SB06 | (BLOWER) Heater fan, interior heater and air conditioner, on relay 15 | 30 |
| SB07 | Starter | 30 |
| SB08 | (ESP/ABS) Dynamic Stability Control and ABS Brake System | 40 |
| SB09 | Accessories (ACC) | 30 |
| EF01 | heated seats | 20 |
| EF02 | (ESCL) Electronic steering column lock | 15 |
| EF03 | High beam - left headlight, power | 10 |
| EF04 | High beam - right headlight, power | 10 |
| EF05 | Ignition power | 15 |
| EF06 | ESP/ABS: Dynamic Stability Control and Braking System | 7.5 |
| EF07 | ECU, transmission control module, brake light switch and reverse gear limit switch | 7.5 |
| EF08 | A/C Compressor Tube Pressure Switch and Parking Assist Control Module | 10 |
| EF09 | ALT EXC: Generator excitation coil | 7.5 |
| EF10 | BCM Comfort Unit - Power #5 | 25 |
| EF11 | BCM Comfort Unit - Power #6 | 25 |
| EF12 | On Relay 16 - vacuum pump relay | 20 |
| EF13 | Heating of oxygen sensors, front and rear (O2 sensor) | 15 |
| EF14 | Ignition Coil (IGN COIL) | 15 |
| EF15 | Memory Fuse | 15 |
| EF16 | BCM Comfort Unit - Power #4 | 25 |
| EF17 | Sunroof | 30 |
| EF18 | BCM - Nutrition #5 | 25 |
| EF19 | On relay 10 - transmission control relay, TCU | 10 |
| EF20 | Fog lights, relay #17 | 15 |
| EF21 | BCM Comfort Unit - Power #3 | 20 |
| EF22 |
|
10 |
| EF23 | comfort unit BCM - power supply No. 6 | 25 |
| EF24 | Stop lights | 10 |
| EF25 | Horn | 15 |
| EF26 | Engine control unit ECU and transmission control unit TCU | 7.5/10 |
| EF27 | Glass cleaner (Wiper) | - |
| EF28 | Reversing lights, relay #07 | 10 |
| EF29 | Wiper and Washer (on Relay 08 - Wiper Low Speed and Relay 09 - Wiper High Speed) | 30 |
| EF30 | A/C Compressor Clutch Relay #12 | 10 |
| EF31 | Chery Tiggo 7 Pro / Plus Fuel Pump Fuse | 15 |
| EF32 | Not involved | - |
| EF33 | Dipped beam - left headlight | 15 |
| EF34 | Dipped beam - right headlight | 15 |
| EF35 | Electric thermostat, VVT valve control system, EGR valve, fuel vapor canister valve | 15 |
| EF36 | Adaptive Gearbox Control System (Some Models) (AGS) | 10 |
| EF37 | ECU - electronic engine control unit | 7.5/10 |
| EF38 | INJECTOR - Cylinder 1, 2, 3, 4 | 15 |
| EF39 | empty | - |
| EF40 | Heater and A/C Fan, Relay 15 (BLOWER RLY Coil) | 7.5 |
| Power fuse panel | ||
|
||
| 1 | Generator | 150 |
| 2 | Engine cooling fan low speed | 40 |
| 3 | High speed cooling fan | 50 |
| 4 | Electric Power Steering (EPS) | 80 |
| 5 | Fuse box in the cabin | 60 |
In the passenger compartment
The fuse box is located behind the dashboard trim on the driver's side.
To access:
1. Remove the end trim.
2. Loosen the three fixing screws.
3. Remove the bottom panel.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| RRLY 01 | Spare | - |
| RRLY 02 | Reversing lamp for ISS | - |
| RRLY 03 | Heated rear window relay (DEFROST) | - |
| RF01 | Comfort unit, control panel/dashboard control unit, Immobilizer | 10 |
| RF02 | Spare | - |
| RF03 | Steering angle sensor, EPS system | 10 |
| RF04 | Empty or on some trims - 360 Degree Surround Vision System, Blind Spot Detection System, Multimedia System, Vehicle Proximity Warning Radar (AVM & BSD & MPC & MRR) |
10 |
| RF05 | Airbags | 10 |
| RF06 | Spare | - |
| RF07 | A/C control panel, head unit control panel, power headlight adjustment switch, ESP control switch | 10 |
| RF08 | Spare | - |
| RF09 | Radio, head unit control unit, air conditioning and heater control panel | 10 |
| RF10 | Front panel control unit, rain sensor (ICM & Rain Sensor) | - |
| RF11 | Spare | - |
| RF12 | Spare | - |
| RF13 | Spare | - |
| RF14 | Spare | - |
| RF15 | (DIAGNOSIS & VTM & KEYIN & EPB SW) Sunroof, Volume Control, Key Light, Monitor Module, Heating Relay Coil | 7.5 |
| RF16 | usb charging port | 10 |
| RF17 | Spare | - |
| RF18 | Heated side mirrors with electric (left and right), Heated rear window feedback (MIRROR HEATER) | 10 |
| RF19 | PEPS keyless entry and start system, 4WD system, ECU and DC-DC start-stop system (ISS) | 10 |
| RF20 | Seat adjustment | 30 |
| RF21 | AM2 circuit when starting the engine (on a car without a PEPS keyless entry system) (IGN SW2) | 10 |
| RF22 | Empty or ignition in position 1 (IGN SW1) | 20 |
| RF23 | Spare | - |
| RF24 | Heated rear window, relay 03 | 30 |
| RF25 | Spare | - |
| RF26 | Head Unit Control Module, Mirror Adjustment Motor, BCM, Radio | 10 |
| RF27 | Cigarette lighter fuse Chery Tiggo 7 Pro / Plus | 15 |
| RF28 | Reverse Lamps | 15 |
