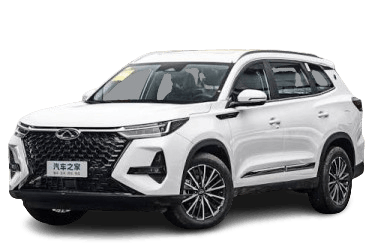

Fuses and relays Chery Tiggo 8 PRO (2020 - 2024)

This material examines in detail the fuse diagrams of the Chery Tiggo 8 Pro car (called Tiggo 8 Plus in China): 2020, 2021, 2022, 2023, 2024  model years.

Fuse RF28 in the passenger compartment unit is responsible for protecting the electrical circuit of the USB socket.

In the engine compartment


The mounting block is located on the right side of the engine compartment. To access the unit, remove the protective cover. The block itself has two possible versions.

Type 1 (T1A 2.0T+CVT25)

The first version of the fuse block.

Diagram
No. Description Current, A
SB01 ISS 1 30
SB02 ACC (auxiliary) 15
SB03 Start control 30
SB04 Spare 30
SB05 Body Control Module 2 30
SB06 Body Control Module 1 30
SB07 Electronic Stability Control (ELECTRONIC PARKING BRAKE) 40
SB08 Electronic Stability Control (ELECTRONIC PARKING BRAKE) 40
SB09 DCT (Dual Clutch Transmission) 30
SB10 PLG 20
SB11 Seat adjustment 30
EF01 Vacuum pump relay R1 20
EF02 OXYGEN SENSOR 15
EF03 Ignition coil 15
EF04 ECU solenoid valve 15
EF05 Spare 15
EF06 Fan 10
EF07 Spare 10
EF08 Left low beam 15
EF09 Spare 15
EF10 ECU and ignition coil relay (for ISS) 10
EF11 Spare 15
EF12 Spare 10
EF13 Engine control unit, gearbox control unit and brake switch 7.5
EF14 Rear view radar module, sunroof, seat control module, interior anti-glare rear view mirror and rear air conditioning panel 7.5
EF15 360° camera module 7.5
EF16 Rear fan 15
EF17 Spare 15
EF18 Spare 10
EF19 Spare 7.5
EF20 Injectors, cylinders 1,2,3,4 15
EF21 ISS 2 10
EF22 Spare 10
EF23 Spare 10
EF24 R20 - High beam relay 15
EF25 Spare 10
EF26 Right low beam 15
EF27 Horn relay (horn) 20
EF28 Electronic Stability Control (ELECTRONIC PARKING BRAKE) 7.5
EF29 Fuel pump relay 15
EF30 Body Control Module 6 25
EF31 IGN (a) и IGN (b) 15
EF32 Brake switch and 360° camera module 10
EF33 PLG, shock sensor and door lights 10
EF34 Body Control Module 5 25
EF35 Body Control Module 3 15
EF36 Spare 25
EF37 Third spare power supply and main spare power supply 15
EF38 ECU and DCT (Dual Clutch Transmission) 10
EF39 Wiper relay 25
EF40 Spare 10
EF41 Heated seats 20
EF42 Air conditioning compressor magnetic clutch relay 10
EF43 Spare 15
EF44 Body Control Module 4 15
EF45 Sunroof 30
EF46 IP Fuse Box Power / Memory Fuse 15
EF47 IP Fuse Box Power 60
EF48 Electric power steering 80
EF49 Alternator 175
EF50 Cooling Fan 60
EF52 Heater relay R2 50
EF53 Heater relay R1 50
R1 Vacuum pump relay
R2 Engine Management System (EMS)
R3 Spare
R4 Low beam relay
R6 Rear fan
R7 Auxiliary relay
R8 Relay ISS 1
R1 Relay ISS 2
R12 Horn relay
R13 Fuel pump relay
R14 Auxiliary relay (ACC)
R15 Start relay
F16 Spare
F17 Heater relay 2
F18 Heater relay 1

Type 2 (T1D 1.6T+7DCT)


Access example.

Diagram
No. Description Current, A
SB01 ISS 1 30
SB02 ACC (auxiliary) 15
SB03 Start control 30
SB04 Spare 30
SB05 Body Control Module 2 30
SB06 Body Control Module 1 30
SB07 Electronic stability control and anti-lock braking system 40
SB08 Electronic Stability Control (ELECTRONIC PARKING BRAKE) 40
SB09 DCT (Dual Clutch Transmission) 30
SB10 PLG 20
SB11 Seat adjustment 30
EF01 Vacuum pump relay R1 20
EF02 Oxygen sensor 15
EF03 Ignition coil 15
EF04 ECU solenoid valve 15
EF05 All Wheel Drive (AWD) 20
EF06 AGS and PWM FAN 10
EF07 AUX port illumination 7.5
EF08 Left low beam 15
EF09 Spare 15
EF10 ECU and ignition coil relay (for ISS) 10
EF11 Spare 15
EF12 Spare 10
EF13 Engine control unit, gearbox control unit, brake software (NC) and FPC 15+ 7.5
EF14 compressor switch, rear view radar module, sunroof, dashcam, seat ventilation, AFS, MST and RACP 7.5
EF15 AVW, BSD, LDW, AEB and ACC15+ 7.5
EF16 Rear fan 15
EF17 Spare 15
EF18 Spare 10
EF19 Spare 7.5
EF20 Injectors, cylinders 1,2,3,4 15
EF21 ISS 2 10
EF22 Spare 10
EF23 Spare 10
EF24 High beam 7.5
EF25 Spare 10
EF26 Right low beam 15
EF27 Horn relay (horn) 20
EF28 Electronic stability control and anti-lock braking system 7.5
EF29 Fuel pump relay 15
EF30 Body Control Module 6 25
EF31 Ignition system 15
EF32 Brake switch / BSD 10
EF33 Rear door power module and GLP 10
EF34 Body Control Module 5 25
EF35 Body Control Module 3 15
EF36 FPC 15
EF37 Spare power supply and ventilation relay coil 15
EF38 ECU and 30+" dual clutch transmission 10
EF39 Wiper relay 25
EF40 Spare 10
EF41 Heated seats 20
EF42 Air conditioner clutch 10
EF43 Spare 15
EF44 Body Control Module 4 15
EF45 Sunroof 30
EF46 Memory system fuse 20
EF47 IP Fuse Box Power 80
EF48 Electric power steering 80
EF49 Alternator 175
EF50 Cooling Fan 60
EF52 Heater relay R2 50
EF53 Heater relay R1 50
R1 Vacuum pump relay
R2 Engine Management System (EMS)
R3 AUX light (auxiliary lighting)
R4 low beam headlights
R5 Ignition system
R6 Rear fan
R7 Spare
R8 ISS 1
R9 Spare
R1 ISS 2
R11 Spare
R12 Sound signal (horn relay)
R13 Fuel pump relay Chery Tiggo 8 PRO
R14 Auxiliary relay (ACC)
R15 Start relay
R16 Spare
R17 Heater relay 2
R18 Heater relay 1

In the passenger compartment


The fuse box is located on the driver's side behind the dashboard trim.


Access example.

Type 1 (T1A 2.0T + CVT25)

The first version of the block (modification T1A).

Diagram
No. Description Current, A
RF01 Dashboard, body electrical control unit, central gateway, GLONASS and PEPS systems 10
RF02 Empty -
RF03 electric power steering and angle sensor 10
RF04 Empty -
RF05 Airbag module 10
RF06 Empty -
RF07 Automatic Air Conditioning Control Module, Audio and Adjustment Switch Assembly, Sub Panel Switch Assembly, Transmission Light (CVT25) and Shift Mechanism (CVT25) 10
RF08 Empty -
RF09 Radio 10
RF10 Instrument cluster, air conditioning control panel (AUTO), right mix damper motor, left mix damper motor, mode damper motor, internal and external circulation motor, GLONASS and T-BOX unit 10
RF11 Empty -
RF12 Empty -
RF13 Transmission control module (CVT25) 20
RF14 Empty 10
RF15 Main and sub instrument panel backlight, center console switch, EPB switch, OBD diagnostic port and T-box module 7.5
RF16 Empty -
RF17 Empty -
RF18 Air conditioning control panel and rear view mirror motor 10
RF19 Empty -
RF20 Fan relay R1 30
RF21 PEPS and central gateway 7.5
RF22 Spare 20
RF23 heated steering wheel (relay R2) 15
RF24 Anti-icer relay R3 30
RF25 Spare 15
RF26 body control unit, radio and power mirror switch 10
RF27 Spare power supply 15
RF28 USB charging socket Chery Tiggo 8 PRO 10
R1 Fan relay
R2 Heated steering wheel
R3 Window defroster

Type 2 (T1D 1.6T+7DCT)

The second version of the fuse block (modification T1D).

Diagram
No. Description Current, A
RF01 body electronics control unit, instrument panel, PEPS and central gateway 10
RF02 Spare 10
RF03 electric power steering and angle sensor 10
RF04 Audio system 10 / 15
RF05 Airbag module 10
RF06 Air Conditioning Control Panel, Rear Speed Resistor Panel, Auto Air Conditioning Control Module, Bluetooth Module, T-BOX Module, Instrument Panel, Ambient Lighting and Wireless Charging Module 10
RF07 A/C Control Panel, Rear Speed Resistor Panel, Transmission Control Module (7DCT), T-BOX Module, FIDC Switch, Auto A/C Control Module and Negative Ion Generator. 10
RF08 Door lights, panoramic controller, shock sensor, camera and DVR charging port 10
RF09 Spare 10 / 15
RF10 Spare 10
RF11 Empty -
RF12 Empty -
RF13 transmission control unit (variator CVT25) 20
RF14 Spare 10
RF15 Optional DCT Console Switch, OBD Diagnostic Interface, Spiral Cable and Center Console Switch 7.5
RF16 Empty -
RF17 Empty -
RF18 Electric rear view mirror motors 10
RF19 Empty -
RF20 Fan relay R1 30
RF21 PEPS, Central Gateway, Electric Parking Brake and Shift Switch 7.5
RF22 Spare 20
RF23 Heated steering wheel R2 -
RF24 relay R3 - Heated glass 30
RF25 Spare 15
RF26 BCM, Audio, Power, Mirror Switch and Wireless Mobile Charger 10
RF27 Spare power supply 15
RF28 USB socket for charging accessories and port for charging the DVR 10
R1 Fan relay
R2 Heated steering wheel
R3 Window defroster
