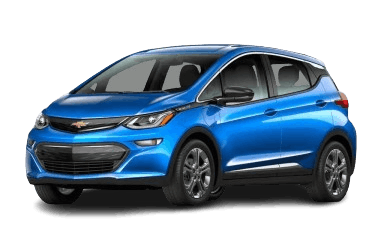

Chevrolet's electric hatchback debuted as a concept in 2015. Developed by General Motors, the vehicle was widely considered a direct competitor to the BMW i3. The name "Bolt" evokes electrical associations, drawing inspiration from a lightning bolt. In this technical reference, we will provide a detailed overview of the fuse box diagrams for the first-generation Chevrolet Bolt EV, covering the 2015, 2016, 2017, 2018, 2019, 2020, and 2021 model years.
Below you will find the locations and photographs of the power distribution boxes. We have specifically highlighted the fuses designated for the 12-volt accessory power receptacles (cigarette lighters).
Engine Compartment
The power distribution box is located on the driver's side of the engine compartment.
To access the fuses, release the rear and side latches and lift the cover upward.
General view of the fuse box.
| Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | - |
| 2 | Rear power windows |
| 3 | - |
| 4 | Battery Energy Storage System (BESS) 1 |
| 5 | - |
| 7 | Left high beam headlamp |
| 8 | Right high beam headlamp |
| 9 | Left low beam headlamp |
| 10 | Right low beam headlamp |
| 11 | Horn |
| 12 | - |
| 13 | Driver-side windshield wiper motor |
| 14 | Liftgate |
| 15 | Passenger-side windshield wiper motor |
| 16 | Electronic Brake Control Module (EBCM) power supply |
| 17 | Rear window wiper |
| 18 | Liftgate |
| 19 | Power front seats |
| 20 | Windshield washer pump |
| 22 | Linear Power Module |
| 23 | Electronic Braking System (EBS) |
| 24 | Rear seat adjustment |
| 26 | Automatic transmission |
| 27 | Active aero shutters |
| 28 | Auxiliary transmission fluid pump |
| 29 | Electric parking brake motor |
| 30 | Front power windows |
| 31 | Instrument panel power distribution center busbar |
| 32 | Rear window defogger |
| 33 | Heated outside mirrors |
| 34 | Pedestrian friendly alert function |
| 35 | - |
| 36 | - |
| 37 | Current sensor |
| 38 | Rain sensor |
| 39 | - |
| 40 | Electric brake booster control module |
| 41 | Power Line Communication Module |
| 42 | Passenger Presence System (PPS) sensor |
| 43 | Power window switches |
| 44 | Battery Energy Storage System (BESS) |
| 45 | Vehicle Integration Control Module (VICM) |
| 46 | Chassis Control Module |
| 47 | Headlamp leveling |
| 48 | Chassis Control Module |
| 49 | Interior rearview mirror |
| 50 | - |
| 51 | Electric parking brake |
| 52 | Rearview camera |
| 54 | HVAC control module |
| 55 | Battery system coolant pump |
| 56 | - |
| 57 | Power electronics coolant pump |
| 58 | Powertrain Control Module (PCM) |
| 59 | Electronic steering column lock |
| 60 | High-voltage cabin heater (HVAC) |
| 61 | Integrated Charging Module (ICM) |
| 62 | Transmission Control Module |
| 63 | Engine cooling fan |
| 64 | Powertrain Control Module (PCM) |
| 65 | Auxiliary heater coolant pump |
| 66 | Drive unit |
| 67 | Drive unit controller |
| 70 | Air conditioning (A/C) system |
| 71 | - |
| 72 | Transmission |
| 73 | Power inverter module |
| 74 | - |
| Relay modules | |
| 6 | 2015-2019: Not used 2020-2021: Pedestrian friendly alert function |
| 21 | HID headlamps |
| 25 | Drive unit |
| 53 | Run/Crank relay |
| 68 | Rear window defogger relay |
| 69 | Run/Crank relay 2 |
Passenger Compartment
The fuse box is located on the driver's side of the instrument panel, positioned behind the lower plastic trim cover.
Example of access to the fuse box.
| Diagram | |
|---|---|
|
|
| No. | Description |
| F01 | Video processing module |
| F02 | Sunload sensor |
| F03 | Side Blind Zone Alert |
| F04 | Passive Entry Passive Start (PEPS) system |
| F05 | Central Gateway Module (CGM) |
| F06 | Body Control Module (BCM) 3/4 |
| F07 | |
| F08 | Body Control Module (BCM) 2 |
| F09 | Body Control Module (BCM) 1 |
| F10 | Trailer interface module 1 |
| F11 | Audio amplifier |
| F12 | Body Control Module (BCM) 8 |
| F13 | Data Link Connector (DLC) 1 |
| F14 | Parking assist module |
| F15 | 2015-2017: Data Link Connector (DLC) 2 2018-2021: Not used |
| F16 | Accessory Power Module (APM) 1 |
| F17 | Body Control Module (BCM) 6 |
| F18 | Body Control Module (BCM) 5 |
| F19 | — |
| F20 | — |
| F21 | — |
| F22 | — |
| F23 | USB port |
| F24 | Wireless charging module |
| F25 | Reflective LED warning display (HUD) |
| F26 | Heated steering wheel |
| F27 | 2015-2018: Not used 2019-2021: Central Gateway Module (CGM) 2 |
| F28 | Instrument cluster 2 |
| F29 | Trailer interface module 2 |
| F30 | Headlamp leveling |
| F31 | Telematics/OnStar module |
| F32 | 2015-2018: Not used 2019-2021: Virtual keypass |
| F33 | HVAC control module |
| F34 | 2015-2018: Not used 2019-2021: Virtual keypass module |
| F35 | Instrument cluster 1 |
| F36 | Infotainment system / Radio |
| F37 | — |
| F38 | — |
| F39 | — |
| F40 | — |
| F41 | — |
| F42 | — |
| F43 | Body Control Module (BCM) 7 |
| F44 | Sensing and Diagnostic Module (SDM) |
| F45 | Forward camera module |
| F46 | Vehicle Integration Control Module (VICM) |
| F47 | Power inverter module 2 |
| F48 | Electronic steering column lock |
| F49 | 12V auxiliary power receptacle / Cigarette lighter |
| F50 | Steering wheel controls |
| F51 | Steering wheel illumination controls |
| F52 | Smartphone remote function module |
| F53 | Additional 12V auxiliary power receptacle |
| F54 | — |
| F55 | Tow/Haul mode |
| F56 | — |
| No. | Relay |
| F57 | — |
| F58 | Logistics relay (Transport mode) |
| F59 | — |
| F60 | Auxiliary relay |
