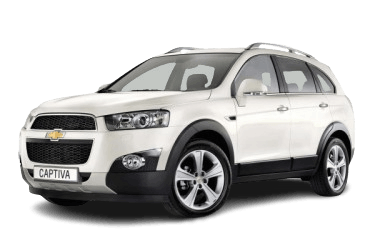

The updated Chevrolet Captiva C140 was produced from 2011 to 2019.
The exact fuse block diagram is located on the inside of the protective cover. Please refer to the corresponding description.
Engine Compartment
Main Fuse Box
It is located adjacent to the windshield washer fluid reservoir and is enclosed by a plastic cover.
Reference Image
| Diagram | |
|---|---|
|
|
| Designation | Description |
| ABS | Anti-lock Braking System (ABS) |
| A / C | Air Conditioning (A/C) / Climate Control System |
| BATT1 | Instrument Panel Fuse Box |
| BATT2 | |
| BATT3 | |
| BCM | Body Control Module (BCM) |
| ECM | Engine Control Module (ECM) |
| ECM PWR TRN |
Engine Control Module (ECM), Powertrain |
| ENG SNSR |
Engine Management Sensors |
| EPB | Electronic Parking Brake (EPB) |
| FAN1 | Radiator Cooling Fan 1 |
| FAN3 | Radiator Cooling Fan 3 |
| FRT FOG | Front Fog Lights |
| FRT WPR | Front Windshield Wipers |
| FUEL / VAC | Fuel Pump / Vacuum Pump |
| HDLP WASHER |
Headlight Washers |
| HI BEAM LH | Left High Beam Headlight |
| HI BEAM RH | Right High Beam Headlight |
| HORN | Horn |
| HTD WASH / MIR |
Heated Washer Fluid / Heated Exterior Mirrors |
| IGN COIL A | Ignition Coil A |
| IGN COIL B | Ignition Coil B |
| LO BEAM LH |
Left Low Beam Headlight |
| LO BEAM RH |
Right Low Beam Headlight |
| PRK LP LH | Left Parking Light |
| PRK LP RH | Right Parking Light |
| PWM FAN | Pulse Width Modulation (PWM) Cooling Fan Control |
| REAR DEFOG |
Rear Window Defogger |
| REAR WPR |
Rear Window Wiper |
| SPARE | Spare |
| STOP LAMP |
Brake Lights |
| STRTR | Starter Motor |
| TCM | Transmission Control Module (TCM) |
| TRLR PRL LP |
Trailer Parking Lights |
Auxiliary Fuse Box (Diesel)
Applicable to diesel engine models only.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amperage (A) |
| 1 | Positive Temperature Coefficient (PTC) Heater Relay | 40 |
| 2 | 40 | |
| 3 | 40 | |
| 4 | Fuel Filter Heater Relay | 30 |
| 5 | Glow Plug Control Module (GPCM) | 60 |
| R1 | Positive Temperature Coefficient (PTC) Heater Relay | |
| R2 | ||
| R3 | ||
| R4 | Fuel Filter Heater Relay | |
Passenger Compartment
The interior fuse box is located on the left side of the passenger footwell, enclosed by a protective cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Relays | |
| R1 | Accessory Power Relay | |
| R2 | Auxiliary Power Relay | |
| R3 | Engine Run Relay | |
| R4 | Main Ignition Relay | |
| R5 | Windshield Washer Pump Relay | |
| R6 | Daytime Running Lights (DRL) Relay | |
| R7 | Rear Fog Light Relay | |
| R8 | Trailer Reverse Light Relay | |
| R9 | Trailer Light Relay | |
| R10 | Trailer Light Relay | |
| R11 | Door Unlock Relay | |
| R12 | Fuel Door Release Relay | |
| R13 | Power Liftgate Relay | |
| R14 | Door Lock Relay | |
| R15 | Driver's Door Lock Relay | |
| R16 | Deadlock Relay | |
| No. | Fuses | Amperage (A) |
| 1 | Heated Seat Switches | 20 |
| 2 | Air Quality Sensor | 10 |
| Heating, Ventilation, and Air Conditioning (HVAC) System | ||
| HVAC Blower High-Speed Relay | ||
| Auxiliary Heater Relay 1 | ||
| 3 | HVAC Blower Motor | 40 |
| 4 | Headlight Leveling Control Module | 10 |
| Power Steering Control Module (PSCM) | ||
| Left Headlight Leveling Actuator | ||
| Right Headlight Leveling Actuator | ||
| 5 | Multifunction Switch | 2 |
| Instrument Cluster | ||
| Power Rearview Mirror Switch | ||
| 6 | Power Driver's Seat Switch | 30 |
| 7 | Fuel Pump Control Module | 10 |
| Not Used | ||
| 8 | Auto-Dimming Interior Rearview Mirror | 5 |
| Security Alarm System | ||
| 9 | Rear Fog Light Relay | 10 |
| Passenger Airbag Deactivation Indicator | ||
| Instrument Cluster | ||
| Information Display Control Module | ||
| Multifunction Switch | ||
| Instrument Panel | ||
| 10 | Airbag Diagnostic Module | 10 |
| 11 | Body Control Module (BCM) | 10 |
| Trailer Connector | ||
| 12 | Park/Neutral Position (PNP) Switch | 10 |
| 13 | Sunroof Control Module | 10 |
| Power Mirror Control Module | ||
| 14 | Trailer Reverse Light Relay | 20 |
| Trailer Lights Relay | ||
| 15 | Spare | |
| 16 | Sunroof | 20 |
| 17 | Rear Differential Control Module | 15 |
| EVAP Canister Vent Solenoid | ||
| 18 | Body Control Module (BCM) | 20 |
| Trailer Connector | ||
| 19 | Audio System / Radio | 15 |
| 20 | Fuel Pump | 20 |
| 21 | Auxiliary Power Outlet | 20 |
| 22 | Front Cigarette Lighter | 20 |
| 23 | Cargo Area Power Outlet | 20 |
| 24 | Engine Control Module (ECM) | 15 |
| Mass Airflow (MAF) / Intake Air Temperature (IAT) Sensor | ||
| Electronic Stability Program (ESP) | ||
| / | ||
| Engine Control Module (ECM) | ||
| Vacuum Pump Relay | ||
| Electronic Stability Program (ESP) | ||
| 25 | Spare | |
| 26 | Rear Fog Light | 15 |
| 27 | A/C Compressor Diode | 5 |
| 28 | Instrument Cluster | 10 |
| 29 | Steering Wheel Audio Controls | 2 |
| 30 | Fuel Door Release | 15 |
| 31 | Audio Speakers | 20 |
| Subwoofer | ||
| 32 | Spare | |
| 33 | Body Control Module (BCM) | 15 |
| 34 | Windshield Washer Pump | 20 |
| 35 | Body Control Module (BCM) | 15 |
| 36 | Body Control Module (BCM) | 10 |
| 37 | Trailer Wiring Connector | 30 |
| 38 | Spare | |
| 39 | Central Locking Relay | 20 |
| 40 | Body Control Module (BCM) | 15 |
| 41 | Body Control Module (BCM) | 15 |
| 42 | Body Control Module (BCM) | 15 |
| 43 | Spare | |
| 44 | Audio Amplifier | 30 |
| 45 | Left Daytime Running Light (DRL) | 15 |
| 46 | Driver's Heated Seat Control Module | 10 |
| Passenger's Heated Seat Control Module | ||
| 47 | Immobilizer Control Module | 15 |
| 48 | Airbag Diagnostic Module | 10 |
| 49 | Power Windows | 30 |
| 50 | Driver's Power Window | 20 |
| 51 | Ultrasonic Intrusion Sensor | 10 |
| Park Assist Control Module | ||
| Security Alarm System | ||
| Clock | ||
| Multifunction Switch | ||
| Instrument Panel | ||
| 52 | Ignition Switch | 20 |
| 53 | Spare | |
