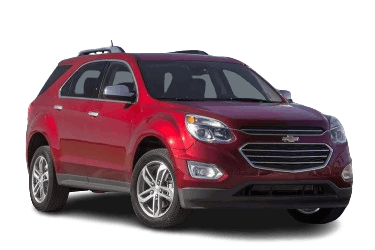

The Equinox is a mid-size SUV introduced by Chevrolet in 2004. In this article, we will examine the fuse block diagrams for the second-generation Chevrolet Equinox (Theta platform) 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017 model years.
Below, you will find the locations and diagrams of the power distribution fuse blocks. The fuse responsible for the “cigarette lighter” is highlighted in bold.
Engine Compartment Fuse Block
This fuse block is located on the right-hand side of the engine compartment, beneath a protective cover.
Example of fuse block access.
General view of the power distribution block.
| Fuse Block Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | Cooling Fan 1 |
| 2 | Cooling Fan 2 |
| 3 | Brake Booster Vacuum Pump |
| 4 | Right-Hand Power Windows |
| 5 | Memory Seat Module |
| 6 | Left-Hand Power Seat |
| 7 | Instrument Panel Fuse Block 1 |
| 8 | Rear Defogger |
| 9 | Starter Motor |
| 10 | Secondary Air Injection (SAI) Pump Motor |
| 11 | Instrument Panel Fuse Block 2 |
| 12 | Power Door Locks |
| 13 | Antilock Brake System (ABS) Pump |
| 14 | Instrument Panel Fuse Block 3 |
| 14 | Left-Hand Power Windows |
| 15 | Antilock Brake System (ABS) Module |
| 17 | Transmission Control Module (TCM) |
| 18 | Marker Lamps |
| 19 | Secondary Air Injection (SAI) Valve |
| 20 | Engine Control Module (ECM) |
| 21 | EVAP Canister Vent Solenoid |
| 22 | Trailer Left Turn/Stop Lamp (if equipped) |
| 23 | Power Liftgate Module |
| 24 | Power Lumbar Support |
| 25 | Trailer Right Turn/Stop Lamp (if equipped) |
| 26 | Rear 12-Volt Accessory Power Receptacle / Cigarette Lighter |
| 27 | Memory Mirror Module |
| 28 | Regulated Voltage Control (RVC) Battery Sensor |
| 29 | Front Windshield Wipers |
| 30 | Rear Window Wiper |
| 31 | A/C Compressor Clutch |
| 32 | Rear Liftgate Latch |
| 33 | Heated Outside Mirrors |
| 34 | Horn |
| 35 | Right High-Beam Headlamp |
| 36 | Left High-Beam Headlamp |
| 37 | Ignition Coils (Even) |
| 38 | Ignition Coils (Odd) |
| 39 | Windshield Washer Pump |
| 40 | Front Fog Lamps |
| 41 | Oxygen Sensor (Post-Catalytic Converter) |
| 42 | Engine Control Module (ECM) |
| 43 | Oxygen Sensor (Pre-Catalytic Converter) |
| 44 | Transmission Control Module (TCM) |
| 45 | Inside Rearview Mirror |
| 46 |
|
| 47 | Spare |
| 48 | Rear Drive Module (AWD) |
| 49 | Power Liftgate Module Logic |
| 50 | Instrument Panel Fuse Block (Ignition) |
| 51 | Heated Front Seats |
| 52 | Fuel System Control Module |
| 53 | Engine Control Module (ECM) |
| 54 | Rearview Camera |
| 55 | Electric Power Steering (EPS) |
| 56 | Secondary Air Injection (SAI) Valve |
| 57 | Brake Booster Vacuum Pump |
| 58 | Cooling Fan (Low Speed) |
| 59 | High-Beam Headlamps |
| 60 | Cooling Fan Control Module |
| 61 | Windshield Wiper Control (On/Off) |
| 62 | A/C Compressor Relay |
| 63 | Rear Defogger Relay |
| 64 | Windshield Wiper Speed Control (High/Low) |
| 65 | Front Fog Lamps |
| 66 | Engine Controls |
| 67 | Starter Motor |
| 68 | Run/Crank |
| 69 | Cooling Fan (High Speed) |
| 70 | Secondary Air Injection (SAI) Pump |
| 77 | Right-Hand Power Seat |
| 78 | Power Seat Adjustment |
Instrument Panel Fuse Block
This fuse block is located on the passenger side of the center console, behind a trim panel.
Example of trim panel removal.
General view of the fuse block.
| Instrument Panel Fuse Block Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | Steering Wheel Illumination |
| 2 | Spare |
| 3 | Spare |
| 4 | Body Control Module (BCM) 1 |
| 5 | Infotainment System |
| 6 | Body Control Module (BCM) 7 |
| 7 | Active Noise Cancellation |
| 8 | Body Control Module (BCM) 4 |
| 9 | Audio System / Radio |
| 10 | Spare |
| 11 | Rear Parking Assist |
| 12 | HVAC (Heating, Ventilation, and Air Conditioning) Battery |
| 13 | Front 12-Volt Auxiliary Power Receptacle |
| 14 | HVAC Ignition |
| 15 | Information Display |
| 16 | Body Control Module (BCM) 5 / Front Cigarette Lighter |
| 17 | Rear 12-Volt Auxiliary Power Receptacle |
| 18 | Instrument Cluster Ignition |
| 19 | Universal Garage Door Opener |
| 20 | Body Control Module (BCM) 6 |
| 21 | Spare |
| 22 | Sensing and Diagnostic Module (SDM) / Ignition |
| 23 | Forward-Facing Camera |
| 24 | Spare |
| 25 | Transmission Gear Shift Position Indicator |
| 26 | Spare |
| 27 | Spare |
| 28 | Spare |
| 29 | HVAC Blower Motor |
| 30 | Body Control Module (BCM) 3 |
| 31 | Audio Amplifier |
| 32 | Discrete Logic Ignition Switch |
| 33 | Communication Integration Module |
| 34 | Body Control Module (BCM) 2 |
| 35 | Sensing and Diagnostic Module (SDM) Battery |
| 36 | Data Link Connector (DLC) |
| 37 | Instrument Cluster Battery |
| 38 | Passenger Presence System |
| 39 | Spare |
| 40 | Body Control Module (BCM) 8 |
| 41 | Logistics Relay (if equipped) |
| 42 | Retained Accessory Power (RAP) Relay |
