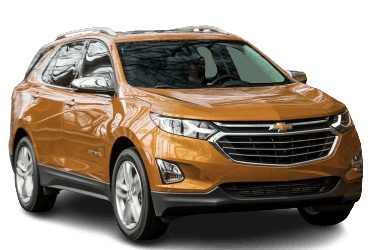

The third-generation Chevrolet Equinox crossover was introduced for the 2016 model year. This redesigned model transitioned from the mid-size to the compact SUV segment. The crossover is built on the GM D2XX platform, which it shares with the Chevrolet Cruze and Opel Astra. In global markets, the vehicle replaced the Chevrolet Captiva. This article provides a comprehensive overview of the fuse box diagrams for the third-generation Chevrolet Equinox, covering the 2016, 2017, 2018, 2019, 2020, 2021, and 2022 model years.
Below, you will find the locations and reference photos of the electrical distribution boxes. The fuse assigned to the “Cigarette Lighter” (auxiliary power outlet) is highlighted in bold.
Rear Compartment
It is located on the left side of the cargo area, behind a removable trim panel.
| Diagram | |
|---|---|
|
|
| No. | Description |
| k1 | Trailer right stop/turn signal |
| k2 | Trailer left stop/turn signal |
| k3 | Trailer reverse lamps |
| k4 | Parking lamps |
| k5 | Exhaust fuel heater module (diesel only) |
| f1 | Exhaust fuel heater module (diesel only) |
| f2 | Power liftgate module |
| f3 | Trailer auxiliary power |
| f4 | Passenger power seat |
| f5 | Memory seat module |
| f6 | Sunroof |
| f7 | Side blind zone alert system |
| f8 | Trailer reverse lamps |
| f9 | Heated rear seat 1 |
| f10 | Parking lamps |
| f11 | Heated rear seat 2 |
| f12 | Not used |
| f13 | Trailer parking lamps |
| f14 | Trailer right stop/turn signal |
| f15 | Left parking lamp |
| f16 | Right parking lamp |
| f17 | Video processing module |
| f18 | Trailer left stop/turn signal |
| f19 | All-Wheel Drive (AWD) module |
| f20 | Power lumbar support |
| f21 | Rear auxiliary power outlet |
| f22 | Rear drive module |
Instrument Panel
Located on the lower left side of the instrument panel, near the hood release latch.
| Chevrolet Equinox Instrument Panel Fuse Box Diagram | |
|---|---|
|
|
| No. | Description |
| f1 | DC/AC inverter |
| f2 | Front power windows |
| f3 | Trailer brake controller |
| f4 f33 |
HVAC blower motor |
| f22 | Body Control Module (BCM) |
| f18 | |
| f32 | |
| f20 | |
| f5 | |
| f8 | |
| f21 | |
| f6 | Central Gateway Module (CGM) |
| f9 | Audio amplifier |
| f14 | Electronic transmission range selector |
| f15 | Transmission Control Module (TCM) |
| f16 | Heated front seats |
| f17 | Data Link Connector (DLC) - Left |
| f19 | Power exterior mirrors |
| f23 | Electronic steering column lock |
| f24 | Sensing and Diagnostic Module (SDM) |
| f25 | Passenger presence system |
| f27 | Driver power seat |
| f28 | Rear power windows |
| f30 | Heated front seat switches |
| f31 | Steering wheel controls |
| f34 | Passive Entry / Passive Start (PEPS) module |
| f35 | Liftgate latch |
| f36 | Wireless charging module / USB accessories |
| f37 | “Cigarette Lighter” (Auxiliary power outlet) |
| f38 | OnStar® system |
| f39 | Instrument panel USB port |
| f40 | Liftgate camera module |
| f41 | Parking assist module |
| f42 | Radio / Infotainment system |
| k1 | Deadbolt relay |
| k2 | Retained Accessory Power (RAP) relay |
| k3 | Liftgate relay |
| k5 | Logistics relay |
| cb2 | Center console auxiliary power outlet |
Engine Compartment
It is located on the left side of the engine bay, beneath a protective cover.
Cover removal.
| Diagram | |
|---|---|
|
|
| No. | Description |
| f1 | Starter 1 |
| f2 | Starter 2 |
| f3 | Oxygen (O2) sensor 1 |
| f15 | Oxygen (O2) sensor 2 |
| f4 f8 f14 |
Engine Control Module (ECM) |
| f5 | Flex Fuel sensor |
| f6 | Transmission Control Module (TCM) |
| f9 | A/C compressor clutch |
| f11 | EVAP canister vent solenoid |
| f11 | Fuel system |
| f12 | Heated front seats |
| f13 | Auxiliary coolant pump |
| f16 | Ignition coils |
| f18 | Selective Catalytic Reduction (SCR) module (diesel) |
| f19 | NOx and particulate matter sensor (diesel) |
| f20 | DC/DC converter 2 |
| f21 | Transmission range selector |
| f22 | Antilock Brake System (ABS) pump |
| f23 | Windshield / Rear window washer pump |
| f25 | Fuel heater (diesel) |
| f27 | Antilock Brake System (ABS) valves |
| f28 | Trailer lighting |
| f29 | Rear window defogger |
| f30 | Heated outside mirrors |
| f32 | Miscellaneous functions |
| f34 | Horn |
| f36 | Right high beam headlamp |
| f37 | Left high beam headlamp |
| f38 | Headlamp leveling module |
| f39 | Fog lamps |
| f41 | Transmission range control module |
| f42 | Headlamp motors |
| f44 | Interior rearview mirror |
| f45 | Ventilated passenger seat |
| f46 | Ventilated driver seat |
| f47 | Steering column lock |
| f48 | Rear window wiper |
| f50 | Heated steering wheel |
| f51 | Right Daytime Running Lamp (DRL) |
| f57 | Left Daytime Running Lamp (DRL) |
| f52 | Engine / Transmission Control Module (ECM/TCM) |
| f55 | Front wiper control |
| k1 | Starter solenoid |
| k2 | A/C control relay |
| k3 | Engine Control Module (ECM) relay |
| k4 | Front wiper control relay |
| k5 | Starter pinion relay |
| k6 | Fuel heater relay (diesel) |
| k9 | Front wiper speed relay |
| k12 | Driving lamps relay |
| k13 | Headlamps / DRL relay |
| k14 | Ignition / Run / Start relay |
| k15 | Rear window defogger relay |
| k16* | Horn relay |
| k17* | Selective Catalytic Reduction (SCR) relay |
| k18* | Fog lamps relay |
| k19* | Coolant pump relay |
| k21* | Rear washer pump relay |
| k22* | Front washer pump relay |
| k23* | Rear wiper control relay |
| * - Non-serviceable relays (PCB relays) | |
