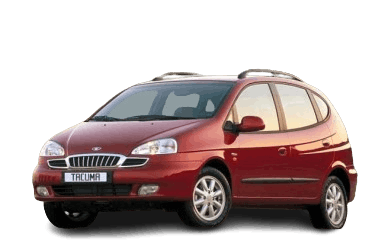

The Chevrolet Rezzo compact van was produced from 2000 to 2008. The model is also known as the Daewoo Tacuma or Chevrolet Tacuma.
This manual details the relay and fuse boxes for the Chevrolet Rezzo, providing comprehensive component descriptions.
Engine Compartment
The fuse box is located next to the windshield washer fluid reservoir and is secured by a plastic cover.
Access example.
General view.
| Diagram | |
|---|---|
|
|
| № | Amperage / Description |
| 1 | Rear window defogger relay |
| 2 | Engine control module (ECM) relay |
| 3 | Power window relay |
| 4 | Cooling fan high-speed relay |
| 5 | Cooling fan low-speed relay |
| 6 | HVAC blower motor relay |
| 7 | Parking lamp relay |
| 8 | Headlamp relay |
| 9 | Horn relay |
| 10 | Fog lamp relay |
| 11 | A/C compressor clutch relay |
| 12 | Fuel pump relay |
| F1 | (30A) Ignition switch circuits |
| F2 | (30A) Main ignition circuits |
| F3 | (40A) Cooling fan motor |
| F4 | (30A) HVAC blower motor |
| F5 | (30A) Engine control module (ECM) |
| F6 | (40A) Instrument panel fuse/relay block |
| F7 | (10A) Warning chime(s) |
| F8 | (15A) Fog lamps |
| F9 | (10A) Anti-theft alarm siren |
| F10 | (10A) Left-hand (LH) tail lamps |
| F11 | (10A) Right-hand (RH) parking and tail lamps |
| F12 | (10A) LH headlamp low beam |
| F13 | (10A) RH headlamp low beam |
| F14 | (10A) LH headlamp high beam |
| F15 | (10A) RH headlamp high beam |
| F16 | (20A) Instrument cluster illumination |
| F17 | (30A) Rear window defogger |
| F18 | (30A) Power windows |
| F19 | (30A) Cooling fan motor |
| F20 | (50A / 60A) Anti-lock braking system (ABS) |
| F21 | (20A) Lighting system |
| F22 | (10A) Engine management system |
| F23 | (15A) Fuel pump |
| F24 | (10A) A/C compressor clutch |
| F25 | (10A) Engine management system |
| F26 | (15A) Engine management system |
| F27 | (10A) Heated power mirrors |
| F28 | (15A) Accessory power outlet |
| F29 | (5A) Engine management system |
| F30 | (15A) Heated seats |
Passenger Compartment
The interior fuse block is located under the instrument panel on the left side.
Access example.
General view.
| Diagram | |
|---|---|
|
|
| № | Amperage / Description |
| 1 | (20A) Sunroof |
| 2 | (15A) Brake lamps |
| 3 | (10A) Interior lamps |
| 4 | (10A) Data link connector (DLC) |
| 5 | - |
| 6 | - |
| 7 | (15A) Power door locks |
| 8 | (15A) Anti-theft alarm system |
| 9 | (10A) Transmission control module (TCM) |
| 10 | (10A) Audio system |
| 11 | (10A) Power mirrors |
| 12 | (25A) Windshield wipers and washers |
| 13 | (15A) Engine management system |
| 14 | (10A) Backup lamp(s) |
| 15 | (10A) Engine management system |
| 16 | (10A) Instrument cluster |
| 17 | (10A) Auxiliary circuits |
| 18 | (20A) HVAC system |
| 19 | (10A / 15A) Supplemental Restraint System (SRS) |
| 20 | (10A) Turn signal lamps |
| 21 | (10A) |
| 22 | (15A) Audio system |
| 23 | (15A) Cigarette lighter |
| 24 | - |
