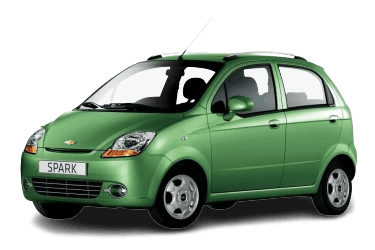

The Chevrolet Spark is a subcompact car manufactured across several generations, originally introduced as the Daewoo Matiz. The second generation (M200/M250) was produced from 2005 through 2010.
This guide covers the second-generation (M200/M250) Spark fuse and relay boxes, including detailed circuit assignments.
Engine Compartment
The engine compartment fuse box is located on the left side of the engine bay.
To access the fuses, press the latch tab and remove the protective cover.
Underhood power distribution box layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Description |
| 1 | - | Spare |
| 2 | 10 | Transmission Control Module (TCM), Engine Control Module (ECM) |
| 3 | 15 | Engine management system, fuel injectors, rough road sensor, EGR valve, heated oxygen sensor (HO2S), camshaft position (CMP) sensor, EVAP canister purge valve |
| 4 | - | Spare |
| 5 | 15 | Headlamp high-beam relay |
| 6 | 10 | Low-beam headlamps |
| 7 | - | Spare |
| 8 | - | - |
| 9 | - | - |
| 10 | - | - |
| 11 | 30 | Ignition switch circuit |
| 12 | 15 | Fuel pump |
| 13 | 15 | Hazard flasher switch circuit |
| 14 | 20 | Rear window defogger relay circuit |
| 15 | 30 | Instrument panel fuse box circuit |
| 16 | 30 | Ignition switch circuit |
| 17 | 10 | Low-beam headlamps, rear fog lamp relay circuit, headlamp switch circuit |
| 18 | 15 | ABS hydraulic modulator unit |
| 19 | 10 | Front fog lamp circuit |
| 20 | 10 | Horn circuit |
| 21 | 10 | Audio system, security system, A/C control circuit, shift lever illumination (A/T), instrument cluster |
| 22 | 10 | Parking lamps, headlamp leveling system |
| 23 | 10 | A/C compressor clutch relay circuit |
| 24 | 20 | Engine cooling fan low-speed relay circuit |
| 25 | 30 | Engine cooling fan high-speed relay circuit |
| K1 | Fuel pump relay |
| K2 | Headlamp high-beam relay |
| K3 | Headlamp low-beam relay |
| K4 | Horn relay |
| K5 | Front fog lamp relay |
| K6 | Main engine control relay |
| K7 | Cooling fan low-speed relay |
| K8 | Cooling fan high-speed relay |
| K9 | Parking lamp relay |
| K10 | A/C compressor clutch relay |
Passenger Compartment
The interior fuse box is located beneath the instrument panel on the driver's side.
Gaining access to the interior fuse panel.
Passenger compartment fuse box overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Description |
| F1 | 15 | Headlamp reminder relay, daytime running light (DRL) control module |
| F2 | 10 | Data Link Connector (DLC / OBD-II), instrument cluster, anti-theft alarm control unit, immobilizer module |
| F3 | 10 | Audio unit, trip computer, interior dome lamp, luggage compartment lamp |
| F4 | 15 | Central locking relay, central door lock switch, anti-theft system module |
| F5 | 10 | Brake lamp switch |
| F6 | 10 | Windshield wiper switch, rear window wiper motor, rear window defogger relay, heated mirror switch |
| F7 | 15 | Windshield wiper switch, wiper intermittent relay |
| F8 | 10 | Transmission Range Switch (A/T), Back-up Lamp Switch (M/T) |
| F9 | 20 | Blower motor switch |
| F10 | 10 | Instrument cluster, warning indicator lamps, brake lamps, trip computer, anti-theft system module, overdrive switch |
| F11 | 10 | Sensing and Diagnostic Module (SDM / Airbag control module) |
| F12 | 30 | Master power window switch, passenger power window switches |
| F13 | 10 | Hazard switch, horn relay, speed warning buzzer relay |
| F14 | 15 | Underhood fuse box power feed |
| F16 | 10 | Power outside rearview mirrors (OSRVM) |
| F17 | 15 | Cigarette lighter / auxiliary power outlet |
| F18 | 10 | Audio unit |
| Relays | ||
| R1 | Rear fog lamp relay (p/n 96242630) | |
| R1 | Speed warning buzzer relay (p/n 96314313) | |
| R2 | Daytime Running Light (DRL) relay (p/n 90414786) | |
| R3 | Heated rear window relay | |
| R4 | Wiper intermittent relay (p/n 96312300) | |
| R5 | Turn signal / hazard flasher relay (p/n 96312545) | |
| R6 | Battery saver / protection module | |
