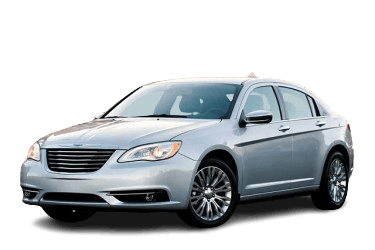

Fuses Chrysler 200 (I; 2010–2014)

This article provides a detailed overview of the fuse box diagrams for the first-generation Chrysler 200, covering the 2010, 2011, 2012, 2013, and 2014 model years.

Fuses #11 and #13 (depending on the model year) in the engine compartment fuse box protect the cigarette lighter circuit.

Engine Compartment Fuse Box

The fuse box is located near the air cleaner assembly, concealed behind a plastic cover.

Example of cover removal.

Overview of the fuse box layout.

2012–2014 Model Years

Fuse assignments for vehicles manufactured in the 2012, 2013, and 2014 model years.

Diagram
No.	Assignment	Amperage
Type “Mini”
2	Brake Vacuum Pump	20
4	Ignition Switch	10
5	Trailer Tow	20
6	Power Mirror Switch Climate Control Unit	10
7	Ignition Off Draw (IOD) Sense #1 and #2	30
8		30
12	Unused	20
13	Ignition Cigar Lighter	20
14	Instrument Cluster	10
16	Moonroof	15
19	Audio Amplifier	20
20	Radio / Head Unit	15
21	Security Siren	10
23	Auto Shutdown (ASD) Relay #3	15
24	Moonroof	25
26	Auto Shutdown (ASD) Relay #2	15
29	Battery Feed (Hot at All Times)	—
30	Ignition (Run) Heated Seats	20
31	Spare	—
37	Convertible Power Top Module	25
3	Center High-Mounted Stop Lamp (CHMSL) / Brake Switch	10
10	Instrument Cluster / Power Locks / Interior Lighting	20
11	Selectable Power Outlet (Center Console)	15
17	Wireless Control Module (WCM) / Clock / Steering Column Module (SCM)	10
22	Ignition (Run) Climate Control / Heated Cupholder	10
25	Ignition (Run) — Heated Mirrors	10
27	Ignition (Run) Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC)	10
28	Ignition (Run) Occupant Classification Module (OCM) / Occupant Restraint Controller (ORC)	10
33	Switch Bank / Diagnostic Link Connector (DLC) / Powertrain Control Module (PCM)	10
Cartridge Fuses
32	Auto Shutdown (ASD) Relay #1	30
34	Anti-Lock Braking System (ABS) Electronic Stability Control (ESC)	30
36	Passenger Door Module (PDM) Driver Door Module (DDM)	30
1	Convertible Power Top Module	40
9	Battery Feed — Power Seats	40
15	Radiator Cooling Fan Relay	40
18	Auto Shutdown (ASD) Relay	40
35	Anti-Lock Braking System (ABS) Electronic Stability Control (ESC)	40

2010–2011 Model Years

Fuse assignments for vehicles manufactured in the 2010 and 2011 model years.

Diagram
No.	Assignment	Amperage
Type “Mini”
2	All-Wheel Drive (AWD) Module	20
3	Center High-Mounted Stop Lamp (CHMSL) / Brake Switch	10
4	Ignition Switch	10
5	Trailer Tow	20
6	Power Mirror Switch / Climate Control Unit	10
7	Ignition Off Draw (IOD) Sense #1	30
8	Ignition Off Draw (IOD) Sense #2	30
10	Instrument Cluster / Power Locks / Interior Lighting	20
11	Selectable Power Outlet (Center Console)	15
12	Unused	20
13	Ignition	20
14	Instrument Cluster	10
16	Cigar Lighter Moonroof	15
17	Wireless Control Module (WCM) / Clock / Steering Column Module (SCM)	10
19	Audio Amplifier	20
20	Radio / Head Unit	15
21	Security Siren	10
22	Ignition (Run) Climate Control Unit Heated Cupholder	10
23	Auto Shutdown (ASD) Relay #3	15
24	Moonroof	25
25	Ignition (Run) Heated Mirrors	10
26	Auto Shutdown (ASD) Relay #2	15
27	Ignition (Run) — Occupant Classification Module (OCM) Occupant Restraint Controller (ORC)	10
28		10
29	Battery Feed (Hot at All Times)	—
30	Ignition (Run) — Heated Seats	20
31	Headlamp Washer	10
33	Switch Bank Diagnostic Link Connector (DLC) Powertrain Control Module (PCM)	10
37	Convertible Power Top Module	25
Cartridge Fuses
32	Auto Shutdown (ASD) Relay #1	30
34	Anti-Lock Braking System (ABS) Electronic Stability Control (ESC)	30
36	Passenger Door Module (PDM) / Driver Door Module (DDM)	30
1	Convertible Power Top Module	40
9	Battery Feed — Power Seats Partial Zero Emissions Vehicle (PZEV) Air Pump	40
15	Radiator Cooling Fan Relay	40
18	Auto Shutdown (ASD) Relay	40
35	Anti-Lock Braking System (ABS) Module Electronic Stability Control (ESC)	40
