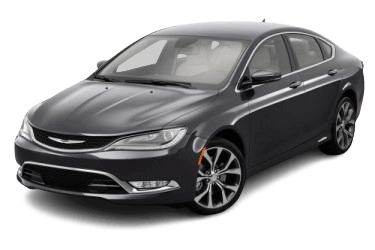

In this article, we will take a detailed look at the fuse diagrams for the Chrysler 200 (second generation): 2014, 2015, 2016, 2017 model year.
Fuses #75 and #60 in the engine bay are responsible for the cigarette lighter and 12V power outlets.
In the passenger compartment
Located on the left side dashboard, behind the plastic cover.
General view.
2016-2017 model year
Interior fuse box description for cars manufactured in 2016, 2017 years.
| Diagram | ||
|---|---|---|
|
||
| No. | Assigment | Amps |
| F93 | Right Side Low Beam Headlamp | 10 |
| F92 | Front Right Fog Lamp | 5 |
| F91 | Front Left Fog Lamp | 5 |
| F89 | Trunk Lamp | 5 |
| F53 | UCI Port (USB & AUX) | 7,5 |
| F51 |
|
10 |
| F49 | Lumbar Support | 7,5 |
| F48 | Horns (sound signal) | 20 |
| F43 | Front Washer Pump | 20 |
| F38 | All Doors Lock/Unlock | 20 |
| F37 | Aux. Switch Bank Module (ASBM) | 7,5 |
| F36 | Intrusion Module / Siren | 10 |
| F32 | Interior Lighting | 10 |
| F13 | Left Low Beam Headlamp | 15 |
2014-2015 model year
Interior fuse box description for cars manufactured in 2014, 2015 years.
| Diagram | ||
|---|---|---|
|
||
| No. | Assigment | Amps |
| F93 | Right Low Beam Headlamp | 10 |
| F92 | Front Right Fog Lamp | 5 |
| F91 | Front Left Fog Lamp | 5 |
| F89 | Trunk Lamp | 5 |
| F53 | UCI Port (USB & AUX) | 7,5 |
| F51 | Driver Window Switch / Power Mirrors - If Equipped | 10 |
| F49 | Lumbar Support | 7,5 |
| F48 | Horns | 20 |
| F43 | Front Washer Pump | 20 |
| F38 | All Doors Lock/Unlock | 20 |
| F37 | Aux. Switch Bank Module (ASBM) | 7,5 |
| F36 | Intrusion Module / Siren | 10 |
| F32 | Interior Lighting | 10 |
| F13 | Left Low Beam Headlamp | 15 |
In the engine compartment
Located near the battery, behind the plastic cover.
General view.
2016-2017 model year
Underhood fuse box description for cars manufactured in 2016, 2017 years.
| Diagram | ||
|---|---|---|
|
||
| No. | Assigment | Amps |
| F06 | Empty | - |
| F07 | Empty | - |
| F08 |
|
25 |
| F09 | Empty | - |
| F10 | Power Transfer Unit (PTU) | 20 |
| F100 | Empty | - |
| F11 | Empty | - |
| F12 | Brake Vacuum Pump | 20 |
| F13 |
|
10 |
| F14 |
|
10 |
| F15 | Empty | - |
| F16 | Ignition Coil | 20 |
| F17 | Empty | - |
| F18 | Empty | - |
| F20 | A/C Compressor Clutch | 10 |
| F21 | Empty | - |
| F22 | Radiator Fan Enable | 5 |
| F23 | Body Controller Module (BCM) - Feed 2 | 70 |
| F23 | Voltage Stability Module (VSM) #2 -If Equipped With Engine Stop/Start System | 30 |
| F24 | Empty | - |
| F25B | Front Washer Pump - If Equipped with Engine Stop/Start System | 20 |
| F26 | Empty | - |
| F27 | Empty | - |
| F28 | Transmission Control Module | 15 |
| F29 | Empty | - |
| F30 | Engine Control Module (ECM)/EPS/ Fuel Pump Relay Feed | 10 |
| F31 | Empty | - |
| F32 | Empty | - |
| F33 | Empty | - |
| F34 | Empty | - |
| F35 | Empty | - |
| F36 | Empty | - |
| F38 | Empty | - |
| F40 | Empty | - |
| F42 | Empty | - |
| F43 | Fuel Pump Motor | 20 |
| F44 | Empty | - |
| F47 | Empty | - |
| F51 | Empty | - |
| F52 | Empty | - |
| F55 | Blind Spot Sensors/Compass/Rearview Camera | 10 |
| F56 | Ignition Node Module (IGNM)/RF Hub | 15 |
| F57 | Empty | - |
| F58 | Occupant Classification Module/Voltage Stability Module (VSM) #2 - If Equipped With Engine Stop/Start System | 10 |
| F60 |
|
20 |
| F61 | Empty | - |
| F62 | Empty | - |
| F63 | Front Seats Heater | 20 |
| F64 | Steering Wheel Heater | 20 |
| F65 | In Vehicle Temperature Sensor / Humidity Sensor/Driver Assist System Module (DASM)/Park Assist (PAM) -If Equipped With Engine Stop/Start Module | 10 |
| F66 |
|
15 |
| F67 | In Vehicle Temperature Sensor/ Humidity Sensor/Drivers Assist System Module (DASM)/Park Assist (PAM) -If Equipped | 10 |
| F68 | Empty | - |
| F69 | Gear Shift Module (GSM)/Active Grill Shutter (AGS). - If Equipped/EPB SW | 10 |
| F70 | Intelligent Battery Sensor (IBS) -If Equipped with Engine Stop/Start Option | 5 |
| F71 | HID Headlamp Right - If Equipped with Engine Stop/Start Option | 20 |
| F72 | Mirrors Heater | 10 |
| F73 | Empty | - |
| F75 | Cigarette Lighter Fuse | 20 |
| F76 | Drivers Window SW- If Equipped | 10 |
| F77 | UCI Port/Brake Pedal Switch | 10 |
| F78 |
|
10 |
| F79 | Integrated Center Stack (ICS) / Switch Bank / Instrument Panel Cluster (IPC) / EPB SW | 10 |
| F80 | Radio | 20 |
| F81 | Empty | - |
| F82 | Empty | - |
| F85 | Empty | - |
| F86 | Horns - If Equipped With Engine Stop / Start Module | 20 |
| F87A | Left HID Headlamp - If Equipped Engine Stop/Start Module | 20 |
| F88 | Collision Mitigation Module (CMM) / Electrochromatic Mirror/Haptic Lane Feedback Module (Half) / Humidity Sensor- If Equipped | 10 |
| F89 | Empty | - |
| F90 | Empty | - |
| F91 | Empty | - |
| F92 | Empty | - |
| F95 | Electrochromatic Mirror/Rain/Pass. Window SW/Power Outlet Console Illumination/Sensor/Sunroof - If Equipped | 10 |
| F96 | Occupant Restraint Controller (ORC) (Airbag System) | 10 |
| F97 | 10 | |
| F98 | Audio Amp | 25 |
| F99 | Empty | - |
| Circuit Brakers | ||
| CB1 | Power Seat Driver | - |
| CB2 | Power Seat Passenger | - |
| CB3 | Power Windows | - |
| Cartridge Fuses | ||
| F19 | Starter Solenoid | 40 |
| F37 | Radiator Fan PWM Controller | 50 |
| F39 | HVAC Blower Motor | 40 |
| F41 | Voltage Stability Module (VSM) #1 -If Equipped With Engine Stop/Start Option | 50 |
| F41 | Body Controller Module (BCM) - Feed #1 | 60 |
| F45 | Passenger Door Module (PDM) - If Equipped | 30 |
| F46 | Moonroof - If Equipped | 25 |
| F48 | Driver Door Module (DDM) | 30 |
| F49 | Power Inverter (115V A/C) - If Equipped | 30 |
| F50 | Windshield Wiper Smart Motor (WWSM) | 30 |
| F53 | Brake System Module BSM & Valves | 30 |
| F54 | Body Controller Module (BCM) -Feed #3 | 30 |
| F59 | Drivetrain Control Module (DTCM) | 30 |
| F74 | Rear Defroster/Defogger | 30 |
| F83 | Engine Control Module (ECM) | 20 |
| F84 | Left Electric Park Brake (EPB) | 30 |
| F93 | Brake System Module (BSM) - Pump Motor - If Equipped | 40 |
| F94 | Right Electric Park Brake (EPB) | 30 |
| Relays | ||
| K1 | Starter Solenoid | |
| K2 | ASD | |
| K3 | Starter | |
| K4 | Fuel Heater | |
| K5 | Empty | |
| K6 | Empty | |
| K7 | Empty | |
| K8 | Blower Motor | |
| K9 | Run/Start Relay | |
| K10 | Rear Defog | |
| K11 | Run #1 | |
| K12 | Run/Accessory | |
| K13 | Run #2 | |
2014-2015 model year
Underhood fuse box description for cars manufactured in 2014, 2015 years.
| Diagram | ||
|---|---|---|
|
||
| No. | Assigment | Amps |
| F06 | Empty | - |
| F07 | Empty | - |
| F09 | Empty | - |
| F11 | Empty | - |
| F15 | Empty | - |
| F17 | Empty | - |
| F18 | Empty | - |
| F19 | Starter Solenoid | 40 |
| F21 | Empty | - |
| F24 | Empty | - |
| F26 | Empty | - |
| F27 | Empty | - |
| F29 | Empty | - |
| F31 | Empty | - |
| F32 | Empty | - |
| F33 | Empty | - |
| F34 | Empty | - |
| F35 | Empty | - |
| F36 | Empty | - |
| F37 | Radiator Fan PWM Controller | 50 |
| F38 | Empty | - |
| F39 | HVAC Blower Motor | 40 |
| F40 | Empty | |
| F41 | Voltage Stability Module (VSM) #1 - If Equipped With Stop/Start Engine Option | 50 |
| F41 | Body Controller Module (BCM) - Feed 1 | 60 |
| F42 | Empty | - |
| F44 | Empty | - |
| F45 | Passenger Door Module (PDM) | 30 |
| F46 | Moonroof | 25 |
| F47 | Empty | - |
| F48 | Driver Door Module (DDM) | 30 |
| F49 | Power Inverter (115V A/C) - If Equipped | 30 |
| F50 | Windshield Wiper Smart Motor (WWSM) | 30 |
| F51 | Empty | - |
| F52 | Empty | - |
| F53 | Brake System Module BSM & Valves | 30 |
| F54 | Body Controller Module (BCM) - Feed 3 | 30 |
| F57 | Empty | - |
| F59 | Drivetrain Control Module (DTCM) | 30 |
| F61 | Empty | - |
| F62 | Empty | - |
| F68 | Empty | - |
| F73 | Empty | - |
| F74 | Rear Defroster/Defogger | 30 |
| F81 | Empty | |
| F82 | Empty | - |
| F83 | Engine Control Module (ECM) | 20 |
| F84 | Electric Park Brake (EPB) - Left | 30 |
| F85 | Empty | - |
| F89 | Empty | - |
| F90 | Empty | - |
| F91 | Empty | - |
| F92 | Empty | - |
| F94 | Electric Park Brake (EPB) - Right | 30 |
| F99 | Empty | |
| F100 | Empty | - |
| F93 | Brake System Module (BSM) - Pump Motor -If Equipped | 40 |
| Circuit Brakers | ||
| CB1 | Driver Power Seat | |
| CB2 | Passenger Power Seat | |
| CB3 | Power Windows | |
| Cartridge Fuses | ||
| F08 | Engine Control Module (ECM) / Fuel Injectors | 25 |
| F10 | Power Transfer Unit (PTU) | 20 |
| F12 | Brake Vacuum Pump | 20 |
| F13 | Engine Control Module (ECM) / VSM (Stop/ Start Only) | 10 |
| F14 | Drivetrain Control Module (DTCM) / Power Transfer Unit (PTU) - If Equipped / RDM / Brake System Module (BSM) / Brake Pedal S. | 10 |
| F16 |
|
20 |
| F20 | A/C Compressor Clutch | 10 |
| F22 | Radiator Fan Enable | 5 |
| F23 | Voltage Stability Module (VSM) #2 - If Equipped With Stop/Start Engine Option | 50 |
| F23 | Body Controller Module (BCM) - Feed 2 | 70 |
| F25B | Front Washer Pump - If Equipped with Stop/ Start Option | 20 |
| F28 | Transmission Control Module (TCM) | 15 |
| F30 | Engine Control Module (ECM) / EPS | 10 |
| F43 | Fuel Pump Motor | 20 |
| F55 | Blind Spot Sensors/Compass/Rearview Camera - If Equipped | 10 |
| F56 | Ignition Node Module (IGNM) / RF Hub | 15 |
| F58 | Occupant Classification Module/Voltage Stability Module (VSM) #2 - If Equipped With Stop/Start Engine Option | 10 |
| F60 |
|
20 |
| F63 | Heated Seats Front | 20 |
| F64 | Heated Steering Wheel | 20 |
| F65 | In Car Temperature Sensor/Humidity Sensor/ Driver Assist System Module (DASM)/Park Assist (PAM) - If Equipped With Stop/Start Engine Option | 10 |
| F66 | Instrument Panel Cluster (IPC)/Electronic Climate Control (ECC) | 15 |
| F67 | In Car Temperature Sensor/Humidity Sensor/ Drivers Assist System Module (DASM)/Park Assist (PAM) - If Equipped | 10 |
| F69 | Gear Shift Module (GSM)/Active Grill Shutter (AGS). - If Equipped / EPB SW | 10 |
| F70 | Intelligent Battery Sensor (IBS) - If Equipped with Stop/Start Option | 5 |
| F71 | HID Headlamp Right - If Equipped with Stop/Start Option | 20 |
| F72 | Heated Mirrors | 10 |
| F75 | Cigar Lighter Fuse | 20 |
| F76 | Drivers Window SW | 10 |
| F77 | UCI Port/Brake Pedal Switch | 10 |
| F78 | Diagnostic Port/Steering Column Control Module (SCCM) | 10 |
| F79 | Integrated Center Stack (ICS)/Switch Bank/ Instrument Panel Cluster (IPQ/EPB SW | 10 |
| F80 | Radio | 20 |
| F86 | Horns - If Equipped With Stop/Start Engine Option | 20 |
| F87A | HID Headlamp Left - If Equipped Stop/Start Only | 20 |
| F88 | Collision Mitigation Module (CMM)/ Electrochromatic Mirror/Haptic Lane Feedback Module (HalO/Humidity Sensor- If Equipped | 10 |
| F95 | Electrochromatic Mirror/Rain/Pass. Window SW/Power Outlet Console Illumination/ Sensor/Sunroof - If Equipped | 10 |
| F96 | Occupant Restraint Controller (ORC) (Airbag System) | 10 |
| F97 | 10 | |
| F98 | Audio Amplifier | 25 |
| Relays | ||
| K1 | Starter Solenoid | - |
| K2 | ASD | - |
| K3 | Starter | - |
| K4 | Fuel Heater | - |
| K5 | Empty | - |
| K6 | Empty | - |
| K7 | Empty | - |
| K8 | Blower Motor | - |
| K9 | Run/Start Relay | - |
| K10 | Rear Defog | - |
| K11 | Run #1 | - |
| K12 | Run/Accessory | - |
| K13 | Run #2 | - |
