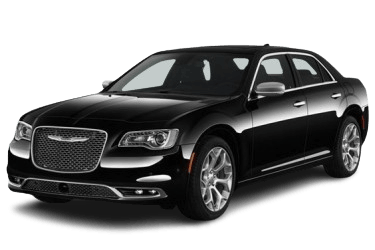

Fuses and relays Chrysler 300 / 300C (LD; 2011–2019)

In this article, we provide a detailed overview of the fuse box diagrams for the second-generation Chrysler 300 / 300C (LD), covering the 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, and 2019 model years.

Fuses #12, #38, and #61 in the rear fuse box protect the cigarette lighter and 12-volt power outlets.

Rear Power Distribution Center (Trunk)

Located in the trunk under the spare tire access panel, adjacent to the battery.

Fuse box access.

Diagram
No.	Description	Amperage (A)
Type “Mini”
12	Cigarette Lighter Fuse, Instrument Panel & Rear Console Power Outlet / Rear Center Console Dual USB Port	20
22	2015–2017: Right Spotlight – Police / Integrated Center Stack (LA) 2011–2014: Empty 2018–2019: Cyber Security Gateway Module	20/10
23	Fuel Filler Door / Diagnostic Port	10
24	2010–2014: Radio Display 2015–2019: Integrated Center Stack	15
25	Tire Pressure Monitoring System (TPMS)	10
26	2011–2014: Empty 2015–2017: Transmission / Electronic Shift Module / Fuel Pump 2018–2019: Cygnus Transmission Module / Electronic Shift Module	15/25
27	Audio Amplifier	25
31	Power Seats	25
32	HVAC Module / Instrument Cluster	15
33	Ignition Switch / Wireless Ignition Node	15
34	Steering Column Control Module / Analog Clock	10
35	Intelligent Battery Sensor (IBS)	10
36	2015–2019: Electronic Exhaust Valve 2011–2014: Empty	15
37	Radio	15/20
38	Center Console Armrest Power Outlet (Chrysler 300 / 300C Cigarette Lighter Fuse)	20
43	Heated Rear Seats / Heated Steering Wheel	25/20
44	Park Assist System / Blind Spot Monitoring / Rearview Camera	10
45	Instrument Cluster / Auto-Dimming Rearview Mirror / Compass	15
46	2010–2014: Adaptive Cruise Control 2015–2019: Empty	10
47	Adaptive Front-Lighting System / Daytime Running Lights (DRL)	10
48	Active Damping Suspension System	20
51	Heated Front Seats	20
52	Heated Cupholders / Rear Heated Seat Switches	10
53	HVAC Module / Cabin Temperature Sensor	10
54	2015–2016: Airbag Module (LA) 2011–2014 & 2017–2019: Empty	10
58	Airbag Module	10
59	2015–2016: Adjustable Pedals – Police 2011–2014: Empty	20
60	2015–2016: Heated Windshield Washer Nozzles (LD) 2011–2014 & 2017–2019: Empty	5
61	2015: Chrysler 300 / 300C Cigar Lighter (LA) Other years: Empty	20
64	Power Windows (Rear)	25
65	Airbag Module	10
67	2011–2014: Run Sense 2015: Rain and Light Sensor / Sunroof 2016–2019: Rain and Light Sensor / Sunroof / Auto-Dimming Rearview Mirror / Center Console Power Outlet Illumination / Police Run/Accessory Relay	15/10
68	2011–2014: Illumination / Rear Sunshade 2015–2019: Dual USB Power Outlet – Run/Accessory Sense (LD/LX) / Rear Sunshade (LD/LX)	15/10
Cartridge Fuses
2	Front Power Distribution Center (PDC) Feed #1	60
4	Front Power Distribution Center (PDC) Feed #2	60
5	Sunroof 2015–2019: Dome Lamp – Police	30
6	Exterior Lighting #1	40
7	Exterior Lighting #2	40
8	Interior Lighting / Washer Pump	30
9	Power Locks	30
10	Driver Door Module	30
11	Passenger Door Module	30
15	HVAC Blower Motor	40
16	2015–2019: Left Spotlight – Police 2011–2014: Empty	20
17	2018–2019: Right Spotlight – Police 2014–2017: Reserve	20
18	2015–2019: Module Network Interface – Police 2011–2014: Empty	30
21	2015–2019: Fuel Pump 2011–2014: Empty	30
40	2018–2019: Fuel Pump (6.2L SRT Demon Only) 2011–2014: Empty	30
41		30
42	Rear Window Defroster	30

Front Power Distribution Center (Engine Compartment)

Located on the right side of the engine compartment, concealed beneath a plastic cover.

General overview of the front fuse box.

Diagram
No.	Description	Amperage (A)
Type “Mini”
1	Empty	—
9	All-Wheel Drive (AWD) Module	20
10	Security Module 2017: Intrusion Module (300) / Underhood Lamp – Police	10/5
11	Horns	20
12	A/C Compressor Clutch	10
13	Empty	—
14	Anti-Lock Brake System (ABS) 2015–2019: Reserve	25
15	Transmission (25A) 2015–2019: Left High-Intensity Discharge (HID) Headlamp (20A)	25/20
16	Empty 2015–2019: Right High-Intensity Discharge (HID) Headlamp	20
28	Fuel Pump 2015–2019: Empty	25
29	Transmission / Electronic Shifter	15
30	Empty	—
31	Engine Control Module (ECM)	25
32	Empty	—
33		—
34	Powertrain Control Module (PCM) #1 2017: Auto Shutdown (ASD) Relay Feed #1	25
35	Powertrain Control Module (PCM) #2 2017: Auto Shutdown (ASD) Relay Feed #2	20
36	Anti-Lock Brake System (ABS) Module 2019: Anti-Lock Brake System (ABS) Module / Steering Column Lock Module	10
37	Engine Control Module (ECM) / Radiator Cooling Fan Relays 2016: Electric Power Steering (EPS) Module / Fuel Pump Relay / 5-Speed Transmission	10
38	Airbag Module	10
39	Power Steering Module / A/C Clutch Relay 2016–2019: Vacuum Pump Relay 2017: Electric Power Steering (EPS)	10
48	AWD Module / Front Axle Disconnect (FAD)	10
49	Empty	—
50	Empty	—
51	Vacuum Pump	20
52	2015, 2016: Adaptive Cruise Control (LD/LX)	5
53	Empty	—
Cartridge Fuses
2	Radiator Cooling Fan #1	40
3	Power Steering #1 2015, 2016: Radiator Cooling Fan (6.2L Supercharged)	50
4	Starter	30
5	Anti-Lock Brake System (ABS) 2015, 2016: Electronic Stability Control (ESC)	40
6	2011–2014: Anti-Lock Brake System (ABS) (25A) 2015, 2016: Electronic Stability Control (ESC) (30A) 2017–2019: Anti-Lock Brake System (ABS) (30A)	25/30
7	2011–2014: Empty 2016–2019: Police Ignition Run / Accessory #1	20
8	Empty 2016, 2017: Police Ignition Run / Accessory #2 (50A) 2018–2019: Radiator Cooling Fan (6.2L Supercharged) / Police Ignition Run / Accessory #2 (50A)	20/50
18	Radiator Cooling Fan #2	50
19	Power Steering #2 2015: Radiator Cooling Fan (6.2L Supercharged)	50
20	Windshield Wiper Motor	30
21	Headlamp Washers	30
22	2015–2019: Engine Coolant Pump (6.2L Supercharged) / Police Battery Feed #3	40
23	2015–2019: Police Battery Feed #1	20
24	2015–2016: Police Battery Feed #3 2017–2019: Radiator Cooling Fan (6.2L Supercharged) / Police Ignition Run/Accessory Feed #3	20/50
