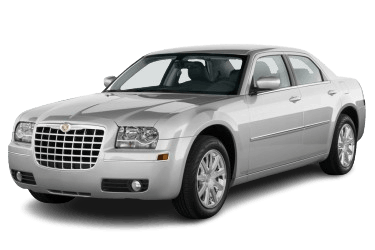

This article provides a detailed overview of the fuse box diagrams for the Chrysler 300 / 300C (LX platform; first generation, facelift): 2008, 2009, and 2010 model years.
Fuses #9, #16, and #18 in the luggage compartment distribute power to the cigarette lighter and 12-volt power receptacles.
Luggage Compartment (Rear Power Distribution Center)
Located in the rear cargo area beneath the spare tire cover, adjacent to the battery.
Fuse box access example.
2010 Model Year
Rear Power Distribution Center diagram and fuse assignments for the 2010 model year.
| Diagram | ||
|---|---|---|
|
||
| No. | Assignment | Amperage (A) |
| “Mini” Fuses | ||
| 6 | Fuel Pump | 20 |
| 7 | Heated Rear Seats | 15 |
| 8 | Diagnostic Link Connector (DLC) Wireless Control Module (WCM) Wireless Ignition Node (WIN) |
15 |
| 9 |
|
20 |
| 14 | A/C and Heater Control / Instrument Cluster / Security Module | 10 |
| 15 | Trailer Tow Brake Module | 20 |
| 17 | Instrument Cluster | 20 |
| 18 |
|
20 |
| 19 | Stop Lights | 10 |
| 27 | Occupant Restraint Controller (ORC) | 10 |
| 28 |
|
10 |
| 29 |
|
5 |
| 30 | Door Modules / Power Mirrors / Steering Column Control Module (SCCM) | 10 |
| 35 |
|
5 |
| 36 | Hands-Free Phone / Video Monitor / Radio | 25 |
| 37 | Transmission | 15 |
| 38 |
|
10 |
| 39 | Heated Mirrors | 10 |
| 40 | Automatic Dimming Rearview Mirror / Heated Seats / Switch Bank | 5 |
| 41 | All-Wheel Drive (AWD) Module | 15 |
| Cartridge Fuses | ||
| 1 | Ignition Off Draw (IOD): Cavity 1 of the Rear Power Distribution Center contains a black IOD fuse utilized for vehicle processing during assembly. The service replacement part is a 60 A yellow cartridge fuse. | 60 |
| 2 | Integrated Power Module (IPM) | 40 |
| 4 | 40 | |
| 5 | Heated Seats (If Equipped) | 30 |
| 42 | Front Blower Motor | 30 |
| 43 | Rear Window Defroster | 30 |
| 44 | Audio Amplifier (If Equipped) / Sunroof (If Equipped) | 20 |
| 11 * | Instrument Cluster (Without Power Memory Seat) / Driver Seat Switch (With Power Memory Seat) / Memory Module (If Equipped) | 25 |
| 12 * | Passenger Seat Switch | 25 |
| 13 * | Door Modules (Except Base) / Driver Door Lock Switch (Base) / Driver Express Power Window Switch (If Equipped) / Passenger Door Lock Switch (Base) | 25 |
| * Self-resetting fuses (circuit breakers) | ||
2008–2009 Model Years
Rear Power Distribution Center diagram and fuse assignments for the 2008 and 2009 model years.
| Diagram | ||
|---|---|---|
|
|
||
| No. | Assignment | Amperage (A) |
| “Mini” Fuses | ||
| 6 | Fuel Pump | 20 |
| 7 | Heated Rear Seats | 15 |
| 8 |
|
15 |
| 9 |
|
20 |
| 14 | A/C and Heater Control / Instrument Cluster / Security Module (If Equipped) | 10 |
| 15 | Trailer Tow Brake Module | 20 |
| 17 | Instrument Cluster | 20 |
| 18 | Selectable 12-Volt Power Receptacle | 20 |
| 19 | Stop Lights | 10 |
| 27 | Occupant Restraint Controller (ORC) | 10 |
| 28 | Ignition Run | 10 |
| 29 | Adaptive Cruise Control (ACC) / Instrument Cluster / Electronic Stability Program (ESP) / Powertrain Control Module (PCM) / Stop Light Switch | 5 |
| 30 | Door Modules / Power Mirrors / Steering Column Control Module (SCCM) | 10 |
| 35 | Antenna Module / Power Mirrors / Rain Sensor | 5 |
| 36 | Hands-Free Phone / Video Monitor / Radio | 20 |
| 37 | Transmission | 15 |
| 38 | Analog Clock / Cargo Area Light / Satellite Receiver (SDARS) Video / Vehicle Information Module | 10 |
| 39 | Heated Mirrors | 10 |
| 40 | Automatic Dimming Rearview Mirror / Heated Seats / Switch Bank | 5 |
| 41 | A/C and Heater Control / Headlights / Park Assist / Tire Pressure Monitoring System (TPMS) / Occupant Restraint Controller (ORC) | 10 |
| Cartridge Fuses | ||
| 1 | Ignition Off Draw (IOD) | 60 |
| 2 | Integrated Power Module (IPM) | 40 |
| 4 | 40 | |
| 5 | Heated Seats | 30 |
| 42 | Front Blower Motor | 30 |
| 43 | Rear Window Defroster | 30 |
| 44 | Audio Amplifier / Sunroof | 20 |
| 11* | Instrument Cluster (Without Power Memory Seat) / Driver Seat Switch (With Power Memory Seat) / Memory Module | 25 |
| 12* | Passenger Seat Switch | 25 |
| 13* | Door Modules (Except Base) / Driver Door Lock Switch (Base) / Driver Express Power Window Switch / Passenger Door Lock Switch (Base) | 25 |
| * Self-resetting fuses (circuit breakers) | ||
Engine Compartment (Front Power Distribution Center)
The fuse box is located on the right side of the engine compartment, concealed beneath a plastic cover.
General overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Assignment | Amperage (A) |
| Cartridge Fuses | ||
| 10 | Windshield Wiper | 30 |
| 11 | Anti-Lock Brake System (ABS) Valves | 30 |
| 12 | Radiator Fan | 40 |
| 13 | Anti-Lock Brake System (ABS) Pump Motor | 50 |
| 14 | Radiator Fan | 60 |
| 15 | 50 | |
| “Mini” Fuses | ||
| 1 | Windshield Washer Motor | 15 |
| 2 | Powertrain Control Module (PCM) | 25 |
| 3 | Ignition Run/Start | 25 |
| 4 | Alternator / Exhaust Gas Recirculation (EGR) Solenoid | 25 |
| 6 | Ignition Coils / Fuel Injectors / Short Runner Valve (SRV) | 25 |
| 8 | Starter | 25 |
