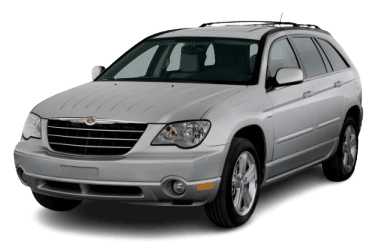

This article provides a detailed overview of the power distribution and fuse box diagrams for the first-generation Chrysler Pacifica (CS platform), covering the 2003, 2004, 2005, 2006, 2007, and 2008 model years.
Fuses #24 and #26 protect the cigarette lighter and power receptacle circuits.
Engine Compartment Power Distribution Center (PDC)
Located adjacent to the battery, beneath the protective cover.
Example of cover removal for access.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| R1 | Rear Window Defogger Relay | |
| R2 | Transmission Control Relay | |
| R3 | Run Relay | |
| R4 | Not Used | |
| R5 | Fuel Pump Relay | |
| R6 | Door Node Relay | |
| R7 | Starter Relay | |
| R8 | Not Used | |
| R9 | Front Blower Motor Relay | |
| R10 | Rear Auxiliary Blower Relay | |
| R11 | Horn Relay | |
| R12 | Auto Shut Down (ASD) Relay | |
| R13 | A/C Compressor Clutch Relay | |
| R14 | Not Used | |
| R15 | Manifold Tuning Valve Relay (3.5L) | |
| R16 | Front Wiper Relay (On / Off) | |
| R17 | Front Wiper Relay (High / Low Speed) | |
| R18 | Accessory Relay | |
| 1 | Anti-lock Brake System (ABS) Module | 40 A |
| 2 | Not Used | — |
| 3 | Fuses: #46, #47, #48, #49, #50 | 30 A |
| 4 | Body Control Module (BCM) | 40 A |
| 5 | Rear Window Defogger Relay | 40 A |
| 6 | Front Wiper Relay (On / Off and High / Low Speed) | 30 A |
| 7 | Starter Relay | 40 A |
| 8 | Power Seat Circuit Breaker | 40 A |
| 9 | Sunroof / Moonroof Power Module | 40 A |
| 10 | Trailer Tow Receptacle | 30 A |
| 11 | Power Liftgate Module | 40 A |
| 12 | Not Used | — |
| 13 | Radiator Cooling Fan | 40 A |
| 14 | Not Used | — |
| 15 | Anti-lock Brake System (ABS) Module | 40 A |
| 24 | Rear Cigarette Lighter and Power Receptacle | 20 A |
| 25 | Navigation System, Audio Amplifier, Radio, Hands-Free System, Moonroof, Electrochromic (Auto-Dimming) Rearview Mirror, Overhead Console | 15 A |
| 26 | Front Console Cigarette Lighter and Power Receptacle | 20 A |
| 27 | Not Used | — |
| 28 | Horn Relay | 25 A |
| 29 | Instrument Cluster, Stop Lamp Switch | 20 A |
| 30 | Ignition Switch — Park Assist Module, Sentry Key Remote Entry Module (SKREEM), Body Control Module (BCM), Starter Relay, Instrument Panel Switch Pod, A/C Compressor Clutch Relay, Powertrain Control Module (PCM), Fuel Pump Relay | 10 A |
| 31 | Body Control Module (BCM) | 20 A |
| 34 | Rear Auxiliary Blower Control Module | 10 A |
| 35 | Not Used | — |
| 36 | Powertrain Control Module (PCM), Transmission Pressure Switch and Solenoid Block | 20 A |
| 37 | Auto Shut Down (ASD) Relay — Short Runner Valve Solenoid (3.5L), Powertrain Control Module (PCM), Noise Suppressor, Fuel Injectors, Ignition Coils | 25 A |
| 38 | A/C Compressor Clutch Relay, Manifold Tuning Valve Relay (3.5L) | 20 A |
| 39 | Powertrain Control Module (PCM), Fuel Pump Relay | 20 A |
| 40 | Driver Door Module: Power Seat, Power Mirrors, Power Windows | 40 A |
| 41 | Passenger Door Module: Power Mirrors, Power Windows | 40 A |
| 42 | Manual Temperature Control (MTC) — Blower Motor Resistor Block; Automatic Temperature Control (ATC) — Front Blower Power Module | 40 A |
| 44 | Left and Right Second-Row Heated Seat Switches, Heated Seat Interface Module | 25 A |
| 45 | Automatic Temperature Control (ATC) Module, A/C Heater Control Module, ABS Module | 10 A |
| 46 | Passenger Door Module: Door Locks, Power Windows, Courtesy Lamps, Power Mirrors | 20 A |
| 47 | Driver Door Module: Courtesy Lamps, Power Seat, Door Locks, Power Windows, Power Mirrors | 20 A |
| 48 | Hands-Free System, Body Control Module (BCM), Overhead Console, Navigation System | 15 A |
| 49 | Audio Amplifier | 25 A |
| 50 | DVD/CD Changer, Radio and Satellite Radio, Instrument Panel Switch Pod, ATC Module, SKREEM | 15 A |
