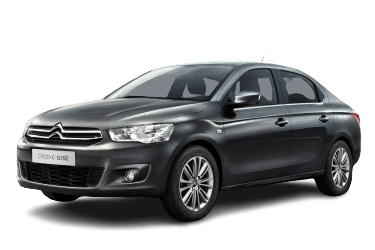

Introduced at the 2012 Paris Motor Show, the Citroën C-Elysée is a counterpart to the Peugeot 301, designed specifically for the Eastern European and North African markets. The C-Elysée was developed in France and is manufactured in Vigo, Spain. This article provides a detailed overview of the fuse box diagrams for the Citroën C-Elysée (PF1 platform; D / M3 code) for the 2012 through 2017 model years.
This section details the locations and provides photographs of the power distribution boxes. The fuses protecting the “Cigarette lighter” and “Fuel pump” circuits are highlighted in bold.
Passenger Compartment Fuse Box
Located on the driver's side, in the lower section of the dashboard.
Example of fuse box access.
General view of the Citroën C-Elysée passenger compartment fuse box.
| Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Circuit Protected | Rating (A) |
| F02 | Headlamp leveling system, OBD-II diagnostic connector, HVAC control panel | 5 |
| F09 | Security alarm system (aftermarket) | 5 |
| F11 | Auxiliary heater module | 5 |
| F13 | Parking assist system (aftermarket) | 5 |
| F14 | HVAC control panel | 10 |
| F16 | Cigarette lighter, 12V power outlet | 15 |
| F17 | OEM audio system (factory-installed) | 15 |
| F18 | Audio system / Bluetooth module (aftermarket) | 20 |
| F19 | Multifunction monochrome display (Type C) | 5 |
| F23 | Interior dome lighting, map lights | 5 |
| F26 | Horn | 15 |
| F27 | Windshield washer pump | 15 |
| F28 | Ignition switch and electronic steering column lock | 5 |
| F29 | Rear window defogger | 25 |
| F30 | Heated exterior side mirrors | 10 |
| F31 | Spare | - |
| F32 | Spare | - |
| F33 | Front power windows | 30 |
| F34 | Rear power windows | 30 |
| F35 | Heated front seats | 30 |
| F36 | Spare | - |
| F37 | Trailer tow module | 20 |
Engine Compartment Fuse Box
Located on the left side of the engine compartment, adjacent to the battery.
| Engine Compartment Fuse Assignments | ||
|---|---|---|
Representative photo of the fuse block. |
||
Fuse box diagram. |
||
| No. | Circuit Protected | Rating (A) |
| F14 | Heated lower windshield (wiper de-icer) | 15 |
| F15 | A/C compressor clutch | 5 |
| F16 | Front fog lamps | 15 |
| F18 | High beam headlamp (right) | 10 |
| F19 | High beam headlamp (left) | 10 |
| F29 | Windshield wiper motor | 40 |
| F30 | Glow plug control module | 80 |
