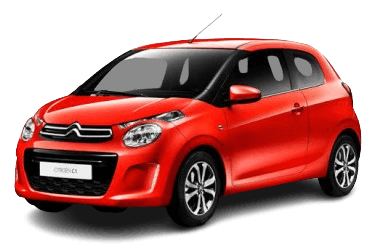

The Citroën C1 is an A-segment city car jointly developed by PSA Peugeot Citroën and Toyota. It is assembled at Toyota Peugeot Citroën Automobile Czech, s.r.o. (TPCA) in Kolín, Czech Republic. The second-generation Citroën C1 was unveiled at the 2014 Geneva Motor Show. This article provides a detailed overview of the fuse box diagrams for the second-generation Citroën C1 (AB40 platform; 1KR-FE and EB2D engines) covering the 2014, 2015, 2016, 2017, 2018, 2019, 2020, and 2021 model years.
Below, you will find the locations and configurations of the power distribution boxes. The fuse assigned to the "cigarette lighter" (12V accessory power outlet) is highlighted in bold.
Engine Compartment Fuse Box
The primary fuse box is located on the driver's side, adjacent to the windshield cowl.
Remove the plastic cowl panel below the windshield by depressing the two retaining clips. Unsnap the fuse box cover by pressing the release tab on the right side.
General layout overview.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Amperage (A) |
| 1 | Right headlamp - low beam | 10 |
| 2 | Left headlamp - low beam, headlamp leveling system | 10 |
| 3 | Right headlamp - high beam | 7.5 |
| 4 | Left headlamp - high beam, instrument cluster, multi-information display | 7.5 |
| 5* | Electronic fuel injection (EFI) system | 15 |
| 6 * | 7.5 | |
| 7 * | 15 | |
| 8* | Radiator cooling fan | 7.5 |
| 9 | Air conditioning (A/C) compressor | 7.5 |
| 10** | Electronic fuel injection (EFI) system, stop lamps, center high-mounted stop lamp (CHMSL) | 7.5 |
| 11 | Dome lamp, luggage compartment lighting | 5 |
| 12 | Turn signal indicators, hazard warning flashers, instrument cluster, multi-information display | 10 |
| 13 | Horn | 10 |
| 14 | Body control module (BCM) | 30 |
| 15** | Efficient Tronic Gearbox (ETG) | 7.5 |
| 16 | Electronic fuel injection (EFI) system | 7.5 |
| 17 | Keyless entry receiver | 7.5 |
| 18** | Battery / Main power | 7.5 |
| 19 | Electronic fuel injection (EFI) system, radiator cooling fan | 25 |
| 20 | Starter motor | 30 |
| 21 | Electronic steering column lock | 7.5 |
| 22 | Front lighting system | 25 |
| 23 | Electronic fuel injection (EFI) system | 7.5 |
| 24 | Electronic fuel injection (EFI) system, starter motor, ETG transmission, Start-Stop system | 7.5 |
| 25 | Audio system, keyless entry receiver | 15 |
| 26 | Instrument cluster, multi-information display | 7.5 |
| 27 | Vehicle Stability Control (VSC) module | 7.5 |
| 28 | Passenger compartment fuse box (Main feed) | 60 |
| 29 ** | Rear window defogger and heated exterior mirrors, heated seats, power canvas roof mechanism, Anti-lock Braking System (ABS), Vehicle Stability Control (VSC), radiator cooling fan, front fog lamps, LED daytime running lamps (DRL) | 125 *** |
| 30 | ETG transmission | 50 |
| Start-Stop system | 40 | |
| 31 | Electric Power Steering (EPS) | 50 |
| 32 | Radiator cooling fan | 50* |
| 30 | ||
| 40 | ||
| 33 | Anti-lock Braking System (ABS), Vehicle Stability Control (VSC) | 50 |
| 34 | Spare | 10 |
| 35 | Spare | 20 |
| 36 | Spare | 30 |
| 37 | Rear window defogger and heated exterior mirrors | 30 |
| 38 | Anti-lock Braking System (ABS), Vehicle Stability Control (VSC) | 30 |
| 39 | Front fog lamps, instrument cluster, multi-information display | 7.5 |
| 40 | LED daytime running lamps (DRL) | 7.5 |
| 41 | Heated right seat | 15 |
| 42 | Power canvas roof mechanism | 20 |
| 43 | Heated left seat | 15 |
Note: * VTi 82 engine. ** VTi 68 engine. *** Replacement by an authorized CITROËN service center only.
Passenger Compartment Fuse Box
The interior fuse box is located beneath the dashboard on the driver's side. It is accessible by removing the protective fascia.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Amperage (A) |
| 1 | Electronic fuel injection (EFI) system, audio system, Vehicle Stability Control (VSC) | 5 |
| 2 | Windshield and rear window washer pump | 15 |
| 3 | Body control module (BCM), instrument cluster, multi-information display, air conditioning (A/C) system, rear window defogger and heated exterior mirrors, heated seats, power canvas roof mechanism, audio system | 5 |
| 4 | Electric Power Steering (EPS), Start-Stop system ** | 5 |
| 5 | Rear window wiper motor | 15 |
| 6 | Radiator cooling fan, Anti-lock Braking System (ABS), Vehicle Stability Control (VSC) | 5 |
| 7 | Windshield wiper motor | 25 |
| 8 | Heated exterior mirrors | 10 |
| 9 | Citroën C1 "cigarette lighter" fuse, 12V accessory power outlet (120W max.) | 15 |
| 10 | Power exterior mirrors, audio system, Start-Stop system, instrument cluster, multi-information display | 7.5 |
| 11 | Electronic steering column lock, electronic fuel injection (EFI) system, ETG transmission | 5 |
| 12 | Supplemental Restraint System (SRS) / Airbags | 7.5 |
| 13 | Instrument cluster, multi-information display, Start-Stop system | 5 |
| 14 | Electric Power Steering (EPS), electronic fuel injection (EFI) system, stop lamps | 15 |
| 7.5 7.5 ** |
||
| 15 | Electronic fuel injection (EFI) system, Start-Stop system | |
| 10 | ||
| 16 | On-Board Diagnostics (OBD) port | 7.5 |
| 17 | Stop lamps, center high-mounted stop lamp (CHMSL), electronic fuel injection (EFI) system, Anti-lock Braking System (ABS), Vehicle Stability Control (VSC), ETG transmission, keyless entry receiver | 10 |
| 18 | Parking lamps, license plate lamps, rear fog lamp, front fog lamps, tail lamps, instrument panel illumination dimmer | 10 |
| 19 | Air conditioning (A/C) system | 40 |
| 20 | Air conditioning (A/C) system, On-Board Diagnostics (OBD) port, parking lamps, license plate lamps, rear fog lamp, front fog lamps, tail lamps, instrument panel illumination dimmer, stop lamps, center high-mounted stop lamp (CHMSL), electronic fuel injection (EFI) system, Anti-lock Braking System (ABS), Vehicle Stability Control (VSC), ETG transmission, keyless entry receiver, power windows | 40 |
| 21 | Electronic fuel injection (EFI) system, Start-Stop system, body control module (BCM) | 30 |
| 22 ** | Electronic fuel injection (EFI) system | 7.5 |
| 23 ** | Electronic fuel injection (EFI) system, Start-Stop system | 20 |
| 24 | Body control module (BCM) | 25 |
| 25 | Power windows | 30 |
| 26 | 25 | |
| 27 | Air conditioning (A/C) system | 10 |
| 28 | Rear fog lamp | 5 |
Note: - ** VTi 68 engine.
