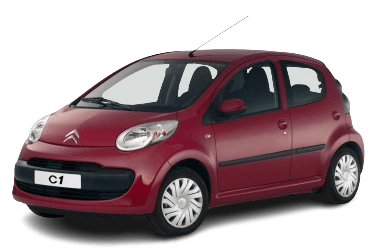

In 2005, Citroën introduced the C1 small hatchback, developed in collaboration with Toyota and Peugeot. Its sister models are the Peugeot 107 and Toyota Aygo. The vehicle was available in three-door and five-door body styles. All variants feature a front-wheel-drive layout. The model belongs to the A-segment and is characterized by its ultra-compact dimensions. In this article, we will provide a detailed overview of the fuse box diagrams for the first-generation Citroën C1 (TPCA platform; chassis codes PM / PN), covering the 2005 through 2015 model years.
Below, you will find the locations and diagrams of the power distribution boxes. The fuses protecting the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Engine Compartment
The main fuse block is located on top of the battery.
To access the fuses, remove the protective plastic cover.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Transmission control module (TCM), engine cooling fan motor (Diesel) | 50 |
| 2 | Headlamps | 10 |
| Daytime running lamps (DRL) | 20 | |
| 3 | Anti-lock braking system (ABS) | 25 |
| 4 | Starter motor | 30 |
| 5 | Instrument cluster illumination, turn signal lamps, hazard warning lamps | 10 |
| 6 | Front/rear position lamps, headlamps | 10 |
| 7 | Interior lighting, instrument cluster, audio system | 15 |
| 8 | Engine control module (ECM) - Petrol models | 15 |
| 9 | Horn | 10 |
| 10 | Engine cooling fan motor | 7.5 |
| 11 | Anti-lock braking system (ABS) | 10 |
| 12 | Electric power steering (EPS) | 15 |
| 13 | Starter motor | 7.5 |
| 14 | Engine control module (ECM) | 7.5 |
| 15 | 15 | |
| 16 | Right headlamp high beam | 10 |
| 17 | Left headlamp high beam | 10 |
| 18 | Right headlamp low beam | 10 |
| 19 | Left headlamp low beam | 10 |
| 20 | Engine control module (ECM) | 10 |
| R1 | A/C compressor clutch relay | |
| R2 | Starter relay | |
Passenger Compartment
There are two power distribution boxes located in the cabin that protect the vehicle's electrical circuits.
Interior Fuse Box
Located behind the steering column, flanking the instrument cluster.
1) Turn the steering wheel to the left and remove screw B.
2) Turn the steering wheel to the right and remove screw C.
3) Partially loosen screw D located at the rear of the tachometer.
General view of the Citroën C1 interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| 1 | Brake lamps, anti-lock braking system (ABS), transmission control module (TCM) | 10 |
| 2 | Central locking system | 25 |
| 3 | Rear window defogger | 20 |
| 4 | Rear position lamps, instrument cluster illumination, gear selector illumination | 7.5 |
| 5 | On-board diagnostics (OBD) connector | 7.5 |
| 6 | Fog lamps, instrument cluster, transmission control module (TCM), instrument panel illumination | 7.5 |
| 7 | Anti-lock braking system (ABS), electric power steering (EPS), HVAC system | 7.5 |
| 8 | Anti-lock braking system (ABS), electric power steering (EPS), HVAC system, engine cooling fan motor | 7.5 |
| 9 | Tail lamps, central locking, power windows, rear window defogger, instrument cluster, HVAC system | 10 |
| 10 | Windshield wiper/washer, rear window wiper/washer | 20 |
| 11 | Audio system, anti-theft immobilizer system | 15 |
| Citroën C1 cigarette lighter fuse, accessory power outlet | ||
| 12 | Windshield wiper/washer, rear window wiper/washer, anti-lock braking system (ABS), electric power steering (EPS), HVAC system, central locking, power windows, instrument cluster, rear window defogger, engine cooling fan motor | 7.5 |
| 13 | Engine control module (ECM), anti-theft immobilizer system, instrument cluster, supplemental restraint system (SRS/Airbags), transmission control module (TCM) | 15 |
| 14 | Air conditioning (A/C) system | 7.5 |
| 15 | Cigarette lighter, accessory power outlet | 40 |
| 16 | Power windows | 30 |
| 17 | HVAC system / blower motor | 40 |
Relay Box
The interior relay board is located adjacent to the fuse block.
|
|
| No. | Description |
| R1 | Accessory power outlet |
| R2 | Ignition coils |
| R3 | Heating and ventilation (HVAC) |
| R4 | Rear window defogger |
