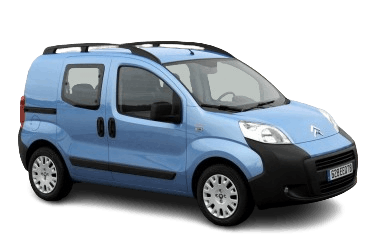

Citroen Nemo was presented in summer 2007 and went on sale in early 2008. The car was developed jointly by Fiat, PSA Peugeot Citroën and Tofaş and is based on the Fiat Grande Punto platform. It is characterized by a 2513 mm wheelbase. It is also available under the names Fiat Fiorino and Peugeot Bipper. In this article, we will take a detailed look at the fuse box diagrams for the Citroën Nemo (1st generation) 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 years of manufacture.
Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the engine compartment
Fuse box located near the battery.
To gain access, first disconnect the front left headlight connector block, and then release the block cover latches.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Feed into the embedded systems interface | 60 |
| 2 | Empty | - |
| 3 | Starter | 20 |
| Supply | ||
| 4 | ABS pump | 40 |
| 5 | Empty | |
| 6 | Single speed cooling fan | 20 |
| 7 | Cooling fan, high speed | 40 |
| 8 | Air conditioning | 30 |
| 9 | trailer | 15 |
| or empty | ||
| 10 | Horn (beep) | 15 |
| 11 | Engine control unit | 10 |
| 14 | Headlights | 15 |
| 15 | Empty | - |
| 16 | Empty | - |
| 17 | Fuel filter | 7.5 |
| or Empty | ||
| 18 | Main relay | 7.5 |
| 19 | Air conditioning compressor | 7.5 |
| 20 | Heated rear window | 30 |
| Heated mirrors | ||
| 21 | Empty | |
| 22 | Fuel pump fuse | 15 |
| or - | ||
| 23 | Engine compartment fuse and relay box | 20 |
| 24 | ABS control unit | 7.5 |
| 30 | Fog lights | 15 |
| 81 | Heating control unit | 60 |
| or not used | ||
| 82 | Empty | - |
| 84 | Empty | - |
| 85 | Cigarette lighter and 12V socket | 15 |
| Heated seats | ||
| 87 | Back-up lights | 7.5 |
| Water in fuel sensor | ||
| T02 | High beam relay | |
| T03 | Horn relay | |
| T05 | Air conditioner compressor relay | |
| T06 | Cooling fan relay | |
| T07 | Two speed cooling fan | |
| T08 | Air conditioner fan motor | |
| T09 | Engine control unit, main relay | |
| T10 | Fuel pump relay | |
| Additional relay, fuel pump | ||
| T14 | Fog lamp relay | |
| T17 | Empty | |
| T19 | Heated rear windshield relay | |
| Heated mirror | ||
| T20 | Starter lock relay | |
| T30 | Not | |
| T31 | Power outlet relay | |
| Lighting | ||
| Relay, heated seats | ||
In the passenger compartment
Located under the dashboard.
For access, you need to unscrew two screws with the ignition key and lower the unit.
General view of the Citroen Nemo interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| F12 | Right dipped beam headlight | 7.5 |
| F13 | Left dipped beam headlight, headlight corrector | 7.5 |
| F31 | Engine ECU power switch | 5 |
| F32 | Head lighting, front headlamp, switch on rear headlamp | 7.5 |
| F36 | Car radio, cell phone circuit, air conditioner control panel, EOBD diagnostic connector | 10 |
| F37 | Brake light, instrument cluster | 5 |
| F38 | Door locks | 20 |
| F41 | Heated exterior mirrors | 7.5 |
| F43 | Washer pump | 15 |
| F47 | Driver's door window elevator | 20 |
| F48 | Passenger's door window elevator | 20 |
| F49 | Parktronic ECU, rear light switch, exterior mirrors, interior space control sensor | 5 |
| F50 | Airbag ECU | 7.5 |
| F51 | Stop lamp contactor, clutch pedal contactor, exterior mirror control panel, Bluetooth system | 7.5 |
| F53 | Instrument cluster, rear fog lights | 5 |
| F94 | Citroen Nemo cigarette lighter fuse | 15 |
| F96 | 12V power outlet | 15 |
| F97 | Heated driver's seat | 10 |
| F98 | Passenger seat heating | 10 |
Fuel cut off relay / switch ?
