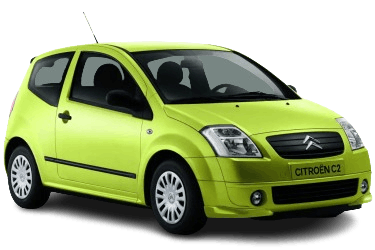

The Citroën C2 is a subcompact car produced by the French manufacturer Citroën. The model was launched in September 2003. In October 2005, the car received a facelift, which included updated headlights, interior components, and electronics. It was produced as a hatchback until 2010. This article provides a detailed look at the fuse box diagrams for the first-generation Citroën C2 (PF1 platform; chassis code JM) across the 2003, 2004, 2005, 2006, 2007, 2008, 2009, and 2010 model years.
Below, you will find the locations and diagrams of the power distribution boxes. The fuses protecting the "Cigarette lighter" and "Fuel pump" circuits are highlighted in bold.
Engine Compartment
The main fuse box is located on the right side of the engine compartment, adjacent to the battery. The battery cover must be removed to gain access.
Pre-2005 Facelift
Reference image.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component | A |
| MF1 | Radiator cooling fan motor | 30 |
| MF2 | Anti-lock Braking System (ABS) | 30 |
| MF3 | 30 | |
| MF4 | Multifunction control module 1 | 60 |
| MF5 | 70 | |
| MF6 | Heated seats | 20 |
| MF7 | Ignition switch | 30 |
| MF8 | Electric Power Steering (EPS) | 80 |
| 1 | Electronic Stability Program (ESP) module, water-in-fuel sensor, glow plugs, reverse lights, Transmission Control Module (TCM), Vehicle Speed Sensor (VSS) | 10 |
| 2 | Fuel pump | 15 |
| 3 |
|
10 |
| 4 | Brake Pedal Position (BPP) switch, Clutch Pedal Position (CPP) switch, cruise control system, Transmission Control Module (TCM), engine coolant heater relay, low coolant level sensor, Electric Power Steering (EPS) module, starter inhibit relay | 10 |
| 5 | Diesel Particulate Filter (DPF) additive control module (if equipped) | 10 |
| 6 | Front fog lights | 15 |
| 7 | Headlight washer pump | 20 |
| 8 | Engine Control Module (ECM) | 20 |
| 9 | Left headlight (low beam) | 15 |
| 10 | Right headlight (low beam) | 15 |
| 11 | Left headlight (high beam) | 10 |
| 12 | Right headlight (high beam) | 10 |
| 13 | Horn | 15 |
| 14 | Windshield and rear window washer pump | 10 |
| 15 | Engine Control Module (ECM) | 30 |
| 16 | Secondary Air Injection (SAI) pump | 30 |
| 17 | Windshield wiper motor | 30 |
| 18 | HVAC blower motor | 40 |
Post-2005 Facelift
Fuse assignments.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component | A |
| 1 | Water-in-fuel sensor (diesel) | 20 |
| 2 | Horn | 15 |
| 3 | Windshield washer pump | 10 |
| 4 | Headlight washer pump | 20 |
| 5 | Fuel pump | 15 |
| 6 | Electric Power Steering (EPS) | 10 |
| 7 | Engine coolant level sensor | 20 |
| 8 | Starter motor | 25 |
| 9 | Anti-lock Braking System (ABS) / Electronic Stability Program (ESP) | 10 |
| 10 | Engine management components (ignition coils, solenoid valves, oxygen sensors, fuel injectors, EVAP purge valve) | 30 |
| 11 | HVAC blower motor | 40 |
| 12 | Windshield wiper motor | 30 |
| 14 | Secondary Air Injection (SAI) pump (gasoline) / Diesel fuel heater | 40 |
Passenger Compartment
The interior fuse box is located on the driver's side, in the lower section of the dashboard.
Access is gained by removing the protective cover.
Post-2005 Facelift
General view of the Citroën C2 interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component | A |
| 3 | Supplemental Restraint System (SRS) / Airbags | 5 |
| 4 | Data Link Connector (DLC), DPF additive module, clutch switch, steering wheel angle sensor | 10 |
| 5 | 30 | |
| 6 | Windshield washer pump | 30 |
| 8 | Digital clock, steering wheel controls, audio system, multi-function display | 20 |
| 9 |
|
30 |
| 10 | Anti-theft alarm system | 15 |
| 11 | Ignition switch, Data Link Connector (DLC) | 15 |
| 12 | SRS / Airbag control module, rain and light sensor | 15 |
| 14 | Parking assist module, instrument cluster, automatic climate control module, Bluetooth hands-free module | 15 |
| 15 | Central locking system / Deadlocking | 30 |
| 17 | Rear window defogger | 40 |
| 18 | Shunt | |
Pre-2005 Facelift
Fuse assignments.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit / Component | A |
| 1 | Data Link Connector (DLC) | 15 |
| 4 | Anti-theft alarm, audio system, clock, multi-function display, engine compartment fuse box, steering column control module, telematics | 20 |
| 5 | Anti-theft alarm siren | 15 |
| 6 | Data Link Connector (DLC), steering column control module, automatic transmission mode switch | 10 |
| 7 | Anti-theft alarm, sun load sensor, rain sensor | 15 |
| 9 | - | |
| 10 | Rear window defogger, power side mirrors | 40 |
| 11 | Rear window wiper and washer | 15 |
| 12 | Power windows | 30 |
| 14 | Engine compartment fuse box, SRS / Airbag control module, steering column control module | 10 |
| 15 | Audio system, multi-function display, HVAC control module, instrument cluster, parking assist module, telematics | 15 |
| 16 | Central locking system | 30 |
| 20 | Right tail light / Parking light | 10 |
| 21 | Left tail light / Parking light, high-mount stop light (CHMSL) | 15 |
| 22 | Front accessory connector, audio system, Cigarette lighter, power side mirrors, interior dome light, clock, license plate lights, vanity mirror lights | 30 |
