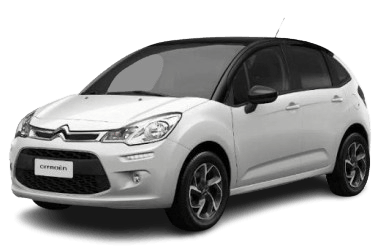

In 2009, sales of the second generation of the B-class Citroen C3 started. Unlike the first generation, the car was produced only as a five-door hatchback. Citroen C3 received a new body design with a panoramic Zenith windshield, which provides a 108-degree viewing angle and better interior illumination. Chrome inserts have appeared in the exterior trim, which are easy to spot on the door handles, windshield wipers and exhaust pipe. In fact, the novelty has incorporated the best developments of other Citroen models: optics from C5, front from DS3. In Russia, sales of the second generation began in the summer of 2010. In the domestic market, the hatchback was offered with gasoline engines of 1.4 liters (73 and 95 hp) and 1.6 liters (120 hp).
In this material, we will take a closer look at the fuse circuits of the 2nd generation Citroen C3 (A51 body) 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016.
In the engine compartment
Located near the battery.
General view of the fuse box.
| Diagram | ||
|---|---|---|
|
||
| № | A | Appointment |
| F1 | 20 | Engine computer power supply, electric fan control relay, engine multifunction computer main turn, injection pump (Diesel). |
| F2 | 15 | Sound signal. |
| F3 | 10 | Washer for front and rear windows. |
| F4 | 20 | Daylight illumination. |
| F5 | 15 | Diesel fuel heater (Diesel), pump when supplying diesel fuel additive (Diesel), flow meter (Diesel), EGR solenoid valve (Diesel), fuel pump (1,1 i and 1,4i), heater for crankcase collection system and solenoid valves (VTi) ... |
| F6 | 10 | ABS / ESP computer, brake light redundant contactor. |
| F7 | 10 | Electric power steering, automatic transmission. |
| F8 | 25 | Starter switch. |
| F9 | 10 | Switching and protection unit (Diesel). |
| F10 | 30 | Diesel fuel heater (Diesel), crankcase gas collection system heater (1,1i, 1,4i and Diesel), fuel pump (VTi), injectors and ignition coils (gasoline engine), controlled thermostat and adsorber bleed solenoid valve (1,1i and 1,4i). |
| F11 | 40 | Air conditioning electric fan. |
| F12 | 30 | Low / high speed of the windshield wiper. |
| F13 | 40 | Power supply of the intelligent switching unit (+ from the ignition switch). |
| F14 | 30 | Valvetronic (VTi) valve power supply. |
| F15 | 10 | Right-hand high beam headlamp. |
| F16 | 10 | Left high beam headlamp. |
| F17 | 15 | Left low beam headlamp. |
| F18 | 15 | Right-hand dipped beam headlamp. |
| F19 | 15 | Lambda probes and solenoid valves (VTi), solenoid valves (Diesel), EGR solenoid valves (Diesel). |
| F20 | 10 | Pumps, thermostat controlled (VTi), water presence sensor in diesel fuel (Diesel). |
| F21 | 5 | Cooling fan power supply, ABS / ESP. |
| MF1 * | 60 | Cooling fan. |
| MF2 * | 30 | ABS / ESP pump. |
| MF3 * | 30 | Solenoid valves for ABS / ESP systems. |
| MF4 * | 60 | Power supply to the intelligent breakout box. |
| MF5 * | 60 | Power supply to the intelligent breakout box. |
| MF6 * | - | Not used. |
| MF7 * | - | Interior fuse box. |
| MF8 * | - | Not used. |
| * High power fuses provide additional protection for electrical circuits. All work on them must be carried out only by a CITROEN service network. | ||
In the passenger compartment
Fuse box
Located on the driver's side, at the bottom of the dashboard.
To access, you need to remove part of the dashboard.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Decoding | A |
| F1 | Rear window cleaner. | 15 |
| F2 | Not | - |
| F3 | ECU for airbags and pyrotechnic pretensioners | 5 |
| F4 | Air Conditioning, Clutch Contactor, Electro Chrome Rear View Mirror, Diesel Particulate Filter Pump (Diesel), Diagnostic Connector, Air Flow Meter (Diesel) | 10 |
| F5 | Power window control panel, passenger power window control, front power window motor | 30 |
| F6 | Rear power window motor and driver's door power window motor | 30 |
| F7 | Lights, glove box lights, side lights for individual lighting | 5 |
| F8 | Multifunctional display, car radio, navigation system, dashboard with clock, burglar alarm calculator, burglar alarm siren | 20 |
| F9 | Car radio (additional equipment), 12 V socket, power supply bracket for portable navigation system, citroen c3 cigarette lighter fuse | 30 |
| F10 | Steering column switches | 15 |
| F11 | Ignition switch, diagnostic socket, automatic transmission calculator | 15 |
| F12 | Rain / Light Sensor, Trailer Junction Box, Training Vehicle Module | 15 |
| F13 | Brake light main contactor, engine switch box | 5 |
| F14 | Parking aid computer, airbag calculator, instrument panel, automatic air conditioner, USB box, hi-fi amplifier | 15 |
| F15 | Locking locks | 30 |
| F16 | Not | - |
| F17 | Heated rear window and exterior mirrors | 40 |
| SH | PARC shunt | - |
Auxilary fuse panel
Located under the dashboard.
|
||
| No. | Description | A |
| FH36 | Trailer switch box | 5 |
| FH37 | Not | - |
| FH38 | Hi-Fi amplifier | 20 |
| FH39 | Seat heating | 20 |
| FH40 | Trailer switch box | 30/40 |
