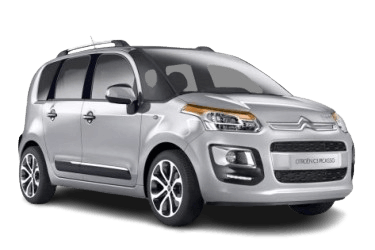

In 2008, the aging Xsara Picasso compact MPV was replaced by the new Citroën C3 Picasso, which features more compact dimensions and belongs to the subcompact MPV (mini MPV) segment. The vehicle was initially unveiled in Paris as the Drooneel concept. Like the standard C3, this new MPV is built on the PSA PF1 platform. Sales of the model in Russia commenced in the spring of 2009. In this article, we will provide a detailed overview of the fuse box diagrams for the first-generation Citroën C3 Picasso (PF1 platform; SH chassis) spanning the 2009 through 2016 model years.
Below, you will find the locations and photographs of the power distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
Engine Compartment
Located adjacent to the battery, behind the protective cover.
General overview of the engine bay fuse box.
| Engine Compartment Fuse Assignments | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Engine control unit (ECU) power supply, cooling fan control, engine management main relay | 20 |
| 2 | Horn | 15 |
| 3 | Rear window wiper / washer pump | 10 |
| 4 | Daytime running lights (DRL) | 20 |
| 5 | Engine management system | 15 |
| Diesel fuel heater (diesel models), fuel pump (gasoline models) | ||
| 6 | Anti-lock braking system (ABS) / Electronic stability program (ESP) | 10 |
| 7 | Electric power steering (EPS) | 10 |
| 8 | Starter motor solenoid signal | 25 |
| 9 | Battery power distribution module | 10 |
| 10 | Engine management system | 30 |
| Fuel injector solenoid valves (diesel models), fuel injectors and ignition coils (gasoline models) | ||
| 11 | Air conditioning (A/C) blower motor | 40 |
| 12 | Windshield wipers | 30 |
| 13 | Built-in Systems Interface (BSI) power supply (ignition on) | 40 |
| 14 | Engine management system | 30 |
| Valvetronic system power supply (gasoline models) | ||
| 15 | Right high beam headlight | 10 |
| 16 | Left high beam headlight | 10 |
| 17 | Left low beam headlight | 15 |
| 18 | Right low beam headlight | 15 |
| 19 | Engine management system | 15 |
| Engine management system power supply (gasoline models), charge air cooler solenoid valves (diesel models) | ||
| 20 | Engine management system | 10 |
| Engine management system power supply (gasoline models), turbocharger wastegate solenoid valve (diesel models), engine coolant level sensor (diesel models) | ||
| 21 | Cooling fan relay power supply, main ignition relay, ABS / ESP module | 5 |
| Maxi Fuses | ||
| MF1 | Engine cooling fan motor | 60 |
| MF2 | Anti-lock braking system (ABS) / Electronic stability program (ESP) | 30 |
| MF3 | 30 | |
| MF4 | Built-in Systems Interface (BSI) power supply | 60 |
| MF5 | 60 | |
| MF6 | - | - |
| MF7 | - | - |
| MF8 | - | - |
Passenger Compartment
There are two power distribution boxes located in the passenger compartment that protect the interior electrical circuits.
Main Fuse Box
Located on the driver's side in the lower dashboard, behind the plastic access trim.
General overview of the Citroën C3 Picasso interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Rear window wiper | 15 |
| F3 | Supplemental Restraint System (SRS) / Airbags | 5 |
| F4 | Steering angle sensor, A/C compressor, clutch switch, diesel particulate filter (DPF) additive pump, diagnostic port (OBD-II), mass air flow (MAF) sensor | 10 |
| F5 | Front power windows | 30 |
| F6 | Rear power windows | 30 |
| F7 | Interior lighting, front and rear reading lights, glove compartment light, portable flashlight charger | 5 |
| F8 | Multifunction display, audio system, navigation system | 20 |
| F9 | Cigarette lighter, audio system (optional), 12V power outlet | 30 |
| F10 | Steering column control module | 15 |
| F11 | Ignition switch, diagnostic port (OBD-II) | 15 |
| F12 | Rain/light sensor, trailer tow control module | 15 |
| F13 | Primary brake light switch, engine relay control module | 5 |
| F14 | Parking assist control module, seatbelt warning chime, airbag control module, instrument cluster, A/C system, USB interface | 15 |
| F15 | Central locking system | 30 |
| F17 | Heated rear window and heated exterior side mirrors | 40 |
| SH | Shunt (Park/Client Mode) | |
Auxiliary Fuse Box
Located underneath the dashboard.
| Diagram | ||
|---|---|---|
|
||
| F36 | Trailer tow control module | 5 |
| F37 | Trailer tow socket | 15 |
| F38 | Navigation system | 20 |
| F39 | Heated seats | 20 |
| F40 | Trailer tow control module | 30 |
