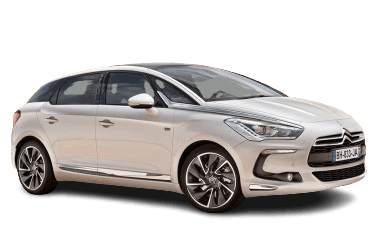

In 2011, Citroën’s DS lineup expanded with the introduction of the DS4 and DS5 models. The front-wheel-drive DS5 utilizes the same platform as the Citroën C4 Picasso, featuring a 2727 mm wheelbase to provide increased interior capacity. Its design is heavily derived from the 2005 C-SportLounge concept vehicle. In this article, we detail the fuse box diagrams for the first-generation Citroën DS5 (Type K), covering model years 2011 through 2019.
Below, you will find the locations and diagrams of the power distribution boxes. The fuse assigned to the “cigarette lighter” circuit is highlighted in bold.
Engine Compartment
Located adjacent to the battery.
General view of the engine compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Rating (A) |
| F20 | Front/rear windshield washer pump | 15 |
| F21 | Headlamp washer pump | 20 |
| F22 | Horn | 15 |
| F23 | Right headlamp – high beam | 15 |
| F24 | Left headlamp – high beam | 15 |
| F27 | Left headlamp | 5 |
| F28 | Right headlamp | 5 |
Additionally, the battery cover may house a separate distribution block containing high-current maxi fuses.
Passenger Compartment
The primary interior fuse box is located in the lower dashboard on the driver's side. On right-hand-drive (RHD) models, it is situated behind the passenger glove compartment.
Example of fuse box access.
| Passenger Compartment Fuse Assignment | ||
|---|---|---|
General view of the Citroën DS5 interior fuse box. |
||
Fuse box diagram. |
||
| No. | Circuit Description | Rating (A) |
| F6 A / B |
Audio system | 15 |
| F8 | Anti-theft alarm system | 3 |
| F13 | Citroën DS5 “cigarette lighter” fuse, 12V auxiliary power outlet | 10 |
| F14 | Rear 12V auxiliary power outlet | 10 |
| F16 | Exterior mirrors | 3 |
| F17 | Tailgate, interior rearview mirror | 3 |
| F28 A / B |
Audio system | 15 |
| F30 | Rear window wiper | 20 |
| F32 | Audio system amplifier | 10 |
