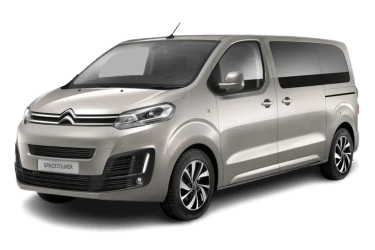

At the end of 2015, Toyota and PSA Peugeot Citroën unveiled a new global project—a lineup of 4- and 5-door minivans and commercial vans based on PSA’s EMP2 platform, which also underpins the C4 Picasso and its Grand variant. Citroën marketed its version as the SpaceTourer. In this article, we provide a detailed overview of the fuse box diagrams for the first-generation Citroën SpaceTourer (EMP2 platform; K0 code; DV/DW series engines) covering the 2016 through 2021 model years.
Below, you will find the locations and photographic references for the power distribution boxes. The fuses protecting the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Engine Compartment
The fuse box is located adjacent to the battery.
To gain access, remove the retaining clips labeled “A” in the photograph.
This distribution box may contain fuses for the following components:
- Heated washer nozzles.
- Windshield wiper motor.
- Front and rear windshield washer pump.
- Headlamp washer pump.
- Front and rear wiper system pump.
- Built-in Systems Interface (BSI) / Intelligent switching unit.
- Alarm sounder.
- Forward collision radar (automatic emergency braking) and Electric Power Steering (EPS).
- Right high-beam headlamp.
- Left high-beam headlamp.
The exact fuse locations and their amperage ratings are specified on the inside of the fuse box cover.
Passenger Compartment
There are two interior power distribution boxes dedicated to protecting the electrical circuits.
Primary Fuse Box
Located at the lower section of the dashboard on the driver's side.
Accessing the primary fuse box.
General view of the Citroën SpaceTourer interior fuse box.
| Diagram (High Specification) | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Keyless entry system or anti-theft immobilizer | 3 |
| 5 | Infotainment touchscreen, rearview camera, and parking assist system | 5 |
| 7 | Rear HVAC control panel, Hi-Fi audio amplifier | 10 |
| 8 | Rear window wiper (single or dual) | 20 |
| 10/11 | Interior and exterior central locking (front and rear) | 30 |
| 12 | Horn | 3 |
| 17 | Cigarette lighter and rear 12V power accessory socket | 10 |
| 18 | Telematics (emergency and roadside assistance calling) | 5 |
| 21 | Portable lamp charger, rear dome light | 3 |
| 22 | Glove compartment illumination, rear dome lights | 3 |
| 23 | Blind spot monitoring system, power-adjustable exterior mirrors | 5 |
| 24 | Steering column switch module | 5 |
| 25 | Headlamp leveling system | 5 |
| 26 | Seat belt unfastened warning indicator | 3 |
| 27 | Rain and ambient light sensor, multifunction camera | 3 |
| 28 | Front HVAC control panel, infotainment fascia, gear selector, head-up display (HUD) | 10 |
| 30a / b | Infotainment system / Car radio (Battery +) | 15 |
| 31 | Supplemental Restraint System (Airbags) | 5 |
| 33 | Front 12V power accessory socket and cigarette lighter | 15 |
| 35 | Instrument cluster | 5 |
| 36 | Infotainment system, touchscreen, CD player, navigation system | 20 |
| Diagram (Base Specification / ECO) | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Electric Power Steering (EPS), clutch pedal position switch | 10 |
| 4 | Horn | 15 |
| 5 | Front and rear washer pump | 20 |
| 6 | 20 | |
| 7 | Rear 12V power accessory socket | 10 |
| 8 | Rear window wiper (single or dual) | 20 |
| 10/11 | Interior and exterior central locking (front and rear) | 30 |
| 13 | Front HVAC control panel, infotainment fascia, gear selector, head-up display (HUD) | 10 |
| 14 | Anti-theft alarm, telematics (emergency and roadside assistance calling) | 5 |
| 17 | Instrument cluster | 5 |
| 19 | Steering column switch module | 3 |
| 21 | Keyless entry system or anti-theft immobilizer | 3 |
| 22 | Rain and ambient light sensor, multifunction camera | 3 |
| 23 | Seat belt unfastened warning indicator | 5 |
| 24 | Infotainment touchscreen, rearview camera, and parking assist system | 5 |
| 25 | Supplemental Restraint System (Airbags) | 5 |
| 29 | Infotainment system, touchscreen, CD player, navigation system | 20 |
| 31 | Infotainment system / Car radio (Battery +) | 15 |
| 32 | Front 12V power accessory socket and cigarette lighter | 15 |
| 34 | Blind spot monitoring system, power-adjustable exterior mirrors | 5 |
| 35 | Heated washer nozzles, headlamp leveling system | 5 |
| 36 | Portable lamp charger, rear dome light | 5 |
Auxiliary Fuse Box
A secondary fuse block is located directly beneath the primary unit.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| R1 | 230V AC power outlet | |
| R2 | 12V DC power accessory socket | |
| R3 | Unused / Spare | |
| F1 | Heated rear window (Defroster) | 40 |
| F2 | Heated exterior mirrors | 7.5 |
| F3 | Passenger compartment fuse box 5 (Chassis Cab variant) | 5 |
| F4 | 12V power socket (Multimedia equipment) | 15 |
| F5 | Rear power window motors | 30 |
| F6 | Front power window motors | 30 |
| F7 | Heated seats | 20 |
| F8 | HVAC blower motor | 20 |
| F9 | Power liftgate / Tailgate | 30 |
| F10 | Left seat belt pretensioner / retractor | 40 |
| F11 | Trailer tow module | 5 |
| F12 | Power-adjustable driver's seat | 30 |
| F13 | Right seat belt pretensioner / retractor | 40 |
| F14 | Power-adjustable passenger seat | 30 |
| F15 | Power sunroof / Sunshade blind | 25 |
| F16 | Driver's door multiplex control module (Windows / Exterior mirrors) | 5 |
| F17 | Exterior mirror puddle lights and position memory module | 10 |
| F18 | Audio system amplifier | 25 |
| F19 | Spare | |
| F20 | Power liftgate / Tailgate module | 7.5 |
| F21 | Keyless entry and start module | 3 |
