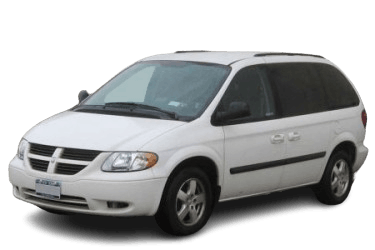

The Dodge Caravan (and its extended Grand Caravan variant) is a series of minivans produced by Chrysler for model years 1984 through 2020. This article provides a detailed overview of the fuse box diagrams for the fourth-generation Dodge Caravan (model years 2005, 2006, 2007, and 2008).
Below are the locations and illustrations of the power distribution centers (fuse boxes). The fuses designated for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
Engine Compartment
The power distribution center is located on the left side of the engine compartment, beneath a protective cover.
Example of the engine compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Circuit Description | Amperage (A) |
| 1 | Front fog lamp relay, Front Control Module (FCM) | 20 |
| 2 | Left front park/turn signal lamp, license plate lamp, trailer tow connector, left tail lamp assembly, Front Control Module (FCM) | 15 |
| 3 | Domestic: Right tail lamp assembly, right front park/turn signal lamp, Front Control Module (FCM) | 15 |
| Export: Right park lamp, right headlamp leveling motor, headlamp switch, right tail lamp assembly, Front Control Module (FCM) | 15 | |
| 4 | Front wiper on/off relay (front wiper high/low relay, wiper module), Front Control Module (FCM) | 30 |
| 5 | Cigarette Lighter, Radio | 20 |
| 6 | Rear power outlet, floor console lamp, floor console power outlet | 20 |
| 8 | Horn relay | 20 |
| 9 | Starter relay, Anti-lock Brake System (ABS), Front Control Module (FCM), front blower motor relay, rear blower motor relay, cabin heater relay, circuit breakers: “14”, “15” | 40 |
| 10 | Front blower motor resistor (Manual A/C), front blower motor control module (Auto A/C) | 40 |
| 11 | Sunroof module, rear wiper motor, radio, audio amplifier | 20 |
| 12 | Rear HVAC unit (Manual A/C), rear blower motor control module (Auto A/C) | 25 |
| 13 | Rear window defogger relay | 40 |
| 14 | Radio, Front Control Module (FCM), speaker relay, Body Control Module (BCM), Automatic Temperature Control (ATC), Sentry Key Remote Entry Module (SKREEM), overhead console, adjustable pedal switch, DVD/CD changer, Thatcham alarm module (UK), security alarm (UK) | 20 |
| 15 | Gasoline: Transmission control relay (transmission solenoid/pressure sensor assembly, Powertrain Control Module [PCM]) | 20 |
| Diesel: Lift pump relay, cabin auxiliary heater | 20 | |
| 16 | Gasoline: Auto Shutdown (ASD) relay (Powertrain Control Module [PCM], ignition coil, fuel injectors) | 25 |
| Diesel: ECM/PCM relay (Engine Control Module, alternator, Mass Air Flow [MAF] sensor, fuel pressure valve, glow plug relay, camshaft position sensor, EGR valve, A/C compressor clutch, radiator cooling fan relays 1, 2, and 3) | 25 | |
| 17 | Gasoline: Powertrain Control Module (PCM), Fuel Pump | 20 |
| Diesel: Fuel heater relay (crankcase ventilation heater, fuel heater) | 20 | |
| 18 | A/C compressor clutch relay, power mirror switch, adjustable pedal relay (external), passenger power folding mirror relay (Export), ignition switch (Export), Thatcham alarm module (UK), Sentry Key Remote Entry Module (Export) | 15 |
| 19 | Body Control Module (BCM) | 40 |
| 20 | Body Control Module (BCM) | 40 |
| Audio amplifier | 30 | |
| 21 | Anti-lock Brake System (ABS) | 25 |
| 22 | Power driver and passenger seats, heated front seats, seat/mirror memory module | 40 |
| 23 | Ignition switch (Sentry Key Remote Entry Module [SKREEM], parking assist module, Thatcham alarm module [UK]) | 10 |
| 24 | Body Control Module (BCM), instrument cluster, Electronic Vehicle Information Center (EVIC) / message center, left/right turn signal repeaters (Export) | 20 |
| 26 | Brake lamp switch | 20 |
| 27 | Gasoline: Radiator cooling fan relay | 40 |
| Diesel: Radiator cooling fan relay 2 | 40 | |
| 28 | Power window circuit breaker | 40 |
| 30 | Headlamp washer relay, Front Control Module (FCM) | 40 |
| 31 | Dual power sliding doors, right power sliding door, left power sliding door | 40 |
| 32 | Sunroof module (Domestic), power liftgate module | 40 |
| 33 | Front washer pump motor, rear washer pump motor | 15 |
| 4 | Power mirrors (left/right) | 8 |
| 7 | Power outlet, floor console power outlet, Data Link Connector (DLC) | 13 |
| Relays | ||
| R1 | - | |
| R2 | Headlamp washer (if equipped) | |
| R3 | Park lamps | |
| R4 | Horn | |
| R5 | Front fog lamps | |
| R6 | A/C compressor clutch | |
| R7 | Gasoline: Fuel pump | |
| Diesel: Fuel heater | ||
| R8 | Rear window defogger | |
| R9 | Rear blower motor | |
| R10 | Front blower motor | |
| R11 | Accessory relay | |
| R12 | Starter | |
| R13 | Gasoline: Auto Shutdown (ASD) | |
| Diesel: ECM/PCM | ||
| R14 | Front wiper high/low speed | |
| R15 | Front wiper on/off | |
| R16 | Gasoline: Transmission control | |
| Diesel: Lift pump | ||
| R17 | Speaker | |
