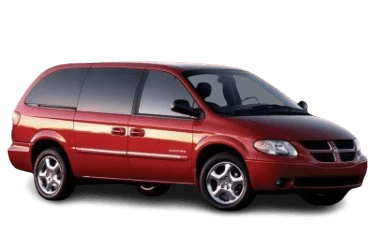

The Dodge Caravan (and its extended-wheelbase variant, the Grand Caravan ) is a series of minivans produced by Chrysler spanning the 1984 through 2020 model years. This article provides a detailed overview of the fuse block diagrams for the fourth-generation Dodge Caravan RS / RG (model years 2001, 2002, 2003, and 2004 ).
Below you will find the locations and photographs of the power distribution centers. The fuses assigned to the “cigarette lighter” and “fuel pump” circuits are highlighted in bold.
Engine Compartment
The power distribution center is located behind a protective cover adjacent to the battery. To gain access, depress the two side retaining clips and remove the cover.
General view of the power distribution center.
Access procedure.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amperage (A) |
| 1 | Fog lamp relay | 20 |
| 2 | Left rear turn signal lamp | 15 |
| Parking and turn signal lamps, license plate lamp, and trailer tow connector (if equipped) | ||
| 3 | Right front and right rear turn signal lamps | 15 |
| 4 | Front wiper on/off relay | 30 |
| 5 | Front cigarette lighter, radio | 20 |
| 6 | Rear cigarette lighter, rear power outlet, and rear floor console lamp | 20 |
| 7 | Data link connector (DLC), front instrument panel (I/P) power outlet | 15 |
| 8 | Horn relay | 20 |
| 9 | Starter relay and anti-lock braking system (ABS) controller | 40 |
| 10 | Front blower motor power module (automatic A/C) or blower motor resistor block (manual A/C) | 40 |
| 11 | Electric wiper defroster, front door lock switches (vehicles without power windows), B-pillar power sliding door switches, and rear wiper motor | 20 |
| 12 | Rear heater and air conditioning unit | 25 |
| 13 | Rear window defogger | 40 |
| 14 | Automatic temperature control (ATC), audio amplifier, overhead console, radio, keyless entry system, and Sentry Key immobilizer system (SKIS) | 15 |
| 15 | Transmission control module (TCM) (3.3L and 3.8L) and transmission safety disable | 20 |
| 16 | Automatic shutdown (ASD) relay | 25 |
| 17 | Fuel pump relay, powertrain control module (PCM) keep-alive memory (KAM) | 20 |
| 18 | A/C compressor clutch relay | 20 |
| 19 | Body control module (BCM) | 40 |
| 20 | 40 | |
| 21 | Anti-lock braking system (ABS) controller | 25 |
| 22 | Power seat circuit breaker | 40 |
| 23 | Ignition switch | 10 |
| 24 | Body control module (BCM), instrument cluster, and message center ( Highline trims only ) | 20 |
| 25 | Spare | |
| 26 | Brake lamp switch | 20 |
| 27 | Radiator cooling fan relay | 40 |
| 28 | Power window circuit breaker | 40 |
| 29 | Spare | |
| 30 | Spare | |
| 31 | Power sliding door control modules | 40 |
| 32 | Power liftgate module | 40 |
| 33 | Front and rear washer pump motors | 15 |
| R1 | Spare | |
| R2 | Spare | |
| R3 | Park and marker lamps | |
| R4 | Horn | |
| R5 | Front fog lamps | |
| R6 | A/C compressor clutch | |
| R7 | Fuel pump relay | |
| R8 | Radiator cooling fan | |
| R9 | Transmission | |
| R10 | Audio amplifier | |
| R11 | Front wiper (on/off) | |
| R12 | Automatic shutdown (ASD) relay | |
| R13 | Starter | |
| R14 | Front wiper (high/low speed) | |
| R15 | Auxiliary relay | |
| R16 | Rear blower motor | |
| R17 | Rear window defogger | |
Note: Some relay modules are mounted independently:
- Radiator cooling fan relay: Located on the front bumper reinforcement beam, behind the grille;
- Rear window defogger relay: Located on the junction block on the left side of the instrument panel.
