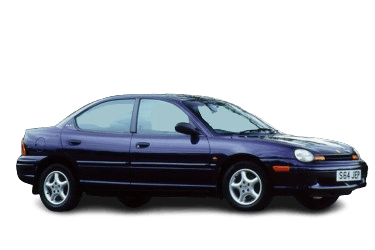

The first-generation Neon was introduced in January 1994 and produced until August 1999. The vehicle was available in both sedan and coupe body styles. In this guide, we will examine the fuse box diagrams for the first-generation Dodge/Chrysler Neon (PL platform) covering the 1994, 1995, 1996, 1997, 1998, 1999, and 2000 model years.
Below, you will find the locations and photographs of the fuse boxes. The fuses protecting the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Passenger Compartment Fuse Box
It is located on the side of the instrument panel, concealed behind a plastic access cover.
Access panel removal.
General view of the interior fuse box.
| Interior Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Cigarette Lighter / Power Outlet | 15 |
| F2 | Parking lamps, tail lamps, license plate lamps, and instrument cluster illumination | 15 |
| F3 | Power door locks (central locking) | 15 |
| F4 | Power sunroof | 10 |
| F5 | Supplemental Restraint System (SRS) control module | 10 |
| F6 | Hazard warning flasher | 10 |
| F7 | HVAC blower motor | 25 |
| F8 | Rear window defogger switch, A/C switch, blower motor relay, and backup lamps | 10 |
| F9 | Supplemental Restraint System (SRS) control module | 10 |
| F10 | Anti-lock Braking System (ABS), Transmission Control Module (TCM), EVAP canister purge solenoid, EGR solenoid | 15 |
| F11 | Instrument cluster gauges, warning indicators, and warning chime | 5 |
| F12 | Switch illumination, radio illumination, and ashtray illumination | 4 |
| F13 | Spare | |
| F14 | Power sunroof | 20 |
| F15 | Windshield wipers and washers | 20 |
| F16 | Radio / Audio system | 10 |
| F17 | Left headlamp | 10 |
| F18 | Right headlamp | 10 |
| F19 | Spare | |
| F20 | Spare | |
| 1 | Interior lamp delay relay 2 | |
| 2 | Turn signal flasher relay | |
| 3 | Interior lamp delay relay 1 | |
Engine Compartment Power Distribution Center
Located behind a protective cover on the right side of the engine compartment.
| Engine Compartment Fuse Assignment | ||
|---|---|---|
|
||
| No. | Description | Rating (A) |
| F1 | Ignition system | 40 |
| F2 | Headlamps | 40 |
| F3 | Radiator cooling fan | 30 |
| F4 | Rear window defogger | 30 |
| F5 | Anti-lock Braking System (ABS) | 40 |
| F6 | Starter motor relay, ignition switch | 30 |
| F7 | Interior lighting | 10 |
| F8 | Rear fog lamps | 20 |
| F9 | A/C compressor clutch | 10 |
| F10 | Turn signals / Hazard warning flashers | 10 |
| F11 | Fuel Pump | 20 |
| F12 | Horn | 15 |
| F13 | Brake lamps | 15 |
| Relays | ||
| 1 | Spare | |
| 2 | Fuel pump relay | |
| 3 | Engine Control Module (ECM) relay | |
| 4 | Horn relay | |
| 5 | Spare | |
| 6 | Radiator cooling fan relay | |
| 7 | A/C compressor clutch relay | |
| 8 | Starter motor relay | |
