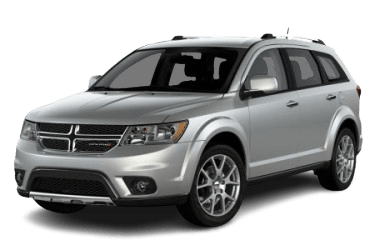

The Dodge Journey is a mid-size SUV produced by FCA US LLC since 2008. Unveiled at the 2007 Frankfurt Motor Show and originally intended for the North American market, it was later sold in other markets as the Fiat Freemont. This guide provides detailed fuse box diagrams for the first-generation Dodge Journey (JC platform) covering model years 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, and 2020. This information also applies to the Fiat Freemont 2011–2016.
Here you will find the locations and photographs of the fuse blocks. The fuses protecting the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Engine Compartment Fuse Box
The fuse box is located on the right side of the engine compartment, beneath a protective cover.
Example of cover removal.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F101 | Interior power circuit protection | 60 |
| F102 | 60 | |
| F103 | 60 | |
| F105 | Interior fuse block ignition relay | 60 |
| F106 | Interior fuse block / Accessory relay | 60 |
| F139 | HVAC blower motor | 40 |
| F140 | Power door locks | 30 |
| F141 | Anti-lock Braking System (ABS) | 40 |
| F142 | Glow plugs (if equipped) | 40 |
| F143 | Headlamps | 40 |
| F144 | Headlamps | 40 |
| F145 | Lighting Control Module | 30 |
| F146 | Spare | 30 |
| F147 | 30 | |
| F148 | Radiator cooling fan | 40 |
| F149 | Starter motor | 30 |
| F150 | Powertrain Control Module (PCM) | 25 |
| F151 | Headlamp washer motor (if equipped) | 30 |
| F152 | Diesel fuel heater (if equipped) | 25 |
| F153 | Fuel pump fuse (Dodge Journey / Fiat Freemont) | 20 |
| F156 | Anti-lock Braking System (ABS) / Electronic Stability Control (ESC) module | 10 |
| F157 | Power Transfer Unit (PTU) module (if equipped) | 10 |
| F158 | Active hood module (if equipped) | 10 |
| F159 | Spare | 10 |
| F160 | Interior lighting | 20 |
| F161 | Horn | 20 |
| F162 | Cabin heater #1 / Vacuum pump (if equipped) | 40/20 |
| F163 | Cabin heater #2 (if equipped) | 50 |
| F164 | Auto Shutdown (ASD) relay | 25 |
| F165 | Auto Shutdown (ASD) relay | 20 |
| F166 | Spare | 20 |
| F167 | Auto Shutdown (ASD) relay | 30 |
| F168 | A/C compressor clutch | 10 |
| F169 | Emissions - Partial Zero Emissions Vehicle (PZEV) engine | 40 |
| F170 | Emissions - Partial Zero Emissions Vehicle (PZEV) powertrain | 15 |
| F172 | Spare | 20 |
| F173 | Anti-lock Braking System (ABS) valves | 25 |
| F174 | Security alarm (if equipped) | 20 |
| F175 | Spare | 30 |
| F176 | Engine Control Module (ECM) | 10 |
| F177 | All-Wheel Drive (AWD) module (if equipped) | 20 |
| F178 | Sunroof (if equipped) | 25 |
| F179 | Intelligent Battery Sensor (IBS) | 10 |
| F181 | Electro-Hydraulic Power Steering (EHPS) (if equipped) | 100 |
| F182 | Cabin heater #3 (if equipped) | 50 |
| F184 | Front wiper motor | 30 |
| K133 | Radiator cooling fan relay - Low speed | |
| K134 | Radiator cooling fan relay - High speed | |
| K135 | Starter motor relay | |
| K136 | Secondary air injection pump relay | |
| K137 | Vacuum pump relay (V6) Cabin heater relay (Diesel) |
|
| K138 | Cabin heater relay | |
| K139 | ||
| K140 | Starter motor relay | |
| K143 | Diesel fuel heater relay | |
| K144 | Powertrain Control Module (PCM) / Transmission Control Module (TCM) relay | |
| K145 | Ignition Run/Start relay | |
| K151 | Front wiper relay (On/Off) | |
| K152 | Front wiper relay (High/Low speed) | |
Interior Fuse Box
The interior fuse box is located on the passenger side, underneath the dashboard.
General view of the fuse box.
Fuse box cover diagram.
| Dodge Journey / Fiat Freemont Interior Fuse Box Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F100 | 110V AC power inverter (if equipped) | 30 |
| F101 | Interior lighting | 10 |
| F102 | Cigarette lighter / 12V power outlet | 20 |
| F103 | Rear console 12V power outlet | 20 |
| F105 | Heated seats (if equipped) | 20 |
| F106 | Rear 12V power outlet | 20 |
| F107 | ParkView rear backup camera (if equipped) | 10 |
| F108 | Instrument cluster | 15 |
| F109 | Heating, Ventilation, and Air Conditioning (HVAC) module | 10 |
| F110 | Occupant Restraint Controller (ORC) | 10 |
| F112 | Spare | 10 |
| F114 | Rear HVAC blower motor | 20 |
| F115 | Rear wiper motor | 20 |
| F116 | Electric Backlight (EBL) / Rear window defroster | 30 |
| F117 | Heated exterior mirrors | 10 |
| F118 | Occupant Restraint Controller (ORC) | 10 |
| F119 | Steering Column Control Module (SCCM) | 10 |
| F120 | All-Wheel Drive (AWD) module (if equipped) | 10 |
| F121 | Wireless Ignition Node (WIN) / Ignition switch | 15 |
| F122 | Driver Door Module (DDM) | 25 |
| F123 | Passenger Door Module (PDM) | 25 |
| F124 | Power mirrors | 10 |
| F125 | Steering Column Control Module (SCCM) | 10 |
| F126 | Audio amplifier | 25 |
| F127 | Trailer tow harness (if equipped) | 20 |
| F128 | Radio / Multimedia system | 15 |
| F129 | Video / Rear Entertainment System (if equipped) | 15 |
| F130 | HVAC / Instrument cluster | 15 |
| F131 | Hands-Free module / Uconnect (if equipped) | 10 |
| F132 | Tire Pressure Monitoring System (TPMS) module | 10 |
| F133 | Security Gateway Module (SGW) (if equipped) | 10 |
| K103 | A/C compressor relay | |
| K107 | Ignition relay | |
