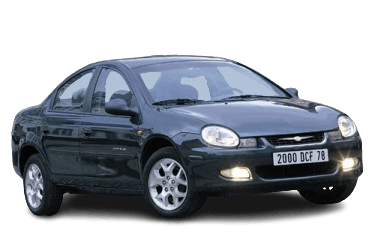

Production of the second-generation Dodge/Chrysler Neon began with the 2000 model year and concluded with the 2005 model year. This generation was offered exclusively as a four-door sedan. This guide provides a detailed breakdown of the power distribution and fuse box diagrams for the second-generation Dodge and Chrysler Neon PL (model years 1999, 2000, 2001, 2002, 2003, 2004, and 2005).
Below, you will find the locations and component layouts of the fuse blocks. The fuses protecting the “Cigarette Lighter” and “Fuel Pump” circuits are highlighted in bold.
Passenger Compartment
The interior fuse panel is located on the driver's side end of the instrument panel, behind a removable protective cover.
Fuse panel access.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Power Mirror Switch, Multifunction Switch (Turn Signals) | 10 |
| 2 | 1999–2004: Radio | 10 |
| 2004–2005: Wiper Motor, Wiper/Washer Switch | 20 | |
| 3 | Sunroof, Interior Lighting (2004–2005), Radio (2004–2005) | 20 |
| 4 | 1999–2004: Wiper Motor, Wiper/Washer Switch | 10 |
| 2004–2005: Radio, Interior Lighting, Infrared Sensor, Vanity Mirror Lamp, Underhood Lamp, Alarm Siren, Cargo Compartment Lamp, Rearview Mirror (Compass/Temperature), Immobilizer, Instrument Cluster, Remote Keyless Entry (RKE) Module | 15 | |
| 5 | Left-Hand Drive: Airbag Control Module (ACM) | 10 |
| Right-Hand Drive (2004–2005): Left Headlamp, Right Headlamp, Instrument Cluster | 10 | |
| 6 | Left-Hand Drive: Blower Motor | 20 |
| Right-Hand Drive: Backup Lamp Switch (Manual Transmission), Park/Neutral Position Switch (Automatic Transmission, 1999–2004), Shift Interlock (1999–2004), Rear Defroster Switch, Air Conditioning (A/C), Power Windows, Power Mirror Switch (1999–2004), Power Locks (1999–2004), Rearview Mirror (Compass/Temperature, 2004–2005), Transmission Range Sensor (2004–2005) | 10 | |
| 7 | Left-Hand Drive: Backup Lamp Switch (Manual Transmission), Park/Neutral Position Switch (Automatic Transmission, 1999–2004), Shift Interlock (1999–2004), Rear Defroster Switch, Air Conditioning (A/C), Power Windows, Power Mirror Switch (1999–2004), Power Locks (1999–2004), Rearview Mirror (Compass/Temperature, 2004–2005), Transmission Range Sensor (2004–2005), Daytime Running Lamps (DRL) Relay (2004–2005) | 10 |
| Right-Hand Drive: Blower Motor | 20 | |
| 8 | Right-Hand Drive: Airbag Control Module (ACM) | 10 |
| Left-Hand Drive (2004–2005): Left Headlamp, Right Headlamp, Instrument Cluster | 15 | |
| 9 | Left-Hand Drive: Airbag Control Module (ACM) | 10 |
| Right-Hand Drive (2004–2005): Instrument Cluster, Powertrain Control Module (PCM, 2.0L), AutoStick System | 10 | |
| 10 | Left-Hand Drive: Leak Detection Pump (LDP, 1999–2004), Powertrain Control Module (PCM), Torque Converter Clutch (TCC) Solenoid (Automatic Transmission, 1999–2004), Fuel Pump Relay, A/C Compressor Clutch Relay, Anti-lock Braking System (ABS), Cooling Fan System, Shift Interlock (2004–2005), Radiator Cooling Fan Relay – Low Speed (2.4L Turbo, 2004–2005), Radiator Cooling Fan Relay – High Speed (2.4L Turbo, 2004–2005), Throttle Solenoid (2.4L Turbo, 2004–2005) | 15 |
| Right-Hand Drive: Instrument Cluster, Immobilizer | 10 | |
| 11 | Left-Hand Drive: Instrument Cluster, Immobilizer | 10 |
| Right-Hand Drive: Powertrain Control Module (PCM), Torque Converter Clutch (TCC) Solenoid (Automatic Transmission, 1999–2004), Fuel Pump Relay, A/C Compressor Clutch Relay, Anti-lock Braking System (ABS), Radiator Cooling Fan, Shift Interlock (2004–2005) | 15 | |
| 12 | Right-Hand Drive: Airbag Control Module (ACM) | 10 |
| Left-Hand Drive (2004–2005): Instrument Cluster, Powertrain Control Module (PCM, 2.0L), AutoStick System | 10 | |
| 13 | Right-Hand Drive (2004–2005): Power Seats | 20 |
| 14 | Remote Keyless Entry (RKE) Module | 20 |
| 15 | Headlamp Switch (Radio, Parking Lamps, License Plate Lamps, Instrument Cluster), Remote Keyless Entry (RKE) Module, Headlamp Leveling System (2004–2005) | 15 |
| 16 | 1999–2004: Remote Keyless Entry (RKE) Module | 5 |
| 2004–2005: Daytime Running Lamps (DRL) Relay (High), Headlamp Switch, Multifunction Switch | 25 | |
| 17 | Left Headlamp, Headlamp Leveling System (2004–2005) | 10 |
| 18 | Right Headlamp, Headlamp Leveling System | 10 |
| 19 | Left-Hand Drive: Instrument Cluster, Fog Lamps | 10 |
| 20 | 1999–2004: Power Mirror Switch | 10 |
| Right-Hand Drive (2004–2005): Power Mirror Switch | 10 | |
| CB1 | 1999–2004: Power Windows | 30 |
| 2004–2005: Power Windows | 20 | |
| CB2 | 1999–2004: Headlamp Switch, Multifunction Switch | 25 |
| R1 | Spare | |
| R2 | 2004–2005: Daytime Running Lamps (DRL) (Low) | |
| R3 | 2004–2005: Daytime Running Lamps (DRL) (High) | |
Engine Compartment
Located adjacent to the battery. Remove the protective cover to access the fuses and relays.
Power distribution center access.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 2 | Spare | - |
| 3 | Interior Fuse Panel Feed: “13”, “14”, “15”, “16”, “CB2” | 40 |
| 4 | Ignition Switch, Interior Fuse Panel Feed: “5”, “6”, “7”, “8”, “CB1” | 40 |
| 5 | Anti-lock Braking System (ABS) | 30 |
| 6 | Radiator Cooling Fan Relay | 30 |
| 2.0L Turbo (2004–2005): Radiator Cooling Fan Relay – High Speed, Radiator Cooling Fan Relay – Low Speed | 30 | |
| 7 | Spare | - |
| 8 | Anti-lock Braking System (ABS) | 40 |
| 9 | Starter Relay, Ignition Switch, Interior Fuse Panel Feeds: “1”, “2”, “3”, “4”, “9”, “10”, “11”, “12” | 30 |
| 10 | Rear Window Defroster, Interior Fuse No. 20 | 40 |
| 11 | Spare | - |
| 12 | Spare | - |
| 13 | 1999–2004: Radio, Interior Lighting, Infrared Sensor, Vanity Mirror Lamp, Underhood Lamp, Cargo Compartment Lamp, Immobilizer, Instrument Cluster, Remote Keyless Entry (RKE) Module, Glove Box Lamp | 15 |
| 2004–2005: Radio, Interior Fuse No. 4 | 20 | |
| 14 | Dodge/Chrysler Neon II “Cigarette Lighter” / 12V Power Outlet Fuse | 20 |
| 15 | Multifunction Switch ( Hazard Warning Lamps ) | 15 |
| 16 | 2.0L RT (2004–2005): Intake Manifold Tuning Valve (IMTV) Relay | 15 |
| 17 | 2004–2005: Transmission Control Relay | 20 |
| 18 | 1999–2004: Horn Relay | 15 |
| 2.0L (2004–2005): Horn Relay | 10 | |
| 2.0L Turbo (2004–2005): Horn Relay | 15 | |
| 19 | Spare | - |
| 20 | Multifunction Switch, Headlamp Switch – Fog Lamps | 25 |
| 21 | Fuel Pump Relay, Engine Control Module (ECM) Relay (Fuel Injectors, Ignition Coils, Oxygen Sensors, Alternator, Ignition Capacitor), Data Link Connector (DLC), Powertrain Control Module (PCM), Surge Valve Solenoid (2.4L Turbo, 2004–2005) | 20 |
| 22 | 1999–2004: A/C Compressor Clutch Relay | 20 |
| 2004–2005: A/C Compressor Clutch Relay | 10 | |
| 23 | Stop Lamp Switch | 15 |
| Relays | ||
| R1 | Fuel Pump Relay | |
| R2 | 2.0L RT (2004–2005): Intake Manifold Tuning Valve | |
| R3 | - | |
| R4 | 2004–2005: Transmission | |
| R5 | 2.4L Turbo (2004–2005): Radiator Cooling Fan | |
| R6 | Horn Relay | |
| R7 | Radiator Cooling Fan | |
| 2.4L Turbo (2004–2005): Radiator Cooling Fan (High Speed) | ||
| R8 | Automatic Shutdown (ASD) Relay | |
| R9 | A/C Compressor Clutch Relay | |
| R10 | 2.4L Turbo (2004–2005): Radiator Cooling Fan (Low Speed) | |
| R11 | Starter Motor Relay | |
