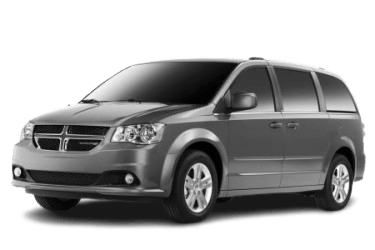

The Caravan is a series of minivans produced by Chrysler from model years 1984 to 2020. In this article, we will examine the fuse block diagrams for the fifth-generation Dodge Grand Caravan (RT platform), covering the model years 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020.
Below, you will find the location and a photograph of the fuse block. The fuses for the "Cigarette Lighter" and "Fuel Pump" circuits are highlighted in bold.
Engine Compartment
The fuse block is located adjacent to the battery. Remove the protective cover to gain access.
Accessing the fuse block.
General view of the Power Distribution Center (Totally Integrated Power Module).
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| M1 | Center High-Mounted Stop Lamp (CHMSL) / Brake Switch | 15 |
| M2 | Spare | - |
| M3 | Spare | 20 |
| M4 | Trailer Tow | 10 |
| M5 | Power Inverter | 25 |
| M6 | Cigar Lighter / Power Outlet #1 (ACC) / Rain Sensor | 20 |
| M7 | Power Outlet #2 (BATT/ACC SELECT) / Cigar Lighter Fuse #2 | 20 |
| M8 | Heated Front Seats (If Equipped) | 20 |
| M9 | Heated Rear Seats (If Equipped) | 20 |
| M10 | Video System / Satellite Radio / DVD / Hands-Free Module / Universal Garage Door Opener / Vanity Mirror Light / Video Streaming Module | 15 |
| M11 | Climate Control System | 10 |
| M12 | Amplifier (AMP) / Radio | 30 |
| M13 | Instrument Cluster / Alarm / Clock / Multi-Function Switch / ITM Module | 20 |
| M14 | Spare | 20 |
| M15 | Rearview Mirror / Instrument Cluster / Multi-Function Switch / Tire Pressure Monitoring System (TPMS) / Glow Plug Module (Export Diesel) / Shift Switch Assembly (Hall Effect) / Active Noise Cancellation | 20 |
| M16 | Occupant Classification Module (OCM) / Airbag System | 10 |
| M17 | Left Tail Lamp / License Plate Lamp / Parking Lamp / Daytime Running Lamps (DRL) | 15 |
| M18 | Right Tail Lamp / Parking Lamp / Daytime Running Lamps (DRL) | 15 |
| M19 | Auto Shutdown (ASD) Relay #1 and #2 | 25 |
| M20 | Instrument Cluster Interior Illumination / Switch Bank / Steering Column Module / Steering Wheel Switches | 15 |
| M21 | Auto Shutdown (ASD) Relay #3 | 20 |
| M22 | Right Horn (HI/LOW) | 10 |
| M23 | Left Horn (HI/LOW) | 10 |
| M24 | Rear Wiper Motor | 25 |
| M25 | Fuel Pump / Diesel Lift Pump | 20 |
| M26 | Power Mirror Switch / Driver Power Window Switch | 10 |
| M27 | Ignition Switch / Wireless Ignition Node (WIN) / Keyless Entry Module / Steering Column Lock | 10 |
| M28 | Powertrain Control Module (PCM) / Transmission Control Module (TCM) | 10 |
| M29 | Occupant Classification Module (OCM) | 10 |
| M30 | Rear Wiper Module / Power Folding Mirrors / J1962 Diagnostic Data Link Connector | 15 |
| M31 | Backup Lamps | 20 |
| M32 | Airbag Module / TT Europe | 10 |
| M33 | Powertrain Control Module (PCM) / Transmission Control Module (TCM) | 10 |
| M34 | Park Assist / HVAC Control Module / Headlamp Washers / Compass / IR Sensor / Rearview Camera / Front Door Courtesy Lamps / Rechargeable Flashlight / Automatic Headlamp Leveling Module (AHLM) / Diesel Cabin Heater Relay / Diesel Radiator Fan | 10 |
| M35 | Heated Mirrors | 10 |
| M36 | Power Outlet #3 / Cigar Lighter | 20 |
| M37 | Anti-Lock Braking System (ABS) / Electronic Stability Control (ESC) / Stop Lamp Switch / Fuel Pump Control System Relay | 10 |
| M38 | Power Door Locks / Liftgate Lock Motors | 25 |
| J1 | Power Seats | 40 |
| J2 | Power Liftgate Module | 30 |
| J3 | Rear Door Module | 30 |
| J4 | Driver Door Node | 25 |
| J5 | Passenger Door Node | 25 |
| J6 | Anti-Lock Braking System (ABS) Pump / Electronic Stability Control (ESC) | 40 |
| J7 | Anti-Lock Braking System (ABS) Valve / Electronic Stability Control (ESC) | 30 |
| J8 | Power Memory Seats (If Equipped) | 40 |
| J9 | Emissions (PZEV) / Flex Fuel (E85) | 40 |
| J10 | Headlamp Washer Relay / Manifold Tuning Valve (MTV) | 30 |
| J11 | Power Sliding Door Module / Anti-Theft Lock Relay | 30 |
| J12/K8 | Rear HVAC / Radiator Fan / Electric Backlight (EBL) | 30 |
| J13 | Ignition-Off Draw (IOD) - Main | 60 |
| J14 | Rear Window Defroster | 40 |
| J15 | Front HVAC Blower Motor | 30 |
| J17 | Starter Motor | 40 |
| J18 | Powertrain Control Module (PCM) / Transmission Range | 20 |
| J19 | Radiator Fan | 60 |
| J20 | Front Wiper Motor (LO/HI) | 30 |
| J21 | Front/Rear Washer Pump | 20 |
| J22 | Power Sunroof | 25 |
| K1 | Run/Accessory Relay | |
| K2 | Starter Relay | |
| K3 | Starter Motor Relay | |
| K4 | Rear Window Defroster / Run/Start System Relay | |
| K5 | Powertrain Control Module (PCM) Relay | |
| K6 | Electric Backlight (EBL) Relay | |
| K7 | Fuel Pump Relay | |
| K8 | Not Used | |
| K9 | Rear HVAC Blower Motor Relay | |
| K10 | Radiator Fan Low Speed / Auto Shutdown (ASD) Relay | |
| K11 | Radiator Fan High Speed / Auto Shutdown (ASD) Relay | |
J* - J-Case Fuse;
M* - Mini Fuse
Power seats are protected by a 30A circuit breaker located under the driver's seat. Power windows are protected by an additional 25A fuse located adjacent to the steering column, under the instrument panel.
