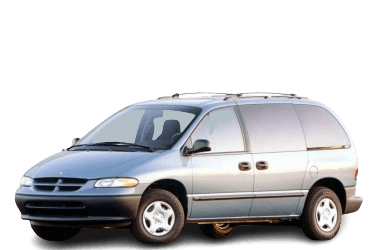

The Voyager and Caravan are a series of minivans produced by the American manufacturer Chrysler. European sales began in 1984. In this guide, we will provide a detailed analysis of the fuse box diagrams for the third-generation Dodge Caravan / Chrysler Voyager (AS platform; codes NS / GS), covering model years 1995, 1996, 1997, 1998, 1999, 2000, and 2001.
Here, you will find the locations and photographs of the power distribution centers (fuse boxes). The fuses responsible for the "Cigarette Lighter" and "Fuel Pump" are highlighted in bold.
Passenger Compartment
Located beneath the dashboard.
General view of the interior fuse block.
Example of accessing the fuse block.
| Interior Fuse Block Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Instrument cluster illumination, front right parking lamps | 10 |
| F2 | Instrument cluster | 10 |
| F3 | Right parking lamps | 15 |
| F4 | Fog lamps | 15 |
| F5 | License plate lamp, front left parking lamps | 15 |
| F6 | Instrument cluster indicators, HVAC system | 20 |
| F7 | Power mirrors | 10 |
| F8 | Audio system | 10 |
| F9 | Spare | 15 |
| F10 | Clutch pedal position sensor (clutch interlock switch) | 10 |
| F11 | Rear HVAC blower motor | 20 |
| F12 | Anti-lock Braking System (ABS), rear window defogger relay, driver's heated seat switch | 10 |
| F13 | Fuel heater relay / Fuel pump relay | 9 |
| F14 | Spare | 9 |
| F15 | Power door lock relay (driver's door) | 9 |
| F16 | Spare | 9 |
| F17 | Spare | 9 |
| F18 | Spare | 9 |
| F19 | Windshield washer pump (front and rear) | 9 |
| F20 | Power window switches (driver and passenger doors) | 9 |
| F21 | Power window switch (driver's door) | 9 |
| F22 | Spare | 9 |
| Relay Modules | ||
| 1 | Power door locks - unlock relay | |
| 2 | Power door locks - lock relay | |
| 3 | Turn signal / hazard flasher relay | |
| 4 | Power door locks (driver's door) - unlock relay | |
| 5 | Windshield washer pump relay | |
| 6 | Power folding mirrors - fold relay | |
| 7 | Power folding mirrors - unfold relay | |
| 8 | Rear window defogger relay | |
| 9 | Audio system relay | |
| 10 | Fog lamp relay | |
| 11 | Interior illumination relay | |
| 12 | Body Control Module (BCM) | |
Engine Compartment
Located adjacent to the battery. To gain access, the protective cover must be removed.
Example of the Power Distribution Center.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Supplemental Restraint System (SRS) / Airbags | 10 |
| F2 | 10 | |
| F3 | Spare | |
| F4 | Left high beam headlamp | 10 |
| F5 | Right high beam headlamp | 10 |
| F6 | Left low beam headlamp | 20 |
| F7 | Right low beam headlamp | 15 |
| F8 | Accessory power outlet, Dodge Caravan / Chrysler Voyager "Cigarette Lighter" fuse | 20 |
| F9 | Horn | 20 |
| F10 | Daytime Running Lamps (DRL), turn signal / hazard flasher, and parking lamp relays | 20 |
| F11 | HVAC system (A/C) | 15 |
| F12 | Anti-lock Braking System (ABS) | 25 |
| F13 | Brake lamps | 20 |
| F14 | Spare | |
| F15 | Automatic transmission | 20 |
| F16 | "Fuel Pump" fuse, Dodge Caravan / Chrysler Voyager | 20 |
| F17 | Engine Control Module (ECM) | 20 |
| F18 | Power mirrors, interior illumination | 15 |
| F19 | Windshield wipers | 30 |
| F20 | Radiator cooling fan motor relay 3 - Diesel | 40 |
| F21 | HVAC blower motor relay | 40 |
| F22 | F3/F4/F5 circuit protection - interior fuse block | 40 |
| F23 | Ignition switch, starter relay | 40 |
| F24 |
|
40 |
| F25 | Anti-lock Braking System (ABS) | 40 |
| F26 | F15 circuit protection - interior fuse block | 40 |
| F27 | Rear window defogger relay | 40 |
| F28 | Audio system, ignition switch, instrument cluster | 10 |
| Relay Modules | ||
| 1 | Spare | |
| 2 | "Cigarette Lighter" relay | |
| 3 | Horn relay | |
| 4 | Windshield wiper motor relay | |
| 5 | A/C compressor clutch relay | |
| 6 | Windshield wiper motor relay | |
| 7 | Spare | |
| 8 | High beam headlamp relay | |
| 9 | HVAC blower motor relay | |
| 10 | Low beam headlamp relay | |
| 11 | Starter relay | |
| 12 | Parking lamp relay | |
| 13 | Transmission Control Module (TCM) relay | |
| 14 | Fuel heater relay (Diesel) or "Fuel Pump" relay |
|
| 15 | Engine management system relay | |
General Component Locations
Locations of the major electronic control modules and components.
|
|
| No. | Component |
| 1 | A/C refrigerant pressure sensor |
| 2 | HVAC blower motor control module (integrated into the control panel) |
| HVAC system | |
| 3 | Evaporator temperature sensor |
| 4 | Supplemental Restraint System (SRS) control module |
| 6 | Battery |
| 7 | Data Link Connector (DLC) / OBD-II port |
| 8 | Radiator cooling fan motor relay 1 |
| 9 | Radiator cooling fan motor relay 2 - Diesel |
| 10 | Radiator cooling fan relay - Diesel |
| 11 | Power Distribution Center (engine compartment) |
| 12 | Interior fuse block |
| 13 | HVAC blower motor resistor |
| 14 | Horn 1 - located behind the front fascia |
| 15 | Horn 2 - located behind the front fascia |
| 16 | Immobilizer control module |
| 18 | Keyless entry receiver module |
| 20 | Transmission Control Module (TCM) |
| 22 | Transmission range sensor / Neutral safety switch |
