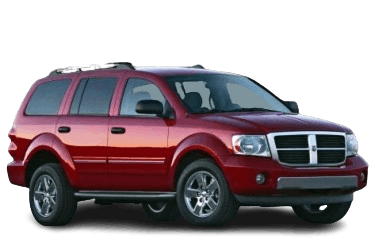

The Dodge Durango II is a five-door mid-size SUV equipped with rear- or all-wheel drive. In this article, we will take a detailed look at the fuse box diagrams for the second-generation Dodge Durango (HB platform; chassis code ND) spanning the 2003, 2004, 2005, 2006, 2007, 2008, and 2009 model years.
Here you will find the locations and photos of the power distribution centers. The fuses responsible for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
Engine Compartment
There are two fuse modules located here:
No. 1 - Power Distribution Center (PDC);
No. 2 - Integrated Power Module (IPM).
Fuse Box #1
Photo: An example of the Fuse Box No. 1 layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Starter Relay, Ignition Switch (Cabin Fuses No.: "16", "18", "19", "32", "34"; Engine Compartment Fuse No.: "16"), Run/Start System Relay | 30 |
| 2 |
|
30 |
| 3 | Trailer Brake Control Module | 40 |
| 4 | Ignition Switch (Cabin Fuses No.: "25", "35"), Sunroof Motor | 30 |
| 5 | '06-'09: Power Seats, Heated Seats, Seat Memory Module | 40 |
| '03-'05: Power Seats, Heated Seats, Seat Memory Module | 50 | |
| 6 | Ignition Switch (Cabin Fuses No.: "24", "25", "26") | 20 |
| 7 | Blower Motor Relay, Run/Remote System Relay | 40 |
| 8 | Auxiliary Relay | 40 |
| 9 | Spare | - |
| 10 | Powertrain Control Module (PCM) / Automatic Shutdown (ASD) Relay (Ignition Coils, Fuel Injectors, Capacitor) | 30 |
| 11 | '06-'09: Power Liftgate Module | 40 |
| 12 | Rear Defroster Relay (Cabin Fuse No.: "2"), Transfer Case Shift Motor | 40 |
| 13 | Rear Blower Motor Relay | 30 |
| 14 | Anti-lock Braking System (ABS) | 40 |
| 15 | Cabin Fuse Box Circuits No.: "7", "8", "9", "10", "33" | 50 |
| 16 | '06-'09: Starter Relay, Powertrain Control Module (PCM), Front Control Module (FCM) | 10 |
| 17 | - | - |
| 18 | Fuel Pump Fuse | 20 |
| 19 | Transmission Relay | 20 |
| 20 | - | - |
| 21 | Anti-lock Braking System (ABS) | 20 |
| 22 | Powertrain Control Module (PCM) | 20 |
| 23 | Trailer Tow Connector | 20 |
| 24 | A/C Compressor Clutch Relay | 15 |
| 25 | Brake Lamp Switch | 15 |
| 26 | Spare | - |
| 27 | Ignition Switch (Instrument Cluster) | 10 |
| 28 | Spare | - |
| R1 | '06-'09: Run/Start System Relay | |
| R2 | '06-'09: Run/Remote System Relay | |
| R3 | Spare | |
| R4 | Starter Relay | |
| R5 | Transmission Relay | |
| R6 | A/C Compressor Clutch Relay | |
| R7 | Fuel Pump Relay | |
| R8 | '06-'09: Brake Lamps (Traction Control) | |
| R9 | Blower Motor Relay | |
| R10 | Powertrain Control Module / Automatic Shutdown (ASD) Relay | |
Fuse Box #2
General layout of the Integrated Power Module (IPM).
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| R1 | Wiper On/Off Relay | |
| R2 | Wiper High/Low Speed Relay | |
| R3 | Horn Relay | |
| R4 | Rear Wiper Relay | |
| R5 | Trailer Tow Relay (Left) | |
| R6 | Trailer Tow Relay (Right) | |
| R7 | Park/Marker Lamps Relay | |
| R8 | Radiator Cooling Fan Relay (High Speed) | |
| R9 | Radiator Cooling Fan Relay (Low Speed) | |
| R10 | Fog Lamp Relay | |
| R11 | Adjustable Pedals Relay | |
| 8 | Left Park Lamp, License Plate Lamp | 10 |
| 9 | Trailer Tow Connector | 10 |
| 10 | Right Park Lamp | 10 |
| 12 | Front Control Module (FCM) | 20 |
| 13 | 20 | |
| 14 | Adjustable Pedals Relay | 20 |
| 15 | Fog Lamp Relay | 20 |
| 16 | Horn Relay | 20 |
| 17 | Rear Wiper Relay | 20 |
| 18 | Front Control Module (FCM) | 20 |
| 19 | '06-'09: Trailer Tow Relay (Left Side) | 20 |
| '04-'05: Trailer Tow Relay (Left Side) | 15 | |
| 20 | Front Control Module (FCM) | 20 |
| 21 | '06-'09: Trailer Tow Relay (Right Side) | 20 |
| '04-'05: Trailer Tow Relay (Right Side) | 15 | |
| 22 | Front Control Module (FCM) | 30 |
| 23 | Radiator Cooling Fan Relay (High/Low Speed) | 40 |
| 27 | Front Control Module (FCM), Cabin Fuses No.: "11", "12" |
30 |
| 28 | Cabin Fuses No.: "13", "14" | 30 |
Passenger Compartment
Located in the driver's footwell, behind a protective cover.
Photo: An example of the interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Spare | - |
| 2 | Power Mirrors | 10 |
| 3 | Instrument Panel Power Outlet, Dodge Durango Cigarette Lighter Fuse | 20 |
| 4 | Spare | - |
| 5 | Spare | - |
| 6 | Spare | - |
| 7 | Audio Amplifier | 25 |
| 8 | Mirror Control Module, Mirror Memory Module | 10 |
| 9 | Instrument Cluster | 20 |
| 10 | 15 | |
| 11 | Satellite Radio Receiver, Display Monitor | 10 |
| 12 | Radio / Audio Unit | 25 |
| 13 | HVAC Control Module (Automatic Temperature Control) | 15 |
| 14 | Overhead Console, OBD-II Diagnostic Connector, Hands-Free Module, Sentry Key Remote Entry Module (SKREEM), A/C Compressor Clutch Relay, Fuel Pump Relay, Powertrain Control Module (PCM) | 15 |
| 15 | Spare | - |
| 16 | Occupant Restraint Controller (ORC), Passenger Airbag Off Indicator, Occupant Classification Module | 10 |
| 17 | Spare | - |
| 18 | Sentry Key Remote Entry Module (SKREEM), A/C Compressor Clutch Relay, Fuel Pump Relay, Powertrain Control Module (PCM) | 10 |
| 19 | Instrument Cluster, 4WD Module, Heated Seats, Auto-Dimming Rearview Mirror, Infrared Sensor | 10 |
| 20 | Spare | - |
| 21 | Spare | - |
| 22 | Spare | - |
| 23 | Spare | - |
| 24 | HVAC Control Module (Manual), Rear HVAC Control Module (Automatic), Rear Blower Motor Relay, Rear Defroster Relay | 10 |
| 25 | Occupant Restraint Controller (ORC) / Airbag Module | 10 |
| 26 | Anti-lock Braking System (ABS), Brake Lamps (Traction Control), Steering Angle Sensor, Vehicle Dynamics Sensor | 10 |
| 27 | Spare | - |
| 28 | Spare | - |
| 29 | Spare | - |
| 30 | Spare | - |
| 31 | Spare | - |
| 32 | '04-'05: Starter Relay, Instrument Cluster, Powertrain Control Module (PCM) | 10 |
| 33 | Occupant Classification Module | 10 |
| 36 | Instrument Cluster, Powertrain Control Module (PCM) | 10 |
| 35 | Rear Power Outlet | 20 |
| Circuit Breakers | ||
| CB1 | Power Windows, Sunroof | 25 |
| CB2 | Spare | - |
| Relay Modules | ||
| R1 | Rear Defroster Relay | |
| R2 | Rear Blower Motor Relay | |
| R3 | Auxiliary Relay | |
| R4 | Spare | |
