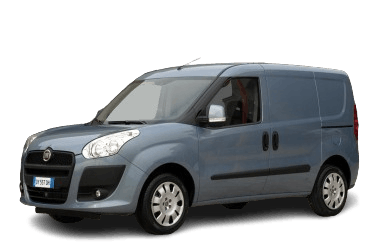

The second-generation Fiat Doblo was released in 2009. In late 2014, it underwent a facelift; the 2015 model year received a redesigned front fascia, a new grille, updated headlights and taillights, as well as revisions to the vehicle's electrical system. In this article, we will examine the fuse box diagrams for the Fiat Doblo (2nd Gen; Fiat Small platform; body code 263) covering the 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, and 2020 production years.
Here you will find the locations and photographs of the power distribution boxes. The fuses protecting the "Cigarette Lighter" and "Fuel Pump" circuits are highlighted in bold.
Passenger Compartment Fuse Box
It is located on the driver's side of the dashboard, behind the lower trim panel.
General view of the main fuse panel.
Type 1
2015–2020 models.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Component / Circuit Description | Rating (A) |
| F1 | Driver's heated seat | 10 |
| F2 | Passenger's heated seat | 10 |
| F3 | Fiat Doblo cigarette lighter | 15 |
| F4 | Third 12V power receptacle (dashboard) | 20 |
| F5 | Driver's side rear power window | 20 |
| F6 | Passenger's side rear power window | 20 |
| F12 | Right low beam headlight | 7.5 |
| F13 | Left low beam headlight, headlight leveling system | 7.5 |
| F31 | Power supply for engine compartment fuse box relay coils and Body Control Module (BCM) relay coils | 5 |
| F32 | Interior lighting, puddle lights, cargo area lighting | 7.5 |
| F36 | Battery positive voltage (+B) for EOBD diagnostic connector, audio system, Tire Pressure Monitoring System (TPMS) control module | 10 |
| F37 | Instrument cluster power supply, brake lights, Center High-Mounted Stop Lamp (CHMSL) | 5 |
| F38 | Door lock/unlock actuators, deadlock actuators, tailgate unlock actuator | 20 |
| F43 | Windshield and rear window washer pump | 15 |
| F47 | Driver's side front power window motor | 20 |
| F48 | Passenger's side front power window motor | 20 |
| F49 | Power supply for switch illumination, parking assist control module, TPMS control module, power exterior mirrors, rain sensor, sunroof control module, My-Port infotainment system receptacle | 5 |
| F50 | Airbag control module (SRS) | 7.5 |
| F51 | Ignition power for brake and clutch pedal switches, HVAC control module, Blue&Me™ control module, audio system | 7.5 |
| F53 | Instrument cluster | 5 |
| F94 | Rear 12V power receptacle | 15 |
| F95 | Cigarette lighter / 12V power receptacle | 15 |
| F96 | 15 | |
| F97 | Driver's heated seat | 10 |
| F98 | Passenger's heated seat | 10 |
Type 2
2009–2014 models.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Component / Circuit Description | Rating (A) |
| F12 | Left high beam headlight | 7.5 |
| F32 | Front and rear interior dome lights, vanity mirror lights, cargo area lighting | 7.5 |
| F53 | Instrument cluster | 5 |
| F38 | Central locking system / Door lock actuators | 20 |
| F36 | Battery positive voltage (+B) for EOBD diagnostic connector, HVAC control module, hazard warning flasher, audio system, Blue&Me™ control module, TPMS control module | 10 |
| F43 | Windshield and rear window washer pump | 15 |
| F48 | Passenger's side front power window motor | 20 |
| F13 | Right high beam headlight, headlight leveling system | 7.5 |
| F51 | Ignition power for brake and clutch pedal switches, HVAC control module, Blue&Me™ control module, audio system wiring | 7.5 |
| F37 | Ignition power for brake pedal switch, Center High-Mounted Stop Lamp (CHMSL) | 5 |
| F49 | Power supply for switch illumination, parking assist control module, TPMS control module, power exterior mirrors, rain sensor, sunroof control module, My-Port infotainment system receptacle | 5 |
| F31 | Power supply for engine compartment fuse box relay coils and Body Control Module (BCM) relay coils | 5 |
| F47 | Driver's side front power window motor | 20 |
| F94 | Rear 12V power receptacle | 15 |
| F95 | Cigarette lighter / 12V power receptacle | 15 |
| F96 | 15 | |
| F97 | Driver's heated seat | 10 |
| F98 | Passenger's heated seat | 10 |
Engine Compartment Fuse Box
It is located adjacent to the battery. To access the fuses, release the retaining clips and remove the protective cover.
General view of the Fiat Doblo engine compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Protected Component / Circuit Description | Rating (A) |
| F01 | Body Control Module (BCM) | 60 |
| F02 | Driver's side rear power window (manual transmission Doblo / Doblo Combi) | 20 |
| F03 | Ignition switch | 20 |
| F04 | Anti-lock Braking System (ABS) / Electronic Stability Control (ESC) module - hydraulic pump | 40 |
| F05 | PTC auxiliary heater 2 (diesel engines) | 50 |
| F06 | Radiator cooling fan (low speed) | 30 |
| F07 | Radiator cooling fan (high speed, 187/300/350W) | 40 |
| F07 | Radiator cooling fan (high speed, 500W) | 60 |
| F08 | HVAC blower motor | 40 |
| F09 | Remote swing door release relay (Cargo version) | 10 |
| F10 | Horn | 10 |
| F11 | Engine management system secondary loads | 10 |
| F14 | High beam headlights | 15 |
| F15 | PTC auxiliary heater 1 (diesel engines) | 30 |
| F16 | Engine Control Module (ECM), ignition relay 1 (with Start/Stop system) | 7.5 |
| F17 | Engine Control Module (ECM) power supply (1.3 MultiJet Euro 4, 1.4 Petrol, 1.6 MultiJet – 2.0 JTD) | 10 |
| F18 | Engine Control Module (ECM), engine management system main relay | 7.5 |
| F19 | A/C compressor clutch | 7.5 |
| F20 | Heated rear window (defogger) | 30 |
| F21 | Electric fuel pump | 15 |
| F22 | Engine management system primary circuit (1.3 MultiJet Euro 4, 1.4 Petrol) | 15 |
| Engine management system primary circuit (1.3 MultiJet Euro 4/Euro 5, 1.6 MultiJet – 2.0 JTD) | 20 | |
| F23 | ABS / ESC control module (solenoid valves) | 20 |
| F24 | ABS / ESC control module (ignition power), steering angle sensor | 5 |
| F30 | Fog lights | 15 |
| F81 | Glow plug control module (1.3 MultiJet Euro 4/Euro 5, 1.6 MultiJet – 2.0 JTD Euro 4/Euro 5) | 60 |
| F82 | Passenger's side rear window wiper (manual transmission Doblo / Doblo Combi) | 20 |
| F83 | Headlight washer pump | 20 |
| F85 | 12V power receptacle | 15 |
| F86 | Passenger compartment 12V power receptacle, Cigarette lighter | 15 |
| F87 | Intelligent Battery Sensor (IBS) for Start/Stop system | 5 |
| F88 | Heated exterior mirrors | 7.5 |
| Engine Compartment Relay Assignments | |
|
|
| R1 | Heated seats / 12V power receptacle / HVAC blower motor |
| R2 | Radiator cooling fan (high speed) |
| R3 | Headlight washer pump |
| R4 | Horn relay |
| R5 | Radiator cooling fan (low speed) |
| R6 | Heated rear window and exterior mirrors |
| R7 | Engine management system main relay |
| R8 | Fuel pump / Auxiliary fuel pump relay |
| R9 | Starter relay (or not equipped) |
| R10 | Fog lights |
| R11 | A/C compressor clutch |
| R12 | High beam headlights |
| R13 | Starter relay (or not equipped) |
