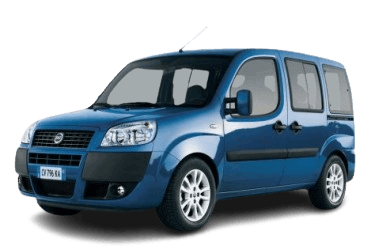

Fiat Doblo combines the features of a family minivan and a commercial van. The car is produced since 2000 and is manufactured in different countries (Turkey, Brazil, Vietnam). In this article, we will take a detailed look at the fuse box diagrams for the Fiat Doblo (1st Gen; body code 223) 2000, 2001, 2002, 2003, 2004, 2005, 2005, 2006, 2007, 2007, 2008, 2008, 2009, 2010, 2010, 2011, 2012, 2012, 2013, 2014, 2015, 2016 years of manufacture.
Here you will find the locations and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
All electrical equipment
General layout of electronic components in the vehicle.
1. Electronic air conditioner control module;
2. Air temperature sensor behind the air conditioner evaporator;
3. Air conditioner/heater fan motor;
4. SRS electronic control module;
5. SRS impact sensor, driver's side;
6. SRS impact sensor, passenger side;
7. Anti-theft system/central locking signal sensor;
8. Battery;
9. Diagnostic connector (DLC);
10. Fuse and relay box, under hood;
11. Fuse box, in the passenger compartment;
12. Heater fan motor resistor;
13. Buzzer;
14. Immobilizer ring antenna;
15. Inertia fuel cut-off switch;
16. Multifunction control unit-fuse box/dashboard relay-functions: SRS system indicator, air conditioning system, anti-theft system, alternator, ABS system indicator, audio system, central locking, speed maintaining system, power windows, fog lights, headlights, headlight corrector, headlight washers, door mirror heaters, seat heaters, rear window heater, immobilizer, turn signal indicators/emergency lights, instrument cluster illumination, instrument cluster, instrument cluster indicators, interior lamps, license plate illumination lamps, power steering, fog lights, rear window wiper/washer, front/rear position lamps, brake lights, sunroof, telephone, trip computer, windshield wiper/washer.;
17. Navigation system control module - in the audio system unit;
18. Parking system control module;
19. Parking sensors - rear bumper;
20. Seat heater;
21. Vehicle speed sensor - gearbox;
22. Windshield washer pump electric motor.
In the passenger compartment
Located behind the protective cover under the dashboard on the driver's side.
Access example.
Type 1
General view of the Fiat Doblo interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Reserve | - |
| 2 | Power window front right door | 20 |
| 3 | Audio system, cell phone, instrument panel illumination, power exterior mirrors, trailer, illuminated seat heating controls, seatbelt buzzer dimming relay | 7.5 |
| 4 | Reserve | - |
| 5 | Left dipped beam headlight, headlight corrector | 10 |
| 6 | Reserve | - |
| 7 | Reserve | - |
| 8 | Stop lamps, auxiliary stop lamp, instrument cluster illumination and indicator lamps (ignition switch powered) | 10 |
| 9 | ABS (Ignition Switch Powered), Luggage Compartment Lamp, Interior Lamp | 10 |
| 10 | Right dipped beam headlight | 10 |
| 11 | Heated seats | 15 |
| 12 | Power window front left door | 20 |
| 13 | Lighting system | 15 |
| 14 | Airbag | 7.5 |
| 15 | Instrument panel illumination, license plate illumination lamp | 7.5 |
| 16 | Rear window wiper | 15 |
| 17 | Heated mirrors | 7.5 |
| 18 | Windscreen wiper and washer pump, rear window washer pump | 30 |
| 19 | Rear window heating | 30 |
| 20 | Cigarette lighter fuse doblo, additional power socket | 20 |
| 21 | Bass speaker | 15 |
| 22 | Audio system, mobile phone, diagnostic connector | 10 |
| 23 | central locking system | 20 |
| 24 | Turn indicators, emergency warning, instrument cluster illumination and indicator lamps (battery powered) | 10 |
| 25 | Pump relay, heater fan relay, HVAC control switch with air conditioning, reversing lights | 7.5 |
| Relay modules | ||
| R1 | lights | |
| R2 | rear view mirror heater | |
| R3 | rear window heater | |
| R4 | dipped headlights | |
Type 2
The second variant of the block design.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Right headlight | 7.5 |
| 2 | Luggage compartment lights | 7.5 |
| 3 | Instrument panel | 5 |
| 4 | central locking system | 20 |
| 5 | Radio / Climate control / Diagnostic connector / Bluetooth control unit | 10 |
| 6 | Windshield and rear window washer | 15 |
| 7 | Passenger side power window | 20 |
| 8 | Dipped beam / Headlight position adjustment (corrector) | 7.5 |
| 9 | Safety Airbags | 7.5 |
| 10 | Brake lights / Radio / Electric mirrors / Climate control / Bluetooth control unit | 7.5 |
| 11 | Dashboard / Brake lights | 5 |
| 12 | Instrument panel / Cigarette lighter fuse / Reverse light switch / Parking sensor / Electric sunroof | 5 |
| 13 | Engine compartment junction block | 5 |
| 14 | driver's side power windows | 20 |
In the engine compartment
It is located near the battery. To access it, remove the protective cover by releasing the three fasteners.
Type 1
Access example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F1 | Ignition Auxiliary Relay | 40 |
| F2 | Light bulb circuit control relay, door mirror heater relay, rear window heater relay, audio system, telephone jack, navigation system, interior light bulbs (in sun visor), duffel box, luggage compartment light bulb, diagnostic connector | 70 |
| F3 | Except 1.9D: Alternator cooling fan motor (low speed) | 30 |
| F4 | Except 1.9D : Alternator cooling fan motor | 40 |
| F5 | glow plugs | 60 |
| F6 | Anti-Lock Braking System(ABS) | 50 |
| F7 | Ignition lock | 20 |
| F8 | ECM Circuit Fuse - Battery Voltage | 7.5 |
| F9 | Fuel pump | 15 |
| F10 | Fuel Pump (Diesel) | 7.5 |
| F11 | Fuel pump fuse (1, 2 petrol) | 20 |
| F12 | Tachometer | 15 |
| F13 | empty | — |
| F14 | Fuel Filter Heater - Diesel | 20 |
| F15 | high beam headlights | 10 |
| F16 | Cooling fan motor | 30 |
| F17 | high beam headlights | 10 |
| F18 | Horn (beep) | 15 |
| F19 | Air conditioner | 7.5 |
| F20 | Electronic engine control unit | 7.5 |
| F21 | Fog lights | 15 |
| F22 | empty | — |
| Relay modules | ||
| 1 | high beam headlights | |
| 2 | heater fan motor | |
| 3 | Horn (beep) relay | |
| 4 | fog lights | |
| 5 | Empty | |
| 6 | cooling fan motor | |
| 7 | air conditioning compressor electromagnetic clutch | |
| 8 | cooling fan motor | |
| 9 | Fuel pump relay | |
| 10 | Engine management system | |
| 11 | Empty | |
| 12 | Engine management system | |
Type 2
The second variant of execution of the unit in the under-hood space.
| Diagram | ||
|---|---|---|
|
||
| No. | Decryption | A |
| 1a | Rear right power window | 20 |
| 1b | Socket for accessories | 50 |
| 2 | Vacuum brake pump | 40 |
| 3 | Glow plug control unit | 50 / 60 |
| 4 | Rear left power window | 20 |
| 5 | Body control unit | 60 |
| 6 | Cooling fan, low speed | 30 |
| 7 | Ignition lock | 20 |
| 8 | Cooling fan, high speed | 30 |
| 9 | Additional heater | 50 |
| 10 | headlight washer | 20 |
| 11 | climate control fan | 40 |
| 12 | Engine management | 15 / 20 |
| 12 | Engine management | 10 |
| 14 | Engine management | 10 |
| 15 | Brake control (BS) | 20 |
| 16 | Additional heater | 30 |
| 17 | Fiat Doblo fuel pump fuse | 15 |
| 18 | The engine control unit | 7.5 |
| 19 | Fog lights | 15 |
| 20 | Not used | - |
| 21 | Manual climate control compressor | 7.5 |
| 22 | Trunk door | 10 |
| 23 | high beam | 15 |
| 24 | Heated mirrors | 7.5 |
| 25 | Rear window heating | 30 |
| 26 | 12V power outlet | 30 |
| 27 | Accessory socket | 30 |
| 28 | Battery sensor | 5 |
| 29 | Engine management | 75 |
| 30 | Power steering, brake system (BS) | 5 |
| 31 | Horn (beep) | 10 |
| R1 | Seat heating / 12V socket / Climate control fan | |
| R2 | Cooling fan, high speed | |
| R3 | headlight washer | |
| R4 | Horns (beep) relay | |
| R5 | Cooling fan, low speed | |
| R6 | Heated rear window and exterior mirrors | |
| R7 | engine management system | |
| R8 | fuel pump relay | |
| R9 | start signal or empty | |
| R10 | Fog lights | |
| R11 | Air conditioning compressor | |
| R12 | high beam headlights | |
| R13 | start signal or empty | |
