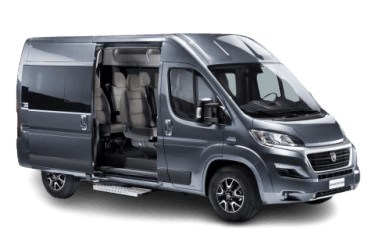

The Fiat Ducato was available in the following body styles: panel van, chassis cab / flatbed, and minibus. The vehicle was equipped with 2.3L and 3.0L engines. In 2014, it underwent a facelift. This article provides detailed fuse box diagrams and allocation charts for the Fiat Ducato (3rd generation; factory index 290/295; SEVEL X250 platform) for model years 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, and 2022.
Below you will find fuse box locations, photos, and diagrams. The fuses responsible for the “Cigarette Lighter” and “Fuel Pump” are highlighted in bold.
In the Engine Compartment
Located on the right side of the engine compartment, beneath a protective cover.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F03 | Ignition switch | 30 |
| F04 | Heated fuel filter | 40 |
| F05 | Puma engine evaporator / Cabin ventilation with Webasto heater, automated manual transmission (AMT) hydraulic pump (+battery) | 20/50 |
| F06 | Engine cooling fan (high speed) | 40/60 |
| F07 | Engine cooling fan (low speed) | 40/50/60 |
| F08 | Blower motor / Interior fan | 40 |
| F09 | Rear 12V auxiliary power outlet | 15 |
| F10 | Horn | 15 |
| F14 | 12V Power Outlet | 15 |
| F15 | Cigarette lighter fuse | 15 |
| F18 | Engine Control Module (ECM), automated manual transmission (AMT) control module | 7.5 |
| F19 | Air conditioning compressor clutch | 7.5 |
| F20 | Windshield wipers | 30 |
| F21 | Fuel pump fuse | |
| F24 | Auxiliary control panel, power side mirror adjustment | 7.5 |
| F30 | Heated exterior mirrors | 15 |
In the Passenger Compartment
Two distribution boxes are located inside the cabin to protect the electrical circuits.
Main Fuse Box
The main unit is located on the left side of the dashboard. To access the fuses, remove the retaining screws (A) and detach the cover panel.
General view of the Fiat Ducato 3 interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F12 | Right low-beam headlight | 7.5 |
| F13 | Left low-beam headlight | 7.5 |
| F31 | Engine compartment control unit relay, dashboard control unit relay (+ignition) | 5 |
| F32 | Cabin dome lights / interior lighting | 7.5 |
| F33 | Battery status monitoring sensor (Start & Stop models) | 7.5 |
| F34 | Minibus interior lighting (emergency lighting) | 7.5 |
| F36 | Audio head unit, air conditioning system, alarm system, tachograph, battery disconnect control unit, Webasto auxiliary heater timer | 10 |
| F37 | Brake light switch (main), center high-mounted stop light (CHMSL), instrument cluster (+CCL) | 7.5 |
| F38 | Central door locking | 20 |
| F43 | Windshield wipers | 20 |
| F47 | Driver-side power window | 20 |
| F48 | Passenger-side power window | 20 |
| F49 | Parking sensor ECU, audio head unit, steering wheel controls, center console switches, left switch panel, auxiliary panel, battery disconnect control unit (+ignition) | 5 |
| F51 | Air conditioning, power steering ECU, reverse lights, diesel filter water-in-fuel sensor, mass air flow (MAF) sensor, tachograph (+ignition) | 5 |
| F53 | Instrument cluster | 7.5 |
| F89 | Not used / Empty | - |
| F90 | Left high-beam headlight | 7.5 |
| F91 | Right high-beam headlight | 7.5 |
| F92 | Left front fog lamp | 7.5 |
| F93 | Right front fog lamp | 7.5 |
Auxiliary Fuse Box
Located on the passenger-side B-pillar. Remove the cover panel for access.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| F54 | Not used / Empty | - |
| F55 | Heated seats | 15 |
| F56 | 12V auxiliary power outlet (rear passenger seats) | 15 |
| F57 | Auxiliary under-seat heater | 10 |
| F58 | Heated rear window (left) | 15 |
| F59 | Heated rear window (right) | 15 |
| F60 | Not used / Empty | - |
| F61 | Not used / Empty | - |
| F62 | Not used / Empty | - |
| F63 | Passenger auxiliary heater actuator | 10 |
| F64 | Not used / Empty | - |
| F65 | Passenger auxiliary heater blower fan | 30 |
