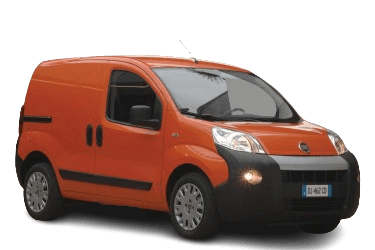

The third generation Fiat Fiorino was presented in the summer of 2007 and went on sale in early 2008. The car was developed jointly by Fiat, PSA Peugeot Citroën and Tofaş and is based on the Grande Punto platform. In June 2008 was presented a derivative passenger compact van - Qubo. In this article we will understand in detail fuse box diagrams Fiat Fiorino and Qubo (3rd Gen; body indices 225 / 300) 2008, 2009, 2010, 2011, 2012, 2013, 2013, 2014, 2015, 2016, 2017, 2018 years of manufacture.
Here you will find the locations and photos of the mounting blocks. Also, we will separately mark the fuses responsible for the cigarette lighter and the fuel pump.
In the engine compartment
Located on the right side of the engine compartment.
1. Remove the protective cover (A) from the battery plus terminal.
2. Press the catch (A) to remove the unit's protective cover (B);
3. Slide the cover toward the headlight by turning it counterclockwise (as shown), and then remove it.
General view of the Fiat Fiorino / Qubo underhood fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Body control unit | 60 |
| 2 | air conditioner fan | 40 |
| 3 | Ignition lock | 20 |
| 4 | ABS/ESP control unit | 40 |
| 5 | Not used | - |
| 6 | Cooling fan, low speed | 20 |
| 7 | Cooling fan, high speed | 30 |
| 8 | Fog Lights / Climate Control Fan | 15/30 |
| 9 | LNG / Trailer | 10/15 |
| 10 | Horn (beep) | 10 |
| 11 | Engine management system | 10 |
| 14 | Headlights, high beam lamp | 15 |
| 15 | Rear 12V power outlet | 15 |
| 16 | Transmission, Engine Control Unit | 7.5 |
| 17 | engine control unit | 10 |
| 18 | Engine control unit / CNG | 7.5/5 |
| 19 | Air conditioning compressor | 7.5 |
| 20 | Heated mirrors | 30 |
| 21 | Fuel module (fuel pump fuse) | 15 |
| 22 | Injectors, Engine management system, Ignition coil | 15/20 |
| 23 | ABS/ESP control unit | 20 |
| 24 | Speed sensor, Steering, ABS/ESP system | 7.5 |
| 30 | Fog lights | 15 |
| 81 | Glow plug control unit | 60/50 |
| 82 | Transmission Hydraulic Pump Relay | 30 |
| 83 | 30 | |
| 84 | Solenoid(s) | 15 |
| 85 | Fiat Fiorino / Qubo cigarette lighter fuse, Seat heating | 30 |
| 87 | Reverse lights, Air flow meter, fuel water sensor, high beam relay, fog lights, air conditioner compressor or low battery sensor, demister | 5/7.5 |
| R2 | Cooling fan, high speed | |
| R2 | Cooling fan, low speed | |
| R3 | Gearbox hydraulic pump relay | |
| R4 | Engine management relay | |
| R5 | Climate control, Fog lights | |
| R6 | Seat heating, cigarette lighter | |
| R7 | Engine start/stop relay | |
| R8 | Fog lights, Climate control fan | |
| R9 | CNG system or Engine start/stop relay | |
| R10 | Rear mist eliminator relay | |
| R11 | headlights, high beam | |
| R12 | Horn (beep) | |
| R13 | air conditioning compressor | |
| R14 | Fuel module (fuel pump relay) | |
In the passenger compartment
Located behind the dashboard trim. Using the metal insert of the ignition key, loosen the two screws (A), and then remove the cover (B).
General view of the interior fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 12 | Headlights, dipped beam | 7.5 |
| 13 | Left dipped beam (with headlight angle adjustment ) / Adjusting the headlight angle | 5/7.5 |
| 31 | Junction Box / Rear 12V Power Outlet | 5 |
| 32 | Interior and trunk lighting, interior lighting timer | 7.5 |
| 36 | Diagnostic connector / Radio system / Bluetooth / Alarm (siren) | 10 |
| 37 | Stop lamp switch, Instrument panel | 5 |
| 38 | central locking system | 20 |
| 43 | Front and rear washer pumps | 15 |
| 47 | Driver power window | 20 |
| 48 | Passenger power window | 20 |
| 49 | Light control, Alarm sensor, Rear view mirror control, Parking sensor | 5 |
| 50 | Airbag control unit | 7.5 |
| 51 | Mirrors, climate control, radio, brake light and light switch, ignition relay, clutch, Bluetooth system | 5 |
| 53 | Dashboard | 5 |
| 41 | Heated mirrors | 7.5 |
| 45 | Spare | - |
| 46 | Spare | - |
| 90 | Spare | - |
| 91 | Spare | - |
| 92 | Spare | - |
| 93 | Spare | - |
| 94 | cigarette lighter fuse Fiat Fiorino / Qubo | 15 |
| 95 | Rear 12V power outlet | 15 |
| 96 | Front 12V power outlet | 15 |
| 97 | Heated driver's seat | 10 |
| 98 | Passenger seat heating | 10 |
