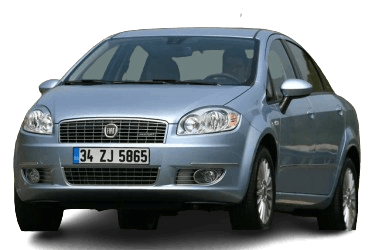

The Fiat Linea is a C-segment sedan produced since March 2007. Based on the Grande Punto hatchback architecture, it features a wheelbase extended by over 90 mm. Originally intended for emerging markets, it replaced the Albea model. This article provides a comprehensive overview of the fuse box diagrams for the Fiat Linea (Fiat Small platform; chassis code 323) covering the 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, and 2015 model years.
Below you will find the locations and photographic references for the power distribution boxes. The fuses designated for the “Cigarette lighter” and “Fuel pump” are highlighted in bold.
Engine Compartment
The engine compartment fuse box is located adjacent to the battery. The protective cover must be removed to gain access.
Overview of the Fiat Linea engine compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 00 | HVAC control module | 50 |
| 1 | Instrument cluster | 70 |
| 2 | 60 | |
| 3 | Ignition switch | 20 |
| 4 | Anti-lock Braking System (ABS) | 30 |
| 5 | 40 | |
| 6 | Radiator cooling fan (low speed) | 30 / 20 |
| 7 | Radiator cooling fan (high speed) | 40 20 30 |
| 8 | HVAC blower motor | 30 |
| 9 | Transmission hydraulic pump relay | 30 / 20 |
| 10 | Horn | 10 |
| 11 | Engine Control Module (ECM) | 10 |
| 14 | Right high beam headlamp | 7.5 |
| 15 | Left high beam headlamp | 7.5 |
| 16 | Automated manual transmission control module / Immobilizer / ECM / Gear selector | 7.5 |
| 17 | Engine Control Module (ECM) | 10 |
| 19 | Automated manual transmission control module, ECM | 10 |
| 19 | A/C compressor clutch | 7.5 |
| 20 | Transmission hydraulic pump relay | 30 |
| 21 | Fuel pump | 15 |
| 22 | Fuel injectors, ignition coils | 15 |
| 23 | Windshield wiper motor | 20 |
| 24 | Spare | |
| 30 | Front fog lamps | 15 |
| R1 | Radiator cooling fan relay (high speed) | |
| R2 | High beam headlamp relay | |
| R3 | HVAC blower motor relay | |
| R4 | Horn relay | |
| R5 | Front fog lamp relay | |
| R6 | Transmission hydraulic pump relay | |
| R7 | A/C compressor relay | |
| R8 | Radiator cooling fan relay (low speed) | |
| R9 | Fuel pump relay | |
| R10 | Main engine relay | |
| R11 | Immobilizer relay | |
| R12 | Transmission hydraulic pump relay | |
Passenger Compartment
This fuse box is located behind a plastic trim panel below the dashboard. To access the power distribution box, remove the retaining screws and detach the cover.
Accessing the passenger compartment fuse box.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 12 | Right low beam headlamp | 7.5 |
| 13 | Left low beam headlamp, headlamp leveling motor | 7.5 |
| 31 | INT/A (Ignition) for relay coils (T08, T17) in the engine compartment fuse box, Body Control Module (BCM) | 7.5 |
| 32 | Subwoofer | 15 |
| 33 | Power window control module (rear left window motor) | 20 |
| 34 | Power window control module (rear right window motor) | 20 |
| 35 | Reversing and brake lamp control, Mass Air Flow (MAF) sensor, glow plug control module, fuel filter water-in-fuel sensor, vehicle speed sensor, fuel level sensor | 7.5 |
| 36 | Power window control module | 7.5 |
| 37 | Instrument cluster, brake lamp switch | 7.5 |
| 38 | Trip computer module | 20 |
| 39 | Audio system receiver | 10 |
| 40 | Rear window defogger | 30 |
| 41 | Heated exterior mirrors | 7.5 |
| 42 | Anti-lock Braking System (ABS) control module | 7.5 |
| 43 | Windshield washer pump (bi-directional) | 20 |
| 44 | Cigarette lighter / 12V power outlet | 15 |
| 45 | Trunk release actuator | 10 |
| 47 | Power window control module (driver's window motor) | 20 |
| 48 | Power window control module (front passenger window motor) | 20 |
| 49 | Interior illumination: steering wheel audio controls, climate control panel, rearview mirror switch, power window switches, alarm module, electrochromic mirror, rain sensor | 7.5 |
| 50 | Supplemental Restraint System (SRS) / Airbag control module | 7.5 |
| 51 | Cruise control module, audio/Blue&Me system, parking assist module | 7.5 |
| 52 | Power window control module, power driver's seat | 15 |
| 53 | Body Control Module (BCM) and instrument cluster | 7.5 |
| R1 | Power window relay | |
| R2 | Rear window defogger relay | |
| R3 | Ignition relay | |
| R4 | Low beam headlamp relay | |
