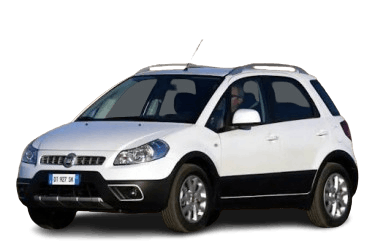

The Fiat Sedici is a compact SUV co-developed and produced by the Italian automaker Fiat and the Japanese manufacturer Suzuki. The vehicle's styling was designed by Centro Stile Fiat. In this article, we will examine in detail the fuse box diagrams for the first-generation Fiat Sedici (factory index 189), covering model years 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, and 2014.
Here, you will find the locations and photographs of the power distribution centers. The fuses responsible for the "Cigarette Lighter" and "Fuel Pump" are highlighted in bold.
Engine Compartment
The main power distribution center is located near the battery, beneath a protective cover. Additionally, a high-current fusible link board is mounted directly on the positive battery terminal. The layout of the underhood electrical centers varies depending on the engine type.
Fuse Box
Diesel Engine
The photograph below serves as an example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 8 | Right Headlight | 15 |
| 9 | Left Headlight | 15 |
| 10 | Front Fog Lights | 20 |
| 11 | Starter Motor | 50 |
| 12 | Electric Power Steering (EPS) | 60 |
| 13 | ABS Control Module | 40 |
| 14 | Radiator Cooling Fan Motor | 30 |
| 15 | ABS Control Module | 30 |
| 16 | Starter | 30 |
| 17 | Ignition Switch | 50 |
| 18 | Engine Cooling Fan | 30 |
| 19 | A/C Compressor | 10 |
| 20 | Fuel Pump | 20 |
| 21 | A/C Condenser Fan | 30 |
| 22 | Fuel Injection | 20 |
| R23 | Auxiliary Heater Relay 3 | |
| R24 | A/C Compressor | |
| R25 | High-Pressure Fuel Pump | |
| R26 | A/C Condenser Fan | |
| R27 | Front Fog Lights | |
| R28 | Auxiliary Heater | |
| R29 | Auxiliary Heater Relay | |
| R30 | Starter Relay | |
| R31 | Radiator Cooling Fan | |
| R32 | Radiator Cooling Fan | |
| R33 | Radiator Cooling Fan | |
Gasoline Engine
Diagram.
|
||
| No. | Description | A |
| 6 | Right Headlight | 15 |
| 7 | Left Headlight | 15 |
| 8 | Front Fog Lights | 20 |
| 9 | Power Steering Control Module (EPS) | 60 |
| 10 | ABS Control Module | 40 |
| 11 | Radiator Cooling Fan Motor | 30 |
| 12 | ABS Control Module | 30 |
| 13 | Starter | 30 |
| 14 | Ignition Switch | 30 |
| 15 | Engine Cooling Fan | 30 |
| 16 | A/C Compressor | 20 |
| 17 | Electronic Throttle Control (ETC) Motor | 15 |
| 18 | Automatic Transmission Control Module | 50 |
| 19 | Fuel Pump | 15 |
| R2 | Automatic Transmission | |
| R21 | A/C Compressor | |
| R22 | Fuel Pump Relay | |
| R23 | A/C Condenser Fan | |
| R24 | Front Fog Lights | |
| R25 | Electronic Throttle Control (ETC) | |
| R26 | Main Relay | |
| R27 | Starter Relay | |
| R28 | Engine Cooling Fan | |
Power Fuse Panel
Located on the positive battery terminal.
| Diagram | ||
|---|---|---|
| No. | Description | A |
| Diesel | ||
|
||
| F36 | Engine Control Module (ECM) | 15 |
| F37 | 15 | |
| F38 | 20 | |
| 1 | Fuel Heater Relay | |
| 2 | Engine Control Relay (ECR) | |
| Gasoline | ||
|
||
| 1 | Main Electrical Load | 80 |
| 2 | Power Windows, Ignition Switch, Wipers, Starter Motor | 50 |
| 3 | Tail Lights, Rear Defroster, Power Door Locks, Hazard Lights/Siren, Dome Light | 50 |
| 4 | HVAC Blower Motor, A/C Compressor, Power Steering | 80 |
| 5 | Radiator Cooling Fan, Fog Lights, Headlights | 15 |
Auxiliary Fuse Panel
Applicable to diesel models only.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | A |
| 1 | Glow Plugs | 80 |
| 2 | Auxiliary Heater | 30 |
| 3 | Main Electrical System | 140 |
| 4 | Exterior Lighting | 50 |
| 5 | Auxiliary Heater | 30 |
| 6 | Auxiliary Heater | 50 |
| 7 | Auxiliary Heater | 30 |
Passenger Compartment
The interior fuse box is located on the left side, underneath the dashboard.
General view of the Fiat Sedici passenger compartment fuse box.
| Diagram | ||
|---|---|---|
Diesel. |
||
Gasoline. |
||
| No. | Description | A |
| 1 | Front and Rear Wiper Motors | 15 |
| 2 | Fuel Pump Relay, Alternator, Oxygen (O2) Sensors, Ignition Coils, Mass Air Flow (MAF) Sensor, Intake Air Temperature (IAT) Sensor, Engine Control Module (ECM), Immobilizer Control Module | 15 |
| 3 | HVAC Air Recirculation, A/C, Cruise Control, 4WD System, Headlight Leveling, Brake Lights, Engine Control Module (ECM), Auxiliary Heater, Reverse Lights | 10 |
| 4 | Hazard Light Relay, Instrument Cluster | 10 |
| 5 | Body Control Module (BCM) / Power Mirror Switch | 15 |
| 6 | Cigarette Lighter, Audio System, Multimedia Display, 12V Accessory Power Outlet | 15 |
| 7 | Daytime Running Lights (DRL), Rear Wiper, Instrument Cluster | 30 |
| 8 | Power Steering Control Module (EPS) / Steering Angle Sensor | 10 |
| 9 | Supplemental Restraint System (SRS) / Airbag Control Module | 15 |
| 10 | ABS and Electronic Stability Program (ESP), Accelerator Pedal Position (APP) Sensor, Vehicle Speed Sensor (VSS) | 10 |
| 11 | Instrument Cluster | 10 |
| 12 | Brake Lights | 10 |
| 13 | Body Control Module (BCM) | 20 |
| 14 | 4WD Control Module | 15 |
| 15 | Starter Relay | 10 |
| 16 | Heated Seats | 15 |
| 17 | HVAC Blower Motor Relay, Ignition 2 | 10 |
| 18 | Rear Fog Lights | 10 |
| 19 | Audio System, OBD-II Diagnostic Port, Cargo Area Light, Multifunction Display, Interior Dome Lights, Map Lights | 15 |
| 20 | Rear Window Defroster | 20 |
| 21 | Horn Relay / Hazard Light Relay | 15 |
| 22 | Immobilizer System | 10 |
| 23 | Not Used | - |
| 24 | Power Windows | 30 |
