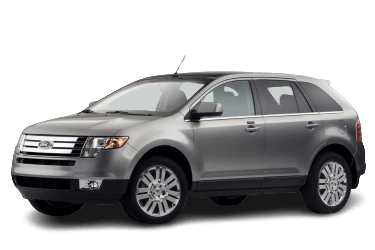

The Ford Edge is a midsize crossover SUV produced from 2006 to the present across two generations. This guide provides detailed fuse and relay box diagrams and assignments for 1st-generation Ford Edge (CD3 platform; code U387) models manufactured from 2006 through 2014.
Always verify the fuse and relay assignments against your vehicle's owner manual or the diagram located on the underside of the fuse cover.
Engine Compartment Fuse Box
The engine compartment fuse box is located under the hood on the driver side, adjacent to the battery, underneath a protective cover.
Engine compartment fuse box location (reference photo).
| Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | Not used |
| 2 | Not used |
| 3 | Not used |
| 4 | 30 A - Windshield wipers |
| 5 | 40 A - Anti-lock brake system (ABS) pump |
| 6 | Not used |
| 7 | 30 A - Power liftgate |
| 8 | 20 A - Moonroof / Sunroof |
| 9 | 20 A - Rear console auxiliary power point |
| 10 | Not used |
| 11 | Heated rear window and heated mirror relay |
| 12 | Not used |
| 13 | Starter relay |
| 14 | Not used |
| 15 | Fuel pump relay |
| 16 | Not used |
| 17 | Not used |
| 18 | 40 A - Front blower motor |
| 19 | 30 A - Starter motor |
| 20 | 20 A - Front console auxiliary power point |
| 21 | 20 A - Cargo area auxiliary power point |
| 22 | Not used |
| 23 | 30 A - Driver power seat |
| 24 | Not used |
| 25 | Not used |
| 26 | 40 A - Heated rear window |
| 27 | 20 A - Instrument panel power point / Cigarette lighter |
| 28 | 30 A - Climate-controlled seats |
| 29 | Not used |
| 30 | Not used |
| 31 | Not used |
| 32 | Not used |
| 33 | Not used |
| 34 | Blower motor relay |
| 35 | Not used |
| 36 | Power fold rear seat relay |
| 37 | Trailer tow right turn / stop lamp relay |
| 38 | Not used |
| 39 | 40 A - Engine cooling fan (vehicles with tow package) 60 A - Engine cooling fan (vehicles without tow package) |
| 40 | 40 A - Engine cooling fan (vehicles with tow package only) |
| 41 | Not used |
| 42 | 30 A - Passenger power seat |
| 43 | 25 A - Anti-lock brake system (ABS) valves |
| 44 | Rear window washer relay |
| 45 | 5 A - Rain sensor |
| 46 | Not used |
| 47 | Not used |
| 48 | Not used |
| 49 | Not used |
| 50 | 15 A - Heated exterior mirrors |
| 51 | Not used |
| 52 | Stop lamp relay |
| 53 | Trailer tow left turn / stop lamp relay |
| 54 | Not used |
| 55 | Wiper logic relay |
| 56 | 15 A - Transmission control module (TCM) (2.0L engine) |
| 57 | 20 A - Left-hand High-Intensity Discharge (HID) headlamp |
| 58 | 10 A - Alternator sensor |
| 59 | 10 A - Brake pedal position switch |
| 60 | 15 A - Stop lamps |
| 61 | 10 A - Power fold rear seat switch |
| 62 | 10 A - A/C clutch switch |
| 63 | 15 A - Trailer tow turn / stop lamp relays |
| 64 | 20 A - Rear window wiper motor |
| 65 | 15 A - Fuel pump motor |
| 66 | Powertrain control module (PCM) relay |
| 67 | 20 A - Vehicle power 2 (VPWR2) |
| 68 | 15 A - Vehicle power 4 (VPWR4) |
| 69 | 15 A - Vehicle power 1 (VPWR1) (3.5L / 3.7L engines) 20 A - Vehicle power 1 (VPWR1) (2.0L engine) |
| 70 | 10 A - A/C relay, Vehicle power 3 (VPWR3), All-Wheel Drive (AWD) module (3.5L / 3.7L engines), Active grille shutter (2.0L engine) |
| 71 | Not used |
| 72 | Not used |
| 73 | Not used |
| 74 | Not used |
| 75 | A/C clutch switch backlighting (3.5L / 3.7L engines) |
| 76 | Not used |
| 77 | Trailer tow park lamp relay |
| 78 | 20 A - Right-hand High-Intensity Discharge (HID) headlamp |
| 79 | 5 A - Adaptive cruise control (ACC) module |
| 80 | Not used |
| 81 | Not used |
| 82 | 15 A - Rear window washer pump |
| 83 | Not used |
| 84 | 20 A - Trailer tow park lamps |
| 85 | Not used |
| 86 | 7.5 A - Powertrain control module (PCM) keep-alive power (3.5L / 3.7L engines) |
| 87 | 5 A - Starter relay power |
| 88 | Run / start relay |
| 89 | Not used |
| 90 | 5 A - Headlamp leveling actuators (China only) 10 A - Powertrain control module (PCM) relay, Transmission control module (TCM) (2.0L engine) |
| 91 | 10 A - Adaptive cruise control (ACC) module (3.5L / 3.7L engines) |
| 5 A - Automatic transmission fluid heater (2.0L engine) | |
| 92 | 10 A - Anti-lock brake system (ABS) module |
| 93 | 5 A - Blower motor relay / Heated rear window relay coil feed |
| 94 | 30 A - Passenger compartment fuse panel run / start feed |
| 95 | Not used |
| 96 | Evaporative emission (EVAP) canister purge diode (2.0L engine) |
| 97 | Automatic transmission fluid heater diode (2.0L engine) |
| 98 | A/C clutch relay |
| Fuse No. 27 (20 A) powers the front cigarette lighter / power point on the Ford Edge. High-current main power fuses (fusible links) are also mounted directly to the positive battery terminal. |
|
Passenger Compartment Fuse Panel
The passenger compartment fuse box is located below the instrument panel on the driver side.
| Diagram | |
|---|---|
|
|
| No. | Function |
| 1 | 30 A - Driver side front one-touch power window |
| 2 | 15 A - Not used (spare) |
| 3 | 30 A - Not used (spare) |
| 4 | 10 A - Demand lamps relay |
| 5 | 20 A - Not used (spare) |
| 6 | 5 A - Radio Frequency (RF) module |
| 7 | 7.5 A - Power mirror switch, Memory seat module, Driver seat power switch |
| 8 | 10 A - Not used (spare) |
| 9 | 10 A - Power liftgate module |
| 10 | 10 A - Accessory delayed power relay feed |
| 11 | 10 A - Instrument cluster, Overhead display unit |
| 12 | 15 A - Interior lighting, Puddle lamps, Ambient lighting |
| 13 | 15 A - Right turn signals |
| 14 | 15 A - Left turn signals |
| 15 | 15 A - Backup lamps, High-mounted stop lamp, Brake lamps |
| 16 | 10 A - Low-beam headlamp (right) |
| 17 | 10 A - Low-beam headlamp (left) |
| 18 | 10 A - Keypad backlighting, Brake-shift interlock, Push-button start switch LED, Passive Anti-Theft System (PATS), PCM wake-up feed, Second-row power seat switch |
| 19 | 20 A - Premium audio amplifier (Sony) |
| 20 | 20 A - Power door lock / unlock relay (vehicles without Intelligent Access) |
| 21 | 10 A - Not used (spare) |
| 22 | 20 A - Horn relay |
| 23 | 15 A - Steering wheel control module, Intelligent Access (IA) module, Headlamp switch |
| 24 | 15 A - On-Board Diagnostics (OBD-II) connector |
| 25 | 15 A - Power liftgate latch release mechanism |
| 26 | 5 A - Global Positioning System (GPS) module |
| 27 | 20 A - Intelligent Access (IA) keyless entry unit |
| 28 | 15 A - Ignition switch (without keyless start), Transponder immobilizer, Push-button start switch (with Intelligent Access) |
| 29 | 20 A - Audio unit, Multifunction display, Electronic finish panel, SYNC module |
| 30 | 15 A - Front park lamps, Side marker lamps |
| 31 | 5 A - Not used (spare) |
| 32 | 15 A - Lock switch backlighting, Moonroof module, Driver power window switch, Auto-dimming interior rearview mirror / compass |
| 33 | 10 A - Not used (spare) |
| 34 | 10 A - Reverse Sensing System (RSS), Rearview camera, Blind Spot Information System (BLIS) |
| 35 | 5 A - Overhead console display, Headlamp leveling module |
| 36 | 10 A - Not used (spare) |
| 37 | 10 A - Climate control system module (3.5L / 3.7L engines) |
| 38 | 10 A - Not used (spare) |
| 39 | 15 A - High-beam headlamps |
| 40 | 10 A - Rear park lamps, License plate lamps |
| 41 | 7.5 A - Occupant classification sensor (OCS), Supplemental Restraint System (SRS) airbag / seatbelt control module |
| 42 | 5 A - Hill Start Assist switch (2.0L engine) |
| 43 | 10 A - Not used (spare) |
| 44 | 10 A - Not used (spare) |
| 45 | 5 A - Not used (spare) |
| 46 | 10 A - Climate control system module |
| 47 | 15 A - Exterior mirrors with integrated turn signals |
| 48 | 30 A - Power window circuit breaker |
| 49 | Delayed Accessory Power Relay |
