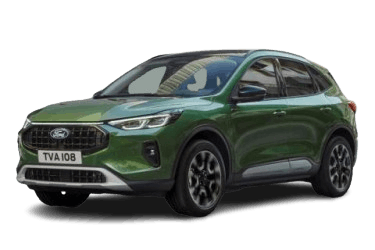

The fourth-generation Escape was introduced for 2019. It is again identical in design to the Kuga offered in Europe and, like the fourth-generation Focus, is based on the C2 platform. In this article, we will take a detailed look at fuse diagrams for the Ford Kuga III and Escape IV (body code CX482) 2019, 2020, 2021, 2022, 2023, 2024 model years.
Here you will find the location and photos of distribution boxes. The fuses responsible for the “Cigarette lighter” and “Fuel Pump” are highlighted in bold.
In the engine compartment
The fuse box is located near the battery.
Access example.
General view.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Not engaged | - |
| 2 | Not engaged | - |
| 3 | Not engaged | - |
| 4 | Auxiliary heater (gasoline). | 60A |
| 5 | Auxiliary heater (gasoline). | 40A |
| 6 | Auxiliary heater (gasoline). | 40A |
| 7 | Not engaged | - |
| 8 | Not engaged | - |
| 9 | Not engaged | - |
| 10 | Starter. | 30A |
| 11 | Transmission control unit. | 15A |
| 12 | Transmission control unit. | 15A |
| 13 | Transmission control unit. | 15A |
| 14 | Transmission control unit. | 15A |
| 15 | Not engaged | - |
| 16 | Not engaged | - |
| 17 | Not engaged | - |
| 18 | Transmission control module. | 10A |
| 19 | Anti-lock braking system module. | 10A |
| 20 | Not engaged | - |
| 21 | Adaptive cruise control. | 5A |
| 22 | Electronic battery management module (hybrid). | 5A |
| 23 | Charging port light ring (hybrid). | 5A |
| 24 | Amplifier. | 20A |
| 25 | Not engaged | - |
| 26 | Not engaged | - |
| 27 | Not engaged | - |
| 28 | Brake switch. | 10A |
| 29 | Transmission control module (hybrid). | 5A |
| 30 | Transmission oil pump (hybrid). Electronic stability control (gasoline). | 10A |
| 31 | Electronic power steering. | 5A |
| 32 | Body control module. | 30A |
| 33 | Front parking assistant camera. Rearview camera. Blind spot awareness system. Power shift actuator (2019-2020). Adaptive cruise control (2021-2022). | 10A |
| 34 | Headlight adjustments. | 10A |
| 35 | Heated steering wheel. | 15A |
| 36 | Powertrain control module (hybrid). | 10A |
| 37 | Siren. | 20A |
| 38 | Fan motor. | 40A |
| 39 | Not engaged | - |
| 40 | Heated parking wipers. | 15A |
| 41 | Power amplifier. | 20A |
| 42 | Electric driver's seat. | 30A |
| 43 | Electric water pump (hybrid). | 50A |
| 44 | Trailer towing module. | 40A |
| 45 | Electric passenger seat. | 30A |
| 46 | 2020: Transmission oil pump. | 20A |
| 47 | Heated seats. | 20A |
| 48 | Antilock brake system control valves. | 40A |
| 49 | Anti-lock brake system control pump. | 60A |
| 50 | Cooling fan. | 60A |
| 51 | Sunroof. | 30A |
| 52 | DC-DC converter (hybrid). | 5A |
| 53 | Battery management module (hybrid). | 10A |
| 54 | Not engaged | - |
| 55 | Not engaged | - |
| 56 | Not engaged | - |
| 57 | Data connector. | 10A |
| 58 | Auxiliary power distribution module (hybrid). | 40A |
| 59 | Body control module. | 40A |
| 60 | USB smart charger. | 5A |
| 61 | Rear power outlet. | 20A |
| 62 | Not engaged | - |
| 63 | Not engaged | - |
| 64 | Electric lift gate drive. | 30A |
| 65 | Not engaged | - |
| 66 | Not engaged | - |
| 67 | Not engaged | - |
| 68 | Mass air flow and intake air temperature sensor (gasoline). | 5A |
| 69 | Fuel injectors. | 15A |
| 70 | Power outlet in rear console. | 20A |
| 71 | Cigarette lighter socket in the multimedia zone. | 20A |
| 72 | Rear windshield wiper. | 20A |
| 73 | Not engaged | - |
| 74 | Windshield wiper motor. | 30A |
| 75 | Heated exterior mirrors. | 10A |
| 76 | Heated illumination. | 30A |
| 77 | Not engaged | - |
| 78 | Dutch air conditioning. | 10A |
| 79 | Headlight washer. | 10A |
| 80 | Fuel pump (Ford Kuga and Escape gasoline pump fuse) | 20A |
| 81 | Rear window washer pump. | 10A |
| 82 | Power inverter. | 40A |
| 83 | Not engaged | - |
| 84 | Transmission control module. | 40A |
| 85 | Rain sensor. | 5A |
| 86 | Not engaged | - |
| 87 | Not engaged | - |
| 88 | Not engaged | - |
The power fuses are also located under this block.
In the passenger compartment
The fuse box is located behind a protective cover under the instrument panel.
Access example.
| Diagram | ||
|---|---|---|
|
||
| No. | Description | Amps |
| 1 | Not engaged | - |
| 2 | Not engaged | - |
| 3 | Not engaged | - |
| 4 | Ignition lock. | 10A |
| 5 | Locking. Unlocking. | 20A |
| 6 | Sunroof. DC converter. | 10A |
| 7 | Passenger door module. | 30A |
| 8 | Parking assistant control module. | 5A |
| 9 | Electrochromatic mirror. A Image processing module. | 5A |
| 10 | Extended power supply module. | 10A |
| 11 | Electric liftgate actuator. Hands-free liftgate activation module. Telematics control unit module. | 5A |
| 12 | Projection display module. Keyless keypad switch. | 5A |
| 13 | Driver's door lock. | 15A |
| 14 | Driver's door module. | 30A |
| 15 | Extended power supply module. | 15A |
| 16 | Not engaged | 15A |
| 17 | SYNC. Transceiver module. Integrated control panel. | 15A |
| 18 | Wireless accessory charging module. | 7,5A |
| 19 | Headlight switch module. | 7,5A |
| 20 | Not engaged | 10A |
| 21 | Climate control. Electronic shifter module. | 7,5A |
| 22 | Instrument panel. Gateway module. Steering column control module. | 7,5A |
| 23 | Audio module. | 20A |
| 24 | Not engaged | 20A |
| 25 | Power windows. Exterior mirrors. | 30A |
