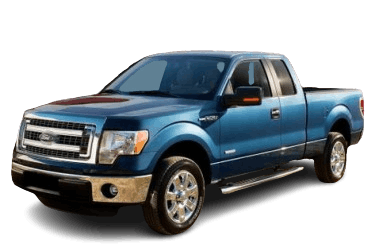

The Ford F-Series (encompassing the F-150, F-250, F-350, F-450, and F-550) is a lineup of full-size pickup trucks that has been in production across 13 generations since 1948. Traditionally, the numerical designation indicates the vehicle's payload capacity class. Since 1999, all models designated F-250 and above have been consolidated into the separate Ford Super Duty series, effectively categorizing the F-Series into light-duty (F-150) and heavy-duty (Super Duty) trucks. This guide details the locations of the fuse and relay blocks for the 2009, 2010, 2011, 2012, 2013, and 2014 Ford F-150 (P415) model years.
Passenger Compartment Fuse Panel
The passenger compartment fuse panel is located behind the lower right-hand side of the instrument panel. To remove the trim panel and access the fuse block, pull the panel toward you, swing it outward, and detach it. To reinstall the panel, align the retaining tabs with the corresponding grooves, then push it firmly until it clicks securely into place.
To remove the fuse block cover, press the release tabs on both sides and pull the cover outward. To reinstall the cover, position the top edge over the fuse panel, then press the lower section until it audibly clicks into place. Gently pull on the cover to verify it is seated correctly.
| Diagram | ||
|---|---|---|
|
||
| Fuse No. | Description | Rating (A) |
| 1 | Driver-side front window | 30A |
| 2 | SYNC® | 15A |
| 3 | Passenger-side front window | 30A |
| 4 | Interior lamps | 10A |
| 5 | Memory module | 20A |
| 6 | Not used (Spare) | 5A |
| 7 | Power mirror switch, memory seat module | 7.5A |
| 8 | Not used (Spare) | 10A |
| 9 | Radio display, GPS module, navigation display | 10A |
| 10 | Run/accessory relay | 10A |
| 11 | Instrument cluster | 10A |
| 12 | Interior lighting, puddle lamps, switch backlighting, cargo lamp | 15A |
| 13 | Right turn signals / stop lamps | 15A |
| 14 | Left turn signals / stop lamps | 15A |
| 15 | Reverse lamps, high-mounted stop lamp | 15A |
| 16 | Right low-beam headlamp | 10A |
| 17 | Left low-beam headlamp | 10A |
| 18 | Brake-shift interlock, keypad illumination, PCM wake-up, PATS | 10A |
| 19 | Audio amplifier | 20A |
| 20 | Power door locks | 20A |
| 21 | Ambient lighting | 10A |
| 22 | Horn | 20A |
| 23 | Steering wheel control module | 15A |
| 24 | Data link connector (DLC), steering wheel control module | 15A |
| 25 | Not used (Spare) | 15A |
| 26 | Radio frequency module | 5A |
| 27 | Not used (Spare) | 20A |
| 28 | Ignition switch | 15A |
| 29 | Radio / navigation | 20A |
| 30 | Front parking lamps | 15A |
| 31 | Brake On/Off (BOO) switch – instrument panel, BOO – engine | 5A |
| 32 | Delayed accessory – moonroof, power windows, power locks, automatic-dimming mirror / compass | 15A |
| 33 | Heated seats | 10A |
| 34 | Reverse Sensing System, 4x4 switch, rear video, off-road indicator (SVT Raptor) | 10A |
| 35 | Hill descent switch (SVT Raptor) | 5A |
| 36 | Restraint control module, occupant classification system module | 10A |
| 37 | Trailer brake controller | 10A |
| 38 | Delayed accessory – 110V power point, radio (AM/FM) | 10A |
| 39 | High-beam headlamps | 15A |
| 40 | Rear parking lamps | 10A |
| 41 | Passenger airbag deactivation indicator, upfitter switch (SVT Raptor) | 7.5A |
| 42 | Overdrive cancel switch | 5A |
| 43 | Not used (Spare) | 10A |
| 44 | Not used (Spare) | 10A |
| 45 | Not used (Spare) | 5A |
| 46 | Climate control module | 10A |
| 47 | Fog lamps, exterior mirror turn signals | 15A |
| 48 | Circuit breaker – power rear windows, power sliding rear window | 30A |
| 49 | Delayed accessory relay | - |
Engine Compartment
Power Distribution Box
Located in the center of the engine compartment, beneath the protective cover.
General layout overview.
| Diagram | ||
|---|---|---|
|
||
| Fuse No. | Protected Circuits | Amp Rating |
| 1 | Powertrain Control Module (PCM) relay (3.7L, 5.0L, and 6.2L engines) | |
| 2 | Starter relay | — |
| 3 | Blower motor relay | — |
| 4 | Rear window defroster relay | — |
| 5 | Electric fan relay (high speed) | — |
| 6 | Trailer Tow (TT) parking lamp relay | — |
| 7 | Run/start relay | — |
| 8 | Fuel pump relay | — |
| 9 | Trailer Tow (TT) battery charge relay | — |
| 10 | PCM relay (3.5L engine) | — |
| 11 | Power running board motors | 30** |
| 12 | Electric fan | 40** |
| Electric fan (6.2L with Max Trailer Tow Package, SVT Raptor) | 50** | |
| 13 | Starter relay power | 30** |
| 14 | Passenger power seat | 30** |
| 15 | Electric fan | 40** |
| Electric fan (6.2L with Max Trailer Tow Package, SVT Raptor) | 50** | |
| 16 | Not used | — |
| 17 | Trailer brake controller | 30** |
| 18 | Upfitter 1 (SVT Raptor) | 30** |
| 19 | Upfitter 2 (SVT Raptor) | 30** |
| 20 | 4x4 module (electronic shift) | 20** |
| 21 | Trailer Tow (TT) battery charge relay power | 30** |
| 22 | Cigar lighter | 20** |
| 23 | A/C clutch relay | — |
| 24 | Not used | — |
| 25 | Vacuum pump relay (3.5L engine) | — |
| 26 | PCM keep-alive power, PCM relay coil, EVAP canister vent solenoid (3.7L, 5.0L, and 6.2L engines) | 10* |
| 27 | Fuel pump relay power | 20* |
| 28 | Upfitter 4 (SVT Raptor) | 10* |
| 29 | 4x4 Integrated Wheel End (IWE) solenoid | 10* |
| 30 | A/C clutch | 10* |
| 31 | Run/start relay power | 15* |
| 32 | Rear window defroster relay power, heated mirror relay power | 40** |
| 33 | 110V AC power point | 40** |
| 34 | PCM relay power (3.7L, 5.0L, and 6.2L engines) | 40** |
| PCM relay power (3.5L engine) | 50** | |
| 35 | Not used | — |
| 36 | Roll Stability Control (RSC) / Anti-lock Brake System (ABS) module | 30** |
| 37 | Trailer Tow (TT) left stop/turn relay | — |
| 38 | Trailer Tow (TT) right stop/turn relay | — |
| 39 | Trailer Tow (TT) back-up lamps relay | — |
| 40 | Electric fan relay | — |
| 41 | Front camera washer relay (SVT Raptor) | 15* |
| 42 | Run/start coil | 5* |
| 43 | Trailer Tow (TT) back-up lamp relay power | 15* |
| 44 | Upfitter 3 (SVT Raptor) | 15* |
| 45 | Alternator sensor (non-6.2L engines) | 10* |
| 46 | Brake On/Off (BOO) switch | 10* |
| 47 | RSC / ABS module | 60** |
| 48 | Moonroof | 20** |
| 49 | Windshield wipers | 30** |
| 50 | Not used | — |
| 51 | Blower motor relay power | 40** |
| 52 | Run/start – Electronic Power Assist Steering (EPAS), blower relay coil | 5* |
| 53 | Run/start – PCM | 5* |
| 54 | Run/start – 4x4 module, back-up lamps, RSC / ABS, Trailer Tow (TT) battery charge relay coil, rear window defroster relay coil, front camera washer relay coil (SVT Raptor) | 5* |
| 55 | Not used | — |
| 56 | Heated mirrors | 15* |
| 57 | Not used | — |
| 58 | Not used | — |
| 59 | Not used | — |
| 60 | Not used | — |
| 61 | Not used | — |
| 62 | Wiper motor relay | — |
| 63 | Electric fan | 25** |
| 64 | Vacuum pump relay power (3.5L engine) | 40** |
| 65 | Auxiliary power point (instrument panel) | 20** |
| 66 | Auxiliary power point (center console) | 20** |
| 67 | Trailer Tow (TT) parking lamps relay power | 20** |
| 68 | 4x4 module | 25** |
| 69 | Passenger heated/cooled seats | 30** |
| 70 | Not used | — |
| 71 | Heated rear seats | 20** |
| 72 | Auxiliary power point (rear) | 20** |
| 73 | Trailer Tow (TT) stop/turn lamps relay power | 20** |
| 74 | Driver power seat / memory module | 30** |
| 75 | PCM – voltage power 1 (3.7L, 5.0L, and 6.2L engines) | 15* |
| PCM – voltage power 1 (3.5L engine) | 25* | |
| 76 | PCM – voltage power 2 (general powertrain components, mass air flow / intake air temp sensor) (3.7L, 5.0L, and 6.2L engines) | 20* |
| PCM – voltage power 2 (general powertrain components, EVAP canister vent solenoid) (3.5L engine) | 20* | |
| 77 | PCM – voltage power 3 (emission-related powertrain components, electric fan relays coil) | 10* |
| 78 | PCM – voltage power 4 (ignition coils) (3.5L, 3.7L, and 5.0L engines) | 15* |
| PCM – voltage power 4 (ignition coils) (6.2L engine) | 20* | |
| 79 | Rain sensor | 5* |
| 80 | Not used | — |
| 81 | Not used | — |
| 82 | Not used | — |
| 83 | Not used | — |
| 84 | Not used | — |
| 85 | Electric fan relay (low speed) | — |
| * Mini fuse ** Cartridge fuse |
||
Auxiliary Relay Box
Applicable exclusively to SVT Raptor models. Located in the left rear corner of the engine compartment.
| Diagram | |
|---|---|
|
|
| Relay No. | Description |
| 1 | Upfitter 1 relay |
| 2 | Upfitter 2 relay |
| 3 | Upfitter 3 relay |
| 4 | Upfitter 4 relay |
| 5 | Front camera washer relay |
| 6 | Not used |
