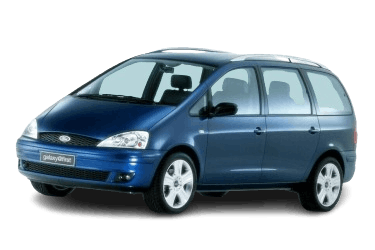

The first-generation Ford Galaxy MPV was produced from 1995 through 2006, receiving a mid-cycle facelift during its production run. This manual details the locations of all electronic control units (ECUs) typical of Mk1 Ford Galaxy models, along with comprehensive fuse and relay box diagrams, photos, and circuit assignments. Fuses responsible for the cigarette lighter sockets are highlighted in bold.
Actual fuse box configurations and component assignments may vary depending on the model year (pre-facelift vs. facelift) and vehicle equipment level.
General Component Locations
Location of electronic control modules and major electrical components.
|
|
| No. | Description |
| 1 | Air conditioning control module (Automatic Temperature Control - ATC) – behind instrument panel |
| 2 | Front blower motor control module (ATC) |
| 3 | Rear blower motor control module (ATC) |
| 4 | Anti-theft alarm control module – integrated into multi-function control module |
| 5 | Anti-theft alarm horn – intake air resonator area |
| 6 | Auxiliary battery relay – under front right seat |
| 7 | Auxiliary heater control module – roof console |
| 8 | Primary battery |
| 9 | Auxiliary battery – under front right seat (if equipped) |
| 10 | Cruise control module |
| 11 | Cruise control actuator motor |
| 12 | Data Link Connector (DLC / Diagnostic Port) |
| 13 | Front left power window control module – inside door |
| 14 | Rear left power window control module – inside door |
| 15 | Front right power window control module – inside door |
| 16 | Rear right power window control module – inside door |
| 17 | Engine cooling fan control module |
| 18 | Instrument panel fuse/relay box 1 – integrated into multi-function control module |
| 19 | Instrument panel fuse/relay box 2 |
| 20 | Instrument panel fuse/relay box 3 |
| 21 | Front blower motor resistor (Manual Climate Control) |
| 22 | Rear blower motor resistor (Manual Climate Control) |
| 23 | Horns – behind front bumper |
| 24 | Immobilizer control module – behind instrument cluster |
| 25 | Immobilizer transponder antenna ring – around ignition switch |
| 26 | Turn signal relay – integrated into multi-function control module |
| 27 | Inertia fuel shut-off (IFS) switch – under front left seat |
| 28 | Multi-function control module – in instrument panel fuse/relay box 1 (Functions: rear window wiper, windshield wipers, turn signals, hazard lights, power windows, interior lighting off-delay, heated windshield, heated rear window, central locking / remote keyless entry, anti-theft system, bulb monitoring system, low/high beam headlights) |
| 29 | Park Assist control module – right side of luggage compartment |
| 30 | Front fog lamp relay (Pos. 1) – left side of luggage compartment |
| 31 | Front fog lamp relay (Pos. 2) – right side of luggage compartment |
| 32 | Auxiliary fuse F76 (15 A), trailer connector – under front right seat |
| 33 | Auxiliary fuse F77 (25 A / 30 A), charging system, trailer connector, auxiliary heater – under front right seat |
| 34 | Auxiliary fuse F78 (15 A), spare – under front right seat |
| 35 | Driver seat heater control module – under front left seat |
| 36 | Passenger seat heater control module – under front right seat |
| 37 | Driver side-impact sensor – under front left seat |
| 38 | Passenger side-impact sensor – under front right seat |
| 39 | SRS airbag control module |
| 40 | Trailer electrical control module – left side of luggage compartment |
| 41 | Transmission Control Module (TCM) |
| 42 | Vehicle Speed Sensor (VSS) – transmission |
Passenger Compartment Fuse Box
Located under the dashboard behind a protective cover. A fuse assignment diagram is printed on the reverse side of the cover.
Main Fuse Box
Type 1
General view.
| Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | Auxiliary heater relay |
| 2 | Rear window wiper intermittent relay |
| 3 | Engine Control Module (ECM) relay |
| 4 | Main ignition circuit relay |
| 5 | — |
| 6 | Turn signal / hazard warning relay |
| 7 | Headlight washer pump relay |
| 8 | Windshield wiper/washer intermittent relay |
| 9 | Left side marker warning chime |
| 10 | Rear fog lamp busbar |
| 11 | Horn relay |
| 12 | Fuel pump relay (gasoline engines) |
| 13 | High / low beam relay |
| 14 | — |
| 15 | — |
| F1 | (7.5 A) RH low beam headlight, LH headlight leveling actuator |
| F2 | (7.5 A) LH low beam headlight, RH headlight leveling actuator |
| F3 | (3 A) License plate lamps |
| F4 | (20 A) Rear window wiper, rear heater blower motor, daytime running lights (DRL) |
| F5 | (10 A) Windshield wiper motor, heated washer nozzles |
| F6 | (25 A) Blower motor, A/C control module |
| F7 | Front/rear right marker lamps, left side marker light warning chime |
| F8 | (5 A) LH tail / tailgate lamps, headlight-on warning chime |
| F9 | (20 A) Heated rear window (defogger) |
| F10 | (15 A) Master light switch, front fog lamps, rear fog lamps |
| F11 | (7.5 A) LH high beam headlight, high beam indicator light |
| F12 | (7.5 A) RH high beam headlight |
| F13 | (10 A) Horns |
| F14 | (15 A) Reversing (backup) lamps |
| F15 | (10 A) ECM, crankcase ventilation element heater |
| F16 | (3 A) Digital clock, front interior lamp, instrument cluster |
| F17 | (10 A) Turn signals |
| F18 | (10 A) Inertia fuel shut-off switch, Engine Control Module (ECM – 2.0L) |
| F19 | (30 A) Cooling fan motor, A/C compressor clutch relay |
| F20 | (10 A) Brake lamps |
| F21 | (10 A / 15 A) Interior lamps, clock, tail lamps, cigarette lighter |
| F22 | (10 A) Diagnostic system (DLC), air conditioning system, cigarette lighter |
| F23 | (10 A) Cooling fan motor, A/C compressor clutch relay |
| F24 | (30 A) Windshield wiper motor |
| F25 | (60 A) Glow plugs |
| F26 | (10 A) Oxygen sensor (heated) |
| F27 | (50 A) Heated windshield relay |
| F28 | (30 A) Traction Control System (TCS) / Anti-lock Braking System (ABS) |
| F29 | (30 A) Traction Control System (TCS) / Anti-lock Braking System (ABS) |
| F30 | (10 A) Central locking, door puddle/marker lamps |
| F31 | (10 A) Anti-theft alarm horn |
| F32 | (10 A) Anti-theft alarm system |
| F33 | — |
| F34 | (25 A) Cooling fan motor relay |
| F35 | (20 A) Trailer socket |
| F36 | — |
| F37 | (30 A) Power windows |
| F38 | (20 A) Power seat controls |
| F39 | (25 A) Cooling fan motor relay |
| Fuses F21 and F22 protect the cigarette lighter circuits. | |
Type 2
| Diagram & Layout | |
|---|---|
|
|
| No. | Protected Circuits / Components |
| F1 | (20 A) Heated seats |
| F2 | (10 A) Instrument panel, instrument cluster backlighting, power windows, power mirrors |
| F3 | (5 A) ABS, interior lamps, instrument cluster backlighting, cigarette lighter, clock, cruise control, HVAC system, auxiliary heater, A/C system, navigation system, sunroof |
| F4 | (10 A) Engine management system, anti-theft system |
| F5 | (15 A) Park Assist, reversing lamps, automatic transmission control module, 4WD system, navigation system, trailer socket |
| F6 | (10 A) Horn |
| F7 | (20 A / 25 A) Cigarette lighter, clock |
| F8 | (30 A) Charging system, windshield wiper/washer, auxiliary heater, trailer socket |
| F9 | (30 A) Anti-lock Braking System (ABS) |
| F10 | (30 A) Anti-lock Braking System (ABS) |
| F11 | (20 A) Headlight washers |
| F12 | (15 A) Cigarette lighter, clock, windshield wiper/washer, sunroof |
| F13 | (3 A) Engine management system |
| F14 | (10 A / 20 A / 25 A) Engine management system, cruise control, heating/ventilation, A/C system |
| F15 | (30 A) Engine management system, A/C system |
| F16 | (10 A / 30 A) Engine management system, A/C system |
| F17 | (10 A / 30 A) Engine management system, automatic transmission control module, heating/ventilation |
| F18 | (5 A) Engine management system, A/C system |
| F19 | (5 A) Diagnostic port (DLC), anti-theft system, instrument cluster, A/C system, audio system, CD changer, telephone, navigation system, central locking, power windows |
| F20 | (10 A) ABS, automatic transmission control module, engine management system, brake lamps, instrument cluster, cruise control, navigation system, trailer socket |
| F21 | (25 A / 30 A) Auxiliary heater, A/C system |
| F22 | (25 A / 30 A) Auxiliary heater, A/C system |
| F23 | (10 A) Audio system, CD changer, navigation system |
| F24 | (25 A) Heating/ventilation system |
| F25 | (3 A) Instrument cluster, audio system, CD changer, navigation system, telephone |
| F26 | (30 A) Automatic transmission control module, starter relay, immobilizer, engine management system, instrument cluster |
| F27 | (25 A) Engine management system, heated windshield, auxiliary heater |
| F28 | (10 A) ABS, A/C system, engine management system, windshield wiper/washer, headlight washers |
| F29 | (5 A) Windshield wiper/washer, rear window defogger, heating/ventilation, A/C system, auxiliary heater |
| F30 | (3 A) Tail lamps, license plate lamps, trailer socket |
| F31 | (15 A) Front fog lamps, trailer socket |
| F32 | (3 A / 10 A) Engine management system, cruise control, A/C system |
| F33 | (25 A / 30 A) Charging system, windshield wiper/washer, auxiliary heater, trailer socket |
| F34 | (25 A) Heating/ventilation system, A/C system, auxiliary heater |
| F51 | (20 A) Heated rear window (defogger) |
| F52 | (20 A) Turn signals, hazard warning lights, trailer socket, anti-theft system |
| F53 | (10 A) Door entry lamps, interior lamps |
| F54 | (10 A) Anti-theft system |
| F55 | (5 A) Door entry lamps, instrument cluster, anti-theft system, central locking, power windows |
| F56 | (5 A) RH side / tail lamps, trailer socket, daytime running lights (DRL), instrument cluster |
| F57 | (5 A) LH side / tail lamps, trailer socket, daytime running lights (DRL), instrument cluster |
| F58 | (10 A) Headlight leveling system, daytime running lights (DRL), LH / RH headlights |
| F59 | (10 A) LH low beam headlight, instrument cluster, LH headlight leveling actuator, daytime running lights (DRL) |
| F60 | (10 A) RH low beam headlight, instrument cluster, RH headlight leveling actuator, daytime running lights (DRL) |
| F61 | (10 A) LH high beam headlight, instrument cluster |
| F62 | (10 A) RH high beam headlight |
| In this configuration, fuse F7 (20 A) powers the cigarette lighter socket. | |
Auxiliary Relay Box
Located behind the main fuse panel.
| Diagrams | |
|---|---|
| No. | Description |
| Type 1 | |
|
|
| 1 | Power folding mirror control unit |
| 10a | Horn relay |
| 10b | Auxiliary heater relay |
| 11a | Rear left power vent window relay |
| 11b | Rear right power vent window relay |
| 12a | Wide-Open Throttle (WOT) cutoff relay – automatic transmission |
| 12b | Wide-Open Throttle (WOT) cutoff relay |
| 13a | Front blower motor relay |
| 13b | Engine cooling fan motor relay |
| 17a | Blower motor cutoff relay 1 |
| 17b | Blower motor cutoff relay 2 |
| 18a | Blower motor cutoff relay 3 |
| 18b | — |
| 2 | Power folding mirror control unit |
| 3 | Fuel lift pump relay (Diesel) |
| 4 | Engine cooling fan motor relay (2.0L / 2.3L) |
| 5 | A/C compressor clutch relay (Diesel) |
| 6 | Transmission control relay |
| 7 | Multi-function steering wheel module |
| 8 | Multi-function steering wheel module |
| 9 | Daytime Running Lights (DRL) relay (if equipped) |
| 14 | — |
| 15 | — |
| 16 | Rear power vent window relay 2 |
| 19 | Headlight washer pump relay |
| Type 2 | |
|
|
| 20 | Fuel pump relay (2.8L) / Engine cooling fan motor relay |
| 21 | Engine management relay (2.0L / 2.3L) |
| 22 | Secondary Air Injection (SAI) pump relay (2.8L) |
| 23 | Heated windshield relay |
| 24 | Fuel pump relay (2.0L / 2.3L) |
| 25 | Brake light relay |
| 26 | Auxiliary ignition circuit relay |
| 27 | Main ignition circuit relay |
| F70 | (30 A) Secondary air injection system (gasoline) |
| F73 | (50 A) Heated windshield |
| F74 | (50 A) Secondary air injection system (diesel) |
| F75 | (30 A) Power windows |
| Type 3 | |
|
|
| 18 | Auxiliary heater relay |
| 19 | Daytime running light (DRL) relay |
| 20 | Overrun clutch lockup relay |
| 21 | Rear power vent window relay |
| 22 | Heated windshield relay |
| 23 | Servotronic / 4WD control relay |
| 24 | Power window relay |
| 25 | Brake relay |
| 26 | Warning chime timer module |
Under-Hood Fuse Box (Engine Compartment)
Located on the left side of the engine compartment; contains high-current main fuse links.
| Diagrams | |
|---|---|
| Type 1 | |
|
|
| F100 | (30 A) Instrument panel fuse/relay box 1 (F55) |
| F101 | (30 A) Anti-lock Braking System (ABS) |
| F102 | (30 A) Anti-lock Braking System (ABS) |
| F103 | (60 A) Auxiliary heater, glow plugs |
| F104 | (40 A) Cooling fan motor 1 |
| F105 | (40 A) Cooling fan motor relay |
| F106 | (110 A) Instrument panel fuse/relay box 1 (F13 / F25 / F27), instrument panel fuse/relay box 3 (F75) |
| F107 | (150 A) Alternator |
| Type 2 | |
|
|
| 57 | 30 A Secondary air pump |
| 58 | 40 A Engine cooling fan |
| 59 | 30 A / 40 A Engine cooling fan |
| Relays | |
| 50 | Cooling fan relay (Speed 3) |
| 51 | Throttle valve relay |
| 52 | Cooling fan relay (Speed 2) |
| 53 | Deceleration relay |
| 54 | Cooling fan relay (Speed 1) or Coolant pump freewheeling diode |
| 55 | Automatic transmission relay |
| 56 | Secondary air pump relay |
