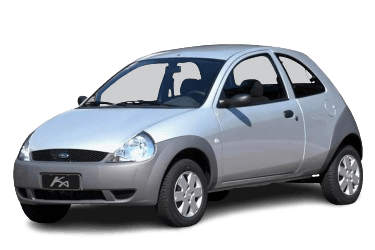

The Ford Ka compact city car has been produced across three generations since 1996 for global markets. First-generation production years: 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, and 2007. The second generation was manufactured from 2008 through 2016 (2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, and 2016). The third generation model has been sold in global automotive markets from 2017 to the present. This article detail fuse and relay box locations, circuit diagrams, and assignment descriptions for first- and second-generation Ford Ka models (chassis codes BE146 / B420), along with the general placement of electronic control units (ECUs). The cigarette lighter fuse is highlighted in bold.
Fuse and relay assignments may vary depending on the model year, equipment level, and regional specifications.
First-Generation (1997–2007)
Main Passenger Compartment Fuse Box
Located under the instrument panel to the left of the steering column, behind the access cover.
General view.
| Diagram | |
|---|---|
|
|
| № | Description |
| 1 | Cooling fan motor relay 1 (without A/C) |
| 2 | Windshield wiper intermittent relay |
| 3 | Interior lamp relay (with remote central locking) |
| 4 | Front fog lamp relay |
| 5 | Main ignition circuit relay |
| 6 | Heated rear window relay |
| 7 | Starter inhibitor switch relay |
| 8 | Headlamps-on warning chime/buzzer |
| 9 | Low beam headlamp relay |
| 10 | High beam headlamp relay |
| 11 | Engine Control Module (ECM) relay |
| 12 | Fuel pump relay |
| 13 | A/C compressor clutch relay |
| 14 | Anti-theft alarm system relay (LH) – with remote central locking |
| 15 | Anti-theft alarm system relay (RH) – with remote central locking |
| F1 | (20A) Heated rear window, central locking |
| F2 | (10A) Audio unit, clock, Data Link Connector (DLC), climate control system, instrument cluster backlighting, interior lamps |
| F3 | (30A) Anti-lock Braking System (ABS) |
| F4 | (3A) Engine management system |
| F5 | (15A) Cigarette lighter, instrument cluster |
| F6 | (10A) Instrument cluster backlighting, LH parking / side lamps |
| F7 | (10A) RH parking / side lamps |
| F8 | (10A) LH low beam headlamp |
| F9 | (10A) RH low beam headlamp |
| F10 | (10A) LH high beam headlamp, instrument cluster warning lamps |
| F11 | (10A) RH high beam headlamp |
| F12 | (30A) Climate control blower motor |
| F13 | (15A) Exterior lighting switch (headlamps / fog lamps), reverse lamps, brake lamps |
| F14 | (30A) Power windows |
| F15 | (20A) Exterior lighting switch (headlamps / fog lamps) |
| F16 | (15A / 20A) Anti-theft alarm system, heated windshield, windshield wiper/washer system |
| F17 | (10A / 15A) Engine management system, climate control system, instrument cluster, interior lamps |
| F18 | (10A) SRS control module |
| F19 | (10A / 25A) Engine management system, fuel pump |
| F20 | (15A) Engine management system, radiator cooling fan motor (without A/C) |
| F21 | (20A / 30A) Fog lamps (1.3L Siemens) / Radiator cooling fan motor without A/C (1.3L EEC-V) |
| F22 | (10A) Turn signal indicators, hazard flashers |
| F23 | (20A) Anti-theft alarm system, horn |
| F24 | (40A) Ignition switch |
| F25 | (30A) Anti-lock Braking System (ABS) |
| F26 | (3A) Alternator/Generator (from 07/2003) |
| F27 | (10A) Anti-theft alarm system, tailgate release relay |
| F28 | (10A) Power door mirrors |
| F29 | (10A) Rear fog lamps |
| F30 | (10A) Engine management system |
| F31 | - |
| F32 | (15A) Power sunroof |
| F33 | (15A) Anti-theft alarm system (from 07/2003) |
| F34 | (30A) Radiator cooling fan motor (without A/C) |
| F35 | (10A) Anti-theft alarm system, instrument cluster, power sunroof |
| F36 | (3A) Anti-lock Braking System (ABS) |
| Fuse F5 (15A) protects the cigarette lighter circuit in the Ford Ka. | |
Second-Generation (2008–2016) Component Locations
General Component Layout
| № | Designation |
| 1 | ABS control module |
| 2 | Blower motor resistor (manual climate control) – behind HVAC control panel |
| 3 | Automatic Climate Control (ATC) module |
| 4 | Antenna selection control module |
| 5 | Side impact sensor 1 (LH) |
| 6 | Side impact sensor 2 (RH) |
| 7 | Audio amplifier – behind RH rear quarter trim panel |
| 8 | 12V Battery |
| 9 | Data Link Connector (DLC / OBD-II port) |
| 10 | Engine Control Module (ECM) |
| 11 | Engine compartment fuse/relay box |
| 12 | Passenger compartment fuse/relay box |
| 13 | Glow plug control module (Diesel) |
| 14 | Horn |
| 15 | Immobilizer transceiver coil – adjacent to ignition switch |
| 16 | Instrument cluster control module |
| 17 | Body Control Module (BCM) – integrated into under-dash fuse box. Functions: power windows, exterior lamps, headlamp leveling, heated power mirrors, heated rear window, heated windshield, immobilizer, inertia fuel shut-off switch, interior lamps, park assist, rear window wiper/washer, remote central locking, windshield wiper/washer system. |
| 18 | Ambient air temperature sensor – integrated into door mirror |
| 19 | Park Assist Control Module – behind LH rear quarter trim panel |
| 20 | Electric Power Steering (EPS) control module – mounted on steering column |
| 21 | SRS / Airbag control module – under center console |
| 22 | Hands-Free / Telephone Control Module – behind LH rear quarter trim panel |
| 23 | Yaw rate / lateral acceleration sensor (with ESP) – adjacent to parking brake lever |
Passenger Compartment Fuse Box
Located under the left side of the instrument panel on the driver's side, behind the access cover.
| Diagram | |
|---|---|
|
|
| № | Description |
| F12 | (7.5A) RH low beam headlamp |
| F13 | (7.5A) |
| F31 | (5A) Engine compartment fuse/relay box switch feed |
| F32 | (7.5A) |
| F36 | (10A) |
| F37 | (5A) |
| F38 | (20A) Central locking system |
| F43 | (15A) Rear window wiper and washer |
| F47 | (20A) Driver power window |
| F48 | (20A) Passenger power window |
| F49 | (5A) |
| F50 | (7.5A) SRS / Airbag control module |
| F51 | (7.5A) |
| F53 | (5A) Instrument cluster |
Engine Compartment Fuse Box
Located under a protective cover adjacent to the battery.
| Diagram | |
|---|---|
|
|
| № | Description |
| 1 | High beam headlamp relay |
| 2 | Heated windshield relay |
| 3 | |
| 4 | |
| 5 | Horn relay |
| 6 | Front fog lamp relay |
| 7 | Fuel pump relay |
| 8 | Auxiliary power socket relay |
| 9 | Climate control blower motor relay |
| 10 | Engine Control Module (ECM) main relay |
| 11 | A/C compressor clutch relay |
| 12 | Heated rear window and power mirror heater relay |
| 13 | - |
| 14 | Heated front seat relay |
| F1 | (60A) Body Control Module (BCM) |
| F2 | (20A) Audio system |
| F3 | (20A) Ignition switch |
| F4 | (40A) Anti-lock Braking System (ABS) pump |
| F5 | (70A) Electric Power Steering (EPS) |
| F6 | (20A / 30A) Radiator cooling fan motor (Low speed) |
| F7 | (40A) Radiator cooling fan motor (High speed) |
| F8 | (30A) Climate control blower motor |
| F9 | - |
| F10 | (15A) Horn |
| F11 | (10A) Engine management system / ECM |
| F14 | (15A) High beam headlamps |
| F15 | (15A) Heated front seats |
| F16 | (7.5A) Engine Control Module (ECM) |
| F17 | (10A) Engine Control Module (ECM) |
| F18 | (7.5A) Engine Control Module (ECM) |
| F19 | (7.5A) A/C compressor clutch |
| F20 | (30A) |
| F21 | (15A) Fuel pump |
| F22 | (15A / 20A) Engine management system |
| F23 | (20A) Anti-lock Braking System (ABS) valves |
| F24 | (7.5A) |
| F30 | (15A) Front fog lamps |
| F81 | (50A) Glow plug control module (Diesel) |
| F82 | - |
| F83 | (50A) Heated windshield |
| F84 | - |
| F85 | (15A) Auxiliary power socket, cigarette lighter |
| F87 | (7.5A) |
