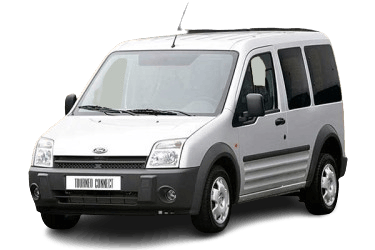

The first-generation Tourneo Connect was produced from 2002 to 2013. From 2013 to the present, the second generation of the model has been in production. In this guide, you will find a description of the first-generation Ford Tourneo Connect (C170 platform; chassis code V227) fuse and relay boxes, including their locations, circuit diagrams, and photographs. The fuse protecting the “cigarette lighter” circuit is highlighted in bold.
This first-generation Ford Tourneo Connect features two primary fuse and relay boxes: one located in the engine compartment behind the air filter housing, and the second in the passenger compartment. Fuse and relay assignments may vary from those illustrated depending on the vehicle's year of manufacture and market specification.
In the passenger compartment
The passenger compartment fuse box is located under the instrument panel on the driver's side, behind a protective trim cover.
Example photograph.
| Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | Starter motor relay |
| 2 | Rear window wiper relay |
| 3 | Interior illumination relay |
| 4 | Windshield wiper motor relay |
| 5 | Unused |
| 6 | Unused |
| 7 | Battery saver relay |
| 8 | Ignition main circuit relay 1 |
| 9 | Heated rear window relay |
| F30 | (10A) Headlamp switch |
| F31 | (15A) Audio system |
| F32 | Unused |
| F33 | (7.5A) Battery saver relay, interior illumination relay |
| F34 | (7.5A) Ignition main circuit relay 1, auxiliary heater control module |
| F35 | Unused |
| F36 | (7.5A) Supplemental Restraint System (SRS) control module |
| F37 | (7.5A) Headlamp switch, turn signal switch |
| F38 | (7.5A) Supplemental Restraint System (SRS) control module |
| F39 | Unused |
| F40 | (7.5A) Instrument cluster, audio system |
| F41 | Unused |
| F42 | (15A) Stop lamp switch |
| F43 | (20A) Rear window wiper relay, windshield wiper motor |
| F44 | (15A) Cigarette lighter |
| F45 | Unused |
| F46 | (15A) Trailer tow connector |
| F47 | (5A) Power exterior mirror switch |
| F48 | (7.5A) Instrument cluster, passive anti-theft system (PATS) transceiver, parking aid module, alarm/turn signal relay |
| F49 | (25A) Heated rear window |
| F50 | (7.5A) Power exterior mirrors (driver and passenger sides) |
| F51 | Unused |
| F52 | Unused |
| F53 | (10A) Reversing lamps, heated windshield washer nozzles |
| F54 | Unused |
| F55 | Unused |
| F56 | (20A) Windshield wiper motor relay, rear window wiper relay, windshield wiper motor, windshield wiper control switch |
| F57 | (7.5A) Right headlamp, fuel pump switch, trailer tow connector, right tail lamp assembly |
| F58 | (7.5A) Left headlamp, left tail lamp assembly |
| F59 | (7.5A) Auxiliary heater control module |
| F60 | Unused |
| F61 | (15A) Central locking/anti-theft control module, alarm/turn signal relay |
| F62 | (7.5A) License plate lamps |
| F63 | (20A) Central locking/anti-theft control module |
| Fuse F44 (15A) protects the cigarette lighter circuit in the Ford Tourneo Connect. | |
In the engine compartment
To access the fuses, release the retaining latch and side clamp, then remove the fuse box cover.
| Diagram | |
|---|---|
|
|
| No. | Description |
| 1 | Engine cooling fan motor relay 1 |
| 2 | Wide open throttle (WOT) relay |
| 3 | Daytime running lamps (DRL) relay |
| 4 | Glow plug relay |
| 5 | Headlamp high beam relay |
| 6 | Headlamp low beam relay |
| 7 | Heated windshield relay |
| 8 | Ignition main circuit relay 1 |
| 9 | Engine cooling fan motor relay 2 |
| 10 | Engine coolant heater relay 1 |
| 11 | Horn relay |
| 12 | Engine coolant heater relay 2 |
| 13 | Fuel pump relay |
| 14 | Engine control relay |
| 15 | Unused |
| 16 | Ignition main circuit relay 2 |
| F1 | (40A) Passenger compartment fuse box supply |
| F2 | (30A) Engine cooling fan motor resistor |
| F3 | (30A) Passenger compartment fuse box supply |
| F4 | (60A) Heated windshield relay |
| F5 | (50A / 40A) Engine cooling fan motor relay |
| F6 | (60A) Glow plug relay |
| F7 | (40A) Passenger compartment fuse box supply |
| F8 | (20A) Starter motor relay |
| F9 | (20A) Engine control relay |
| F10 | (10A) Alternator, Data Link Connector (DLC) |
| F11 | (20A) Auxiliary heater |
| F12 | (15A) Fuel pump relay |
| F13 | (30A) Anti-lock Braking System (ABS) control module |
| F14 | Unused |
| F15 | (10A) Headlamp high beam relay |
| F16 | (10A) Headlamp low beam relay |
| F17 | (10A) Headlamp low beam relay |
| F18 | (40A) Glow plug relay (diesel engines) |
| F19 | (10A) Headlamp switch |
| F20 | (10A) Instrument cluster, instrument cluster control module |
| F21 | (15A) Horn relay |
| F22 | (20A) Daytime running lamps (DRL) relay, headlamp low beam relay |
| F23 | (20A) Supplemental Restraint System (SRS) control module |
| F24 | Unused |
| F25 | (10A) Headlamp high beam relay, instrument cluster |
| F26 | (10A) Wide open throttle (WOT) relay |
| F27 | (10A) Water-in-fuel (WIF) sensor |
| F28 | (20A) Headlamp switch |
| F29 | (15A) Heated seats |
| F64 | (30A) HVAC blower motor |
| F65 | Unused |
