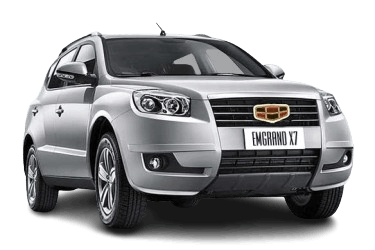

This article details the fuse box diagrams and relay assignments for the first-generation Geely Emgrand X7 (NL platform; chassis code NL-1 / GX7) model years 2011–2018.
Passenger compartment fuse IF22 controls the cigarette lighter circuit.
Passenger Compartment
The fuse box is located on the driver side of the instrument panel behind the plastic access cover.
Fuse box access location.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Protected Component / Circuit |
| IF01 | 20 | Power door locks |
| IF02 | 10 | Diagnostic Link Connector (OBD-II) |
| IF03 | 10 | Stop lamps |
| IF04 | 10 | Hazard warning / Anti-theft alarm |
| IF05 | 10 | Position / Side marker lamps |
| IF06 | 15 | Air conditioning system |
| IF11 | 10 | Rear fog lamps |
| IF12 | 30 | Power windows |
| IF13 | 20 | Power sunroof |
| IF14 | 15 | Audio system |
| IF16 | 30 | Heated rear window (defogger) |
| IF17 | 40 | HVAC blower motor |
| IF18 | 10 | Heated rear window control |
| IF20 | 10 | Ignition switch / Power mirrors |
| IF22 | 15 | Cigarette lighter |
| IF23 | 15 | Rear window wiper |
| IF25 | 10 | Instrument cluster |
| IF26 | 10 | License plate lamps |
| IF27 | 10 | Reversing lamps |
| IF28 | 10 | Stop light switch |
| IF30 | 20 | Windshield wipers |
| IF32 | 10 | Airbag system (SRS) |
| IF33 | 15 | Engine Control Module (ECM) |
| IF34 | 10 | Anti-lock Braking System (ABS) |
| IF35 | 10 | Anti-theft alarm |
| Relays | ||
| IR01 | Rear fog lamps relay | |
| IR02 | Heated rear window relay | |
| IR03 | Engine cooling fan relay | |
| IRF04 | Rear wiper relay | |
| IR05 | Instrument cluster relay | |
| IR06 | Right position lamps relay | |
| IR08 | Left position lamps relay | |
| IR09 | License plate lamps relay | |
Engine Compartment
The fuse box is located on the left side of the engine compartment.
General layout.
| Diagram | ||
|---|---|---|
|
||
| No. | Rating (A) | Protected Component / Circuit |
| EF01 | 30 | Power seat adjustment |
| EF02 | 60 | Alternator / Generator circuit |
| EF03 | 25 | ABS pump |
| EF04 | 40 | ABS main power supply |
| EF06 | 15 | Front fog lamps |
| EF07 | 10 | Left headlamp |
| EF08 | 10 | Right headlamp |
| EF09 | 10 | A/C compressor clutch |
| EF10 | 30 | Cooling fan (high speed) |
| EF11 | 30 | Cooling fan (low speed) |
| EF14 | 30 | Ignition switch (AM2) |
| EF16 | 10 | Starter signal / ECM |
| EF17 | 15 | Horn |
| EF18 | 30 | Ignition switch (AM1) |
| EF21 | 15 | Fuel injectors |
| EF22 | 15 | Ignition coils |
| EF24 | 30 | Main battery feed |
| EF25 | 15 | Fuel pump |
| EF26 | 10 | Right low-beam headlamp |
| EF27 | 10 | Left low-beam headlamp |
| EF29 | 30 | Starter motor |
| Relays | ||
| ER01 | Front fog lamps relay | |
| ER02 | Headlamps relay | |
| ER03 | Starter motor relay | |
| ER04 | A/C compressor relay | |
| ER05 | Engine cooling fan relay (high speed) | |
| ER06 | Engine cooling fan relay (low speed) | |
| ER07 | Engine cooling fan relay (high speed) | |
| ER08 | Horn relay | |
| ER09 | Starter main relay | |
| ER10 | Fuel pump relay | |
| ER11 | Low-beam headlamps relay | |
